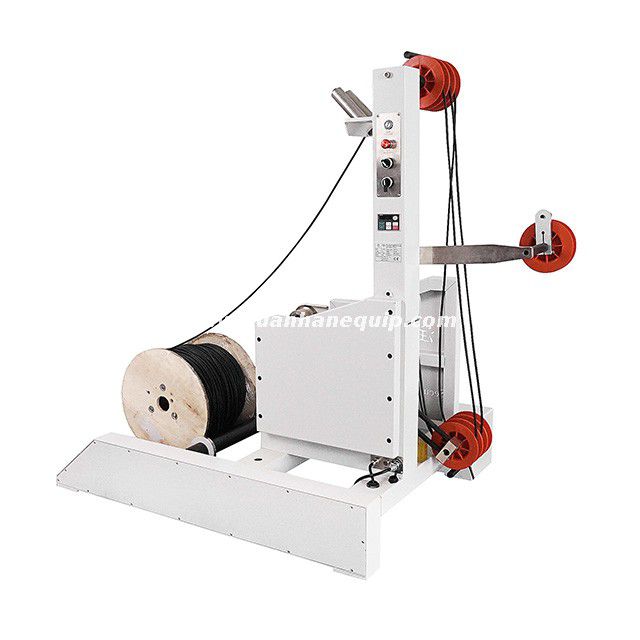

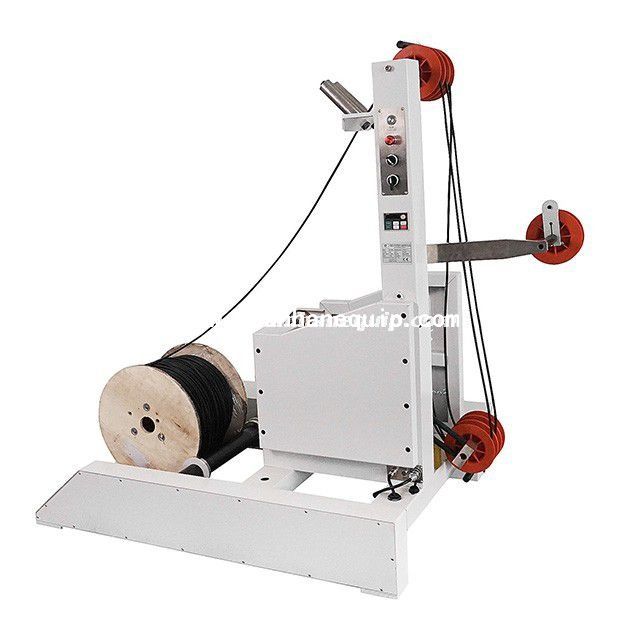

Automatic Wire Feeder MachineAutomatic Wire Feeder Machine

YH-680W automatic wire feeder machine delivers the wire feeding results you need for maximizing automated wire harness processing productivity and quality. Its maximum feeding speed is 70 m/min, and the maximum processing wire diameter is 16mm.

  • YH-680W
  • Yuanhan
Share to:

○ This fully automatic wire feeder eliminates the trouble of manual wire feeding. It is suitable for various wires and cables.

○ Main body material: welded with high quality national standard rectangular tube, the structure is firm and the appearance is beautiful

○ Maximum feeding speed is 70 m/min, and maximum wire diameter is 16mm

○ Coil size: 300-700mm diameter (customer needs to provide specific coil size)

○ Wire clamp: adaptive active wheel, maximum width 680mm

○ Maximum coil weight: 200KG

Model YH-680W
Voltage 220V
Main body material high quality national standard rectangular tube
Take off power

0.55kw domestic brand geared motor with vector inverter, inverter control line speed,

maximum line speed 70m/min, maximum wire diameter 16mm

Cable lift Manual handling of the reel
Coil size

300-700mm diameter (customer needs to provide specific coil size)

Coil clamping Adaptive drive wheel with a maximum width of 680mm
Max coil weight 200KG

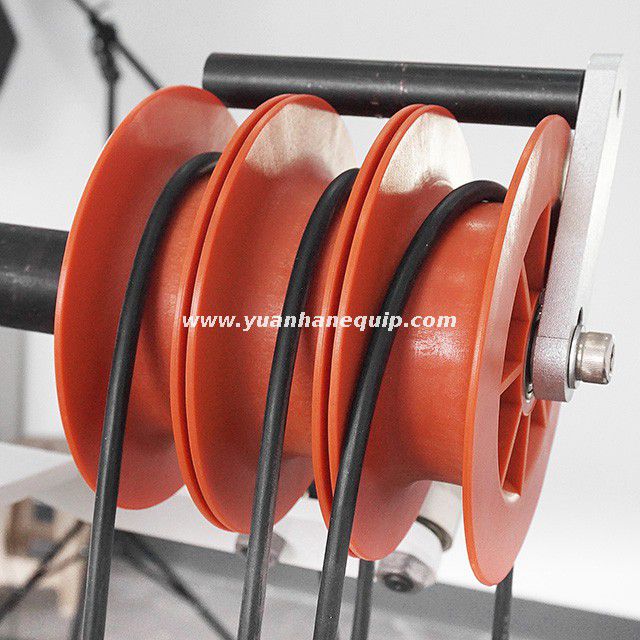

Tension wheel

The tension wheel is divided into the upper fixed wheel set (3 pcs) and the lower moving

wheel set (2 pcs), and the tension wheel diameter is 140mm.

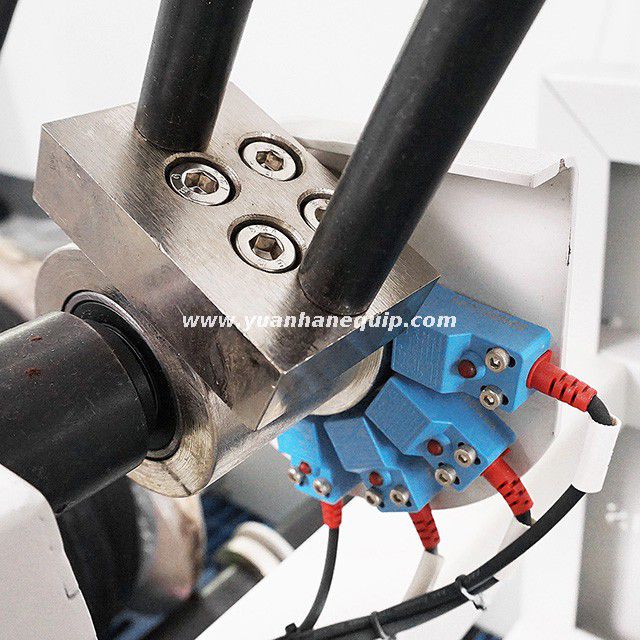

When the computer wire stripper works, the tension wheel moves accordingly,

and the potentiometer rotates through the sprocket, and the potentiometer feeds back

the signal to the inverter to control the speed of the pay-off motor, thereby controlling

the speed of the line to be synchronized with the computer stripping machine.

Tension adjustment

Increase or decrease the weight on the chain to adjust the tension of the cable


1,260*1,110*750mm (L*W*H)

Weight 180KG
