Automatic Cable and Wire Labeling Machines

Views: 464 Author: Site Editor Publish Time: Origin: Site

Cable and wire labeling is critical in the identification, assembly and repair of electrical control panels, wire harnesses, and data/telecommunications systems. An automated wire harness labeling machine is a must have equipment to save time and labor.

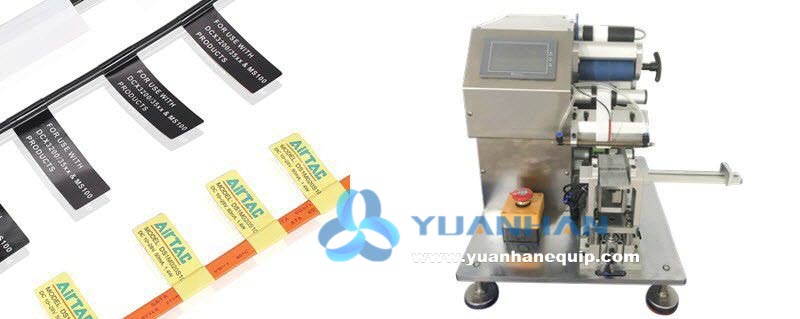

Automatic Label Wrap-around Machine for Wire and Cable

Model: ZCUT-560 / AL-60C

This wire and cable labeling machine is a new type of patented automatic equipment for attaching the label film on the bottom paper to the cable. It is suitable for headphone wire labeling, power cord labeling, light soldering labeling, cable labeling, air tube labeling, and USB cable labeling.


Features

  • A newly developed intelligent automation equipment for wire and plug power line labeling

  • Mainly used for bar code labels, warning labels, description labels, etc.

  • Can be used to label power line, data line, DC power line and more for laptop, desktop computer, printer, digital camera, camera, PDA, mobile phone and other devices

Automatic Label Wrap-around Machine for Wire and Cable

Specifications

Model ZCUT-560 / AL-60C
Labeling speed 1200 pcs/hour or more, depending on the label size and operating speed
Labeling accuracy ±0.2mm
Winding range 4mm or more in diameter
Applicable label range Width 5~50(mm) Length 20~100(mm)
Weight 40KG
Dimensions 760×440×270(mm)


Operation video of Automatic Label Wrap-around Machine for Wire and Cable

Learn more about Automatic Label Wrap-around Machine for Wire and Cable



Wire Harness Flag Label Taping Machine

Model: ZCUT-330

This wire and cable labeling machine is a new type of patented automatic equipment for attaching the label film on the bottom paper to the cable. It is suitable for headphone wire labeling, power cord labeling, light soldering labeling, cable labeling, air tube labeling, and USB cable labeling.

Wire Harness Flag Label Taping Machine

Features

  • This machine is a new type of patented automatic equipment for attaching the label film on the bottom paper to the cable. It is suitable for cable labeling of various specifications.

  • Applicable labels: self-adhesive labels, self-adhesive films, electronic supervision codes, barcodes, etc.

  • Application examples: headphone wire labeling, power cord labeling, light soldering labeling, cable labeling, air tube labeling, USB cable labeling, etc.

  • The labeling effect is good, the operation is convenient, and the material belt is easy to change.

  • High labeling efficiency and accurate labeling


Operation video of Wire Harness Flag Label Taping Machine


Specifications

Model ZCUT-330
Labeling accuracy ±0.30mm
Winding range Normal min 4mm(1-3mm customizable)
Applicable label range

Width: 8-65mm;

Length:40-165mm (out of range can be customized)

Weight 65kg
Dimensions 650*600*670mm
Labeling speed 1000-1200 pcs/h depending on the size of the label and the speed of manual operation

Learn more about Wire Harness Flag Label Taping Machine
