Automatic Cable Middle Stripping Machine, Wire Cutting and Middle Partial Stripping Machine

Views: 16 Author: Site Editor Publish Time: Origin: Site

This automatic cable middle stripping and cutting machine is mainly used to process cables in the automotive industry, sensor industry, power industry, photovoltaic industry, electric control cabinets and battery boxes. The entire coil of wire can be stripped at both ends and in the middle according to the required length, without damaging the outer skin and the conductor.

Model: YH-ZBJ

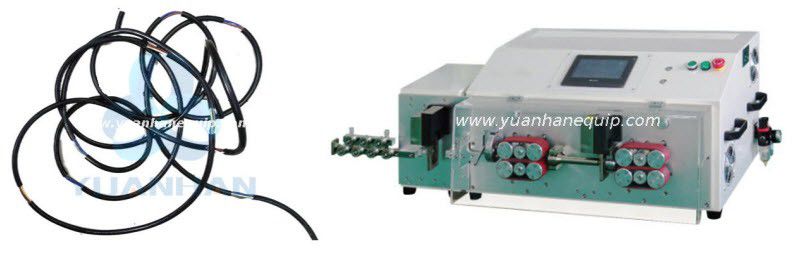

Automatic Cable Middle Stripping Machine

Features

  • This machine is mainly used to process cables in the automotive industry, sensor industry, power industry, photovoltaic industry, electric control cabinets and battery boxes. The entire coil of wire can be stripped at both ends and in the middle according to the required length, without damaging the outer skin and the conductor.

  • This machine supports multiple working modes, long wire, short wire, sheathed wire and multi-segment stripping function. One machine can complete the stripping requirements of a variety of wires.

  • Display mode: touch screen display interface, can switch between Chinese and English.

  • This machine adopts PLC control system to send pulses to improve the cutting precision.

Contact us: sales@yuanhanequip.com


Operation video of the cable middle stripping machine


Specifications

Model YH-ZBJ
Stripping range 4-35 mm2/4-50 mm2
Cutting length 0.1-99999.99mm
Length accuracy ≤0.2%mm
Stripping length 1-200mm at the head of the wire, 1-100mm at the tail of the wire
Drive mode 8-wheel independent drive
Output 1000-15000 pcs/h (depending on the length and size of the wire)
Power supply 220V 50HZ
Motor power 0.75KW
Storage program 0-99 sets of cable processing data
Blade material imported high-speed steel
Catheter diameter Φ6-18mm
Maximum peeling diameter 16mm
Air pressure 0.2-0.6mpa
Number of peeling layers 3 layers
Weight 115kg
Dimensions 800 x 650 x 450mm
×
