How to Strip Large Gauge Wires? Strip Large Wires Machine

Views: 703 Author: Site Editor Publish Time: Origin: Site

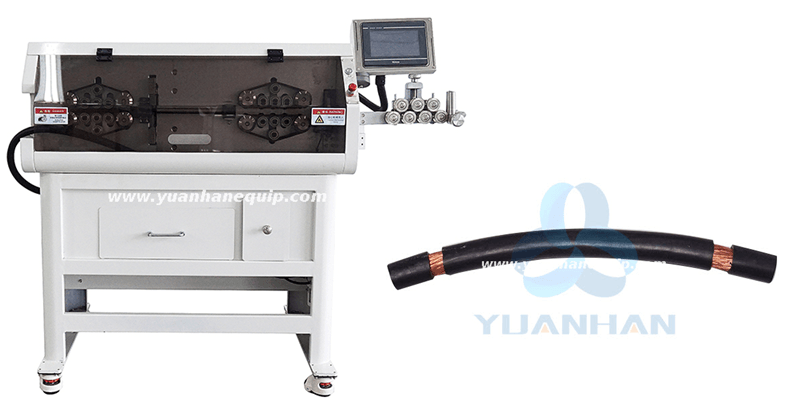

In this post, you will learn how to easily cut and strip heavy gauge wire with our fully automatic cable cutting and stripping machine YH-8070. The YH-8070 is a fully automatic large gauge cable cutting and stripping machine, which is suitable for the processing of large power cables, sheathed wires, soft and hard wires. It can cut and strip the insulation at both ends, and can also carry out multi-level stripping processing at the same time. Stripping sizes: 10-70 square mm. Cutting lengths: 0.1-99999.9 mm.

Model: YH-8070

How to strip large gauge wires?

Features

  • This machine is a new type of cable processing equipment controlled by microcomputer. It is mainly used in the automotive industry, power cable, electric control cabinet, battery box cable, new energy vehicle wiring harness, charging pile harness, charging gun wiring harness, BV hard wire, and BVR soft wire

  • Cutting length: 0.1-99999.9mm; Stripping wire sizes: 10-70 mm2

  • It can set the length of the wire as needed, set the head peeling and tail peeling, which greatly improves the efficiency

  • Automatically cut and strip the insulation at both ends, and can also carry out multi-level stripping processing at the same time

  • Industrial grade control chip with high-precision motor and driver, enabling the machine to operate at high speed for a long time

  • Using controller control, touch screen operation mode, can save 100 sets of stripping procedures

  • Can easily process cables up to 70 Sq mm and strong power is the guarantee to improve the efficiency of work

  • This machine has strong functions, and it has multiple ports reserved for the input and output signals of some auxiliary equipment

  • Auxiliary equipment: automatic wire feeder, receiver, robot, winding machine, etc.

Contact us: sales@yuanhanequip.com


Operation video of the large gauge wire cutting stripping machine


Technical Data

Model YH-8070
Display mode 7 inch real color touch screen
Function wire cutting and stripping
Head stripping RV cable is up to 120mm, and sheathed wire is up to 500mm
Tail stripping up to 260mm
Cable types PVC cables, sheathed wires, etc.
Stripping size 10-70 mm2
Cutting length 0.1-99999.9mm
Cutting tolerance within 0.002*L(L=cutting length)
Max diameter Φ25
Blades material imported high speed steel
Capacity 1800 PCS/h
Driving mode 32 wheel drive (silent hybrid stepping motor, servo tool holder)
Feeding method Feeding with belt, the cable has no indentation
Remark The machine can be customized for processing special cables, and the sample cable should be sent to us for test


×
