Kunshan Yuanhan Electronic Equipment Co., Ltd.

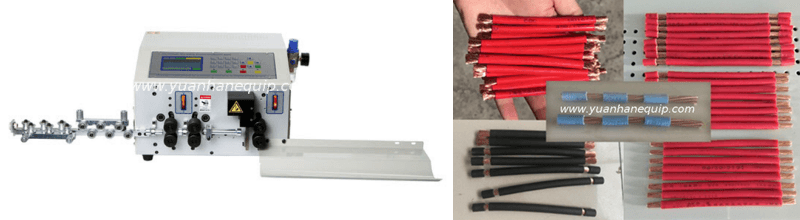

Automatic Electrical Wire Cutting and Stripping Machine

Views: 8 Author: Site Editor Publish Time: Origin: Site

This Automatic Electrical Wire Cutting and Stripping Machine is suitable for peeling PVC cables, Teflon cables, silicone wires, fiberglass wires, and much more. It is widely used in wire processing of various industries such as electronics industry, automobile and motorcycle parts industry, electrical appliances, motors, lamps and toys.Cutting length: 1-100000 mm, stripping length: 0-100 mm. Available wire sizes: 0.3-25 sq mm.

Automatic Electrical Wire Cutting and Stripping Machine

Features

  • This large cable stripping machine integrates electromechanical and microcomputer, and is a fully automated CNC equipment that introduces advanced technologies from Japan and Taiwan

  • This machine is widely used in wire processing of various industries such as electronics industry, automobile and motorcycle parts industry, electrical appliances, motors, lamps and toys

  • Suitable for stripping PVC cables, Teflon cables, silicone wires, fiberglass wires, etc.

  • LCD screen, simple operation, convenient maintenance, stable performance, fast speed and high precision

  • Wire length can be set freely according to customer request

  • Cutting Length: 1-100000 mm; Stripping length: 0-100 mm; Available wire sizes: 0.3-25 sq mm

  • Drive mode: 6-wheel drive

  • It can also cut flat cables, jacket cables, power cables, cable conduct and more

Contact us: sales@yuanhanequip.com


Operation video of the Automatic Electrical Wire Cutting and Stripping Machine


Technical Data

Model YH-BMAX1
Input Voltage AC220/50HZ
Power 800W
Cutting Length 1-100000mm
Stripping length

head: 0-100mm

tail: 0-100mm

Cutting Tolerances ± (0.0001xL)mm
Middle stripping cutting section 16
Available wire size 0.3-25mm2
OD of wire ¢13
Applicable wire PVC, Teflon, glass wire, multi-strand steel wire
Tool material Imported high speed steel
Stripping speed 4000-5000 (L=100MMpcs/hour)
Drive mode 6-wheel drive


×
