Automatic USB Connector Soldering Machine

Views: 364 Author: Site Editor Publish Time: Origin: Site

The automatic USB connector soldering machine adopts a vibration plate to feed loose USB connectors automatically. The worker only needs to simply place the cable into certain working area, then the machine will automatically weld USB connectors to the cable. The USB connector soldering machine is suitable for welding the following types of USB plugs: USB A/M. USB A/F, MICRO USB, MINI USB, MINI5PIN, MICRO5PIN, etc.

Model: YH-USB

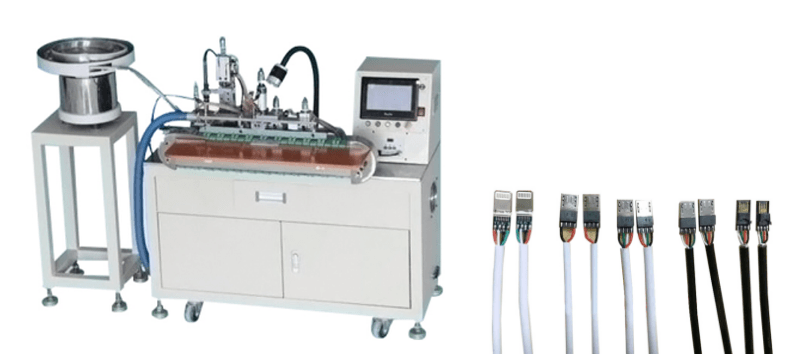

Automatic USB Connector Soldering Machine

Features

  • Applicable USB plugs: USB A/M. USB A/F, MICRO USB, MINI USB, MINI5PIN, MICRO5PIN, etc.

  • Adopting a vibration plate to feed loose USB connectors automatically

  • Compact structure, fast welding positioning and high precision

  • Using high-power soldering station, warming rapidly

  • High accuracy control of temperature, and stable welding effect

Contact us for details: sales@yuanhanequip.com


Operation video of USB connector soldering machine

Technical Data

Model YH-USB
Function USB, MINI5PIN, MICRO5PIN auto tin welding
Starting power 1KW
Power supply single phase AC 220V 10A 50Hz
Drive type pneumatic
Control mode constant temperature
Starting power 1KW
Normal operating power 0.5KW
Applicable cables 28*1P+28*2C, 28*1P+24*2C

28*1P+26*2C, 28*1P+22*2C

28*1P+20*2C

Internal peeling length 0~20mm
Working pressure 0.5Mpa
Productivity 900~1200pcs/H
Dimension 1500*600*1300mm
Weight about 200kg
Customization available


×
