Wire Crimping and Housing Inserting Machine

Views: 471 Author: Site Editor Publish Time: Origin: Site

This fully automatic machine is able to process wire cutting, two ends peeling, single head crimping, single head tinning and housing inserting. Cutting length: 40-2000mm, stripping length: 0.5-10mm, applicable wire sizes: 0.8-2.0mm (28#-20#)

Model: YH-CJK07S

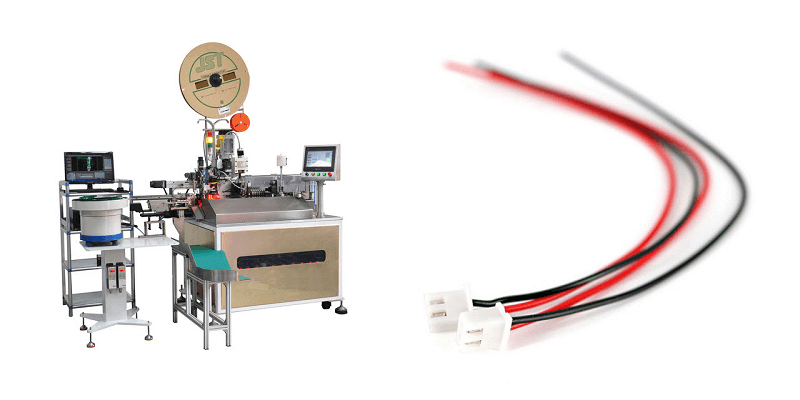

Single Head Terminal Pressing Tinning Housing Inserting Machine

Features

  • Wire cutting, two ends peeling, single head crimping, single head tinning and housing inserting

  • Cutting length: 40-2000mm; stripping length: 0.5-10mm

  • Applicable wire sizes: 0.8-2.0mm (28#-20#)

  • Equipped with detection device

Contact us for details: sales@yuanhanequip.com


Operation video of the cable single head housing inserting machine


Technical Data

Model YH-CJK07S
Function Wire cutting, stripping, crimping, tinning, twisting, housing inserting
Capacity 2200 pcs/hour (single head crimping/tinning/housing inserting 1.6 second/piece, L=100mm)
Wire Size outside diameter: 0.8-2.0mm (28#-20#)
Cutting Length 40-2000mm
Stripping Length 0.5-10mm
Pressure 2T
Power supply AC220V 50/60Hz
Air pressure 0.5-0.7Mpa
Dimension 1500L*1200W*1650H
Detector

1.Air pressure alarm

2.Defective product recognition

3.Terminal exist or not

4. Visual computer equipment


×
