Kunshan Yuanhan Electronic Equipment Co., Ltd.

Bubble Wrap Cutting Machine | Air Cushion Film Cutting Machine

Views: 535 Author: Site Editor Publish Time: Origin: Site

This fully automatic bubble wrap cutting machine is suitable for cutting of various tubular and banded materials, such as bubble film, plastic sheet, heat shrink tubes, small webbing, insulation paper, copper foil, copper sheet, nickel tape, cotton tape, etc.
Model: ZCUT-700S

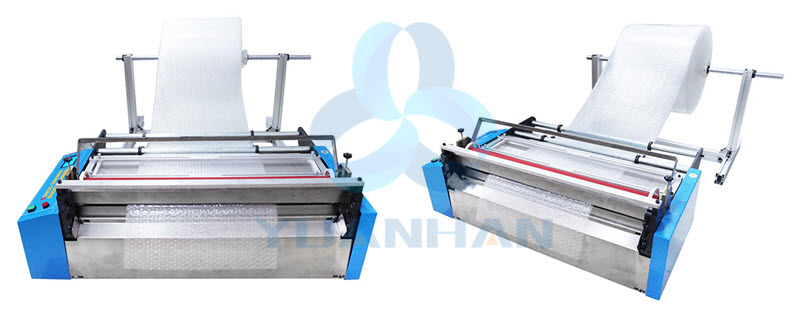

bubble wrap cutting machine
Features

○ High-speed feeding, microcomputer program control, accuracy up to 0.1mm;
○ High efficiency and high accuracy: up to 150 times per minute;
○ Cutting type: Cold cutting with a durable cold knife;
○ Fully automatic cutting of various tubular and banded materials;
○ Suitable for cutting heat shrink tubes, fiberglass tubes, teflon tubes, silicone tubes, yellow wax tubes, PVC tubes, PE tubes, plastic tubes, rubber hoses, wire ropes, cables and non-adhesive strip materials like belt loop, string, plastic zipper, elastic band, small webbing, insulation paper, copper foil, copper sheet, nickel tape, cotton tape, etc.
○ Automatic operation: It works automatically only by setting length and quantity;
○ Automatic stopper: It stops automatically if materials run out during operation;
○ Memory function: the previously set length, quantity and speed will not be erased even if power off & on;
○ We supply different models to fit your requests.
Contact us: sales@yuanhanequip.com

Operation video of bubble wrap cutting machine


Technical Data

Model ZCUT-700S
Cutting length (mm)  1mm-99999mm
Cutting accuracy (mm) 0.1mm
Max cutting width (mm) 1-700mm
Cutting speed(pcs/min)  150
Knife max temperature (℃) cold knife
 Voltage/ frequency(V/Hz) 110V/220V 50/60Hz
Rating Power(W)  2500W
Size(mm)  (L)650x(W)1010x(H)480
Weight 70kg
×
