Isolated Ferrules Crimping Machine

Views: 386 Author: Site Editor Publish Time: 2021-09-07 Origin: Site

This cable stripping and isolated ferrules crimping machine is suitable for crimping a variety of loose tubular terminals onto cables.

Model: YH-3PC

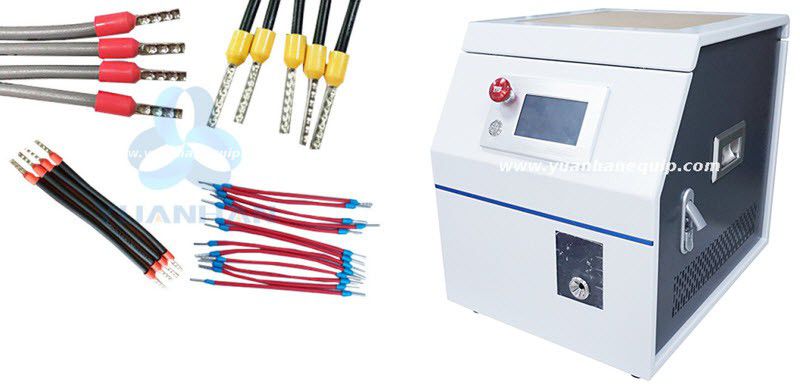

Cable Stripping and Isolated Ferrules Crimping Machine

Features

Suitable for crimping a variety of loose tubular terminals onto cables
Wire stripping and crimping can be finished at one time
The terminals are crimped on all four sides, no need to replace the crimping die
LCD display, automatically adjust stripping depth and length, as well as crimping height
Vibrating plate feeding, saving time and effort, replacing terminals is convenient and quick
Fully sealed stripping and crimping, safe and reliable

Operation video of the Cable Stripping and Isolated Ferrules Crimping Machine

Technical Data

Model	YH-3PC
Capacity	Cable Stripping, Terminal Inserting and Terminal Crimping are finished in 2.5 seconds
Applicable specs	0.5mm² – 2.5 mm²（Terminal conduit length should be less than 12mm) 4.0 mm²（Terminal conduit length should be less than 10mm）
Detect device	detect lack of terminals
Power	AC220V/50HZ single phase
Gas source	0.5-0.8Mpa (please use clean and dry air)
Dimensions	L450mm x W350mm x H425mm
Weight	about 40kg
