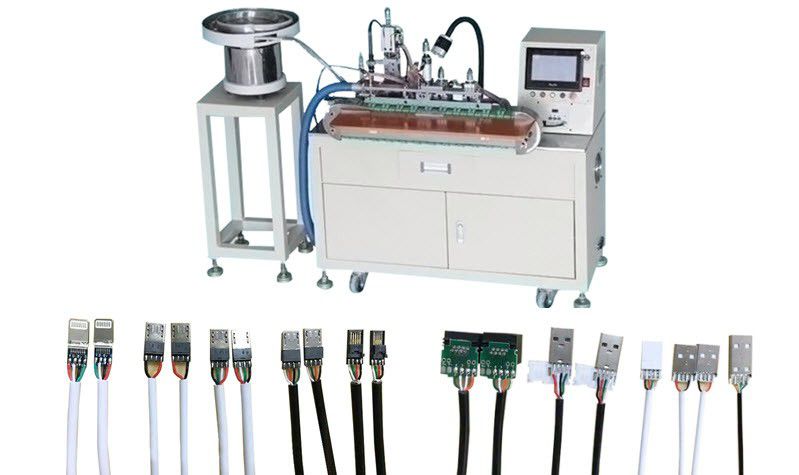

The automatic USB connector soldering machine adopts a vibration plate to feed loose USB connectors automatically. The worker only needs to simply place the cable into certain working area, then the machine will automatically weld USB connectors to the cable. The USB connector soldering machine is suitable for welding the following types of USB plugs: USB A/M. USB A/F, MICRO USB, MINI USB, MINI5PIN, MICRO5PIN, etc.
Applicable USB plugs: USB A/M. USB A/F, MICRO USB, MINI USB, MINI5PIN, MICRO5PIN, etc.
Adopting a vibration plate to feed loose USB connectors automatically
Compact structure, fast welding positioning and high precision
Using high-power soldering station, warming rapidly
High accuracy control of temperature, and stable welding effect
Contact us for details: firstname.lastname@example.org
Operation video of USB Connector Welding Machine
|Function||USB, MINI5PIN, MICRO5PIN auto tin welding|
|Power supply||single phase AC 220V 10A 50Hz|
|Control mode||constant temperature|
|Normal operating power||0.5KW|
|Applicable cables||28*1P+28*2C, 28*1P+24*2C |
|Internal peeling length||0~20mm|
