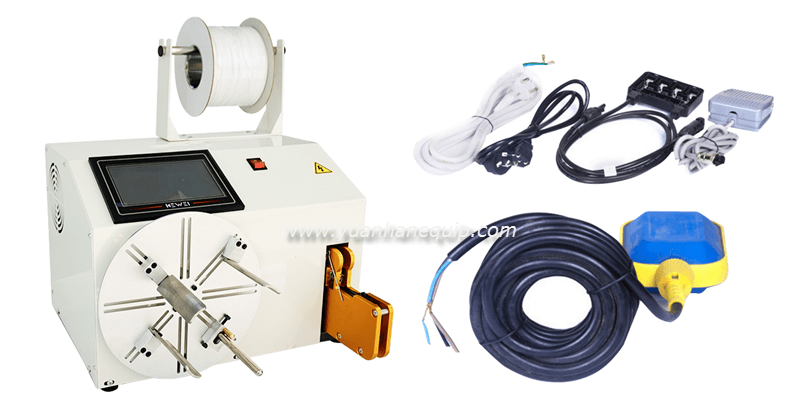

Semi Automatic Wire Twist Tie Machine

Views: 479 Author: Site Editor Publish Time: Origin: Site

This semi automatic wire twist tie machine is suitable for winding and tying USB cable, headphone cable, AC/DC power cable, network cable, telephone cable, audio/video cable, HDMI cable, etc. It can customize the number of coils, the number of ties and the length of the cable tie.

ModelYH-30A

Semi Automatic Wire Twist Tie Machine

Features

  • This semi automatic wire twist tie machine is suitable for winding and tying USB cable, headphone cable, AC/DC power cable, network cable, telephone cable, audio/video cable, HDMI cable, etc.

  • PLC program control, LCD text parameter setting, easy to operate

  • Using stepper motor, the worker only needs to put the wire on the winding port and step on the foot pedal once to start the automatic winding, and then put the winded wire at the tying port, and the machine can automatically tie the wire

  • This machine can customize the number of coils, the number of ties and the length of the cable tie

  • The motor is equipped with brake control, and the reel can be turned and stopped at a fixed point, which is very convenient for next operation

Contact us: sales@yuanhanequip.com


Operation video of the semi-automatic wire coil winding and twisting tie machine


Technical Data

Model YH-30A
Voltage AC 220V/110V 50Hz/60Hz
Power 80W
Winding diameter 50-200mm (adjustable)
Coil size 220mm
Winding speed 1-30 levels (adjustable)
Winding circle 1-999 circles (adjustable)
Twist bundle length 60-140mm (adjustable)
Binding diameter
φ5-40mm
Binding circle Adjustable (suggest 2-6 circles)
Twist speed 1-2 levels (suggest level 2)
Twist ties Encased iron core PE material
Twist Shape Round shape & long & 8 shape
Weight
30KG
Dimension
450x390x580mm (LxWxH)


×
