Kunshan Yuanhan Electronic Equipment Co., Ltd.

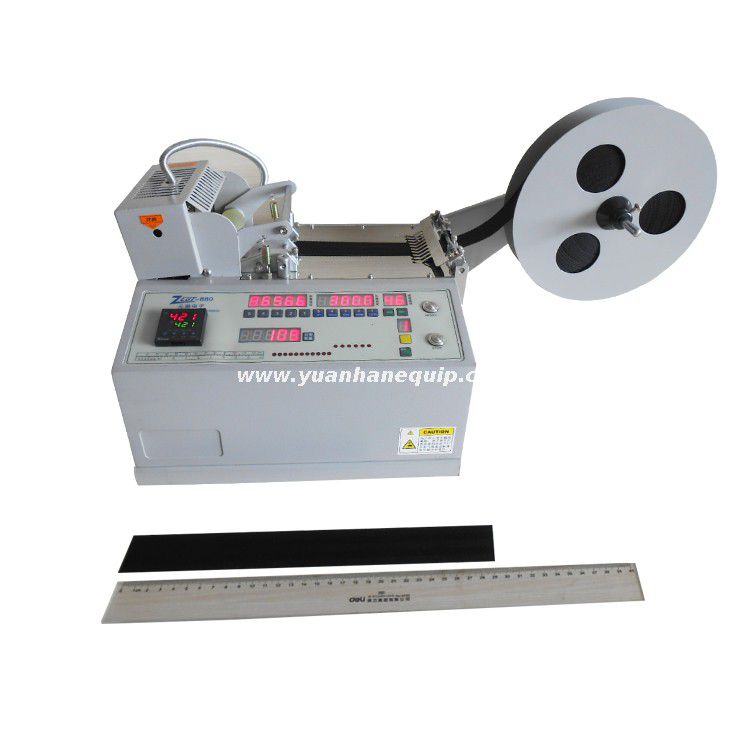

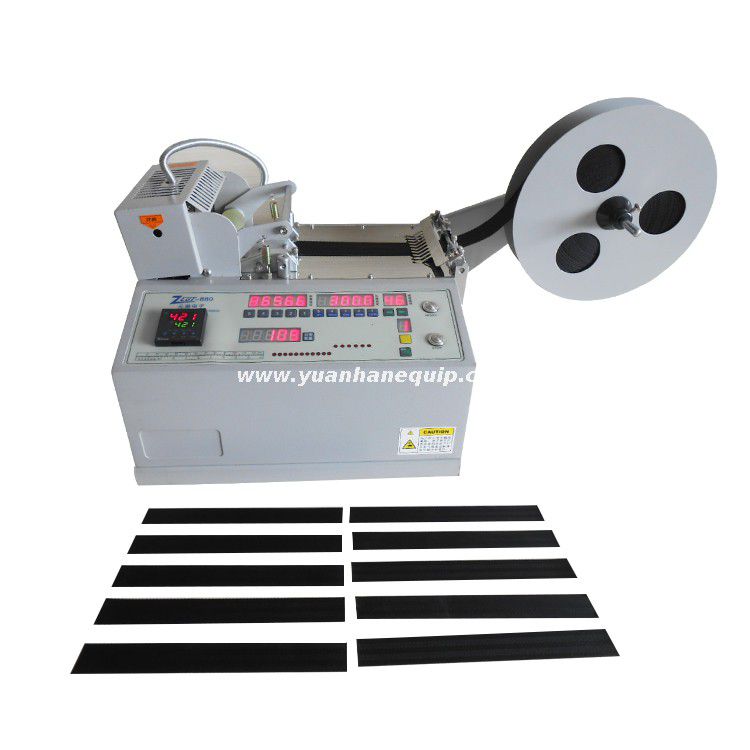

Automotive Seat Belt Webbing Cutting Machine

The car seat belt webbing cutting machine is able to cut seat belt, nylon fiber belt, rope belt, leather, nylon zipper, woven belt, VELCRO, luggage belt, etc. The cutting speed is up to 120 PCS/minute.

Model:
  • ZCUT-880
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • Simple operation, automatic cutting

  • High speed: up to 120pcs/min. (L=50mm)

  • High precision: every cut is monitored by stepper motor to ensure high accuracy

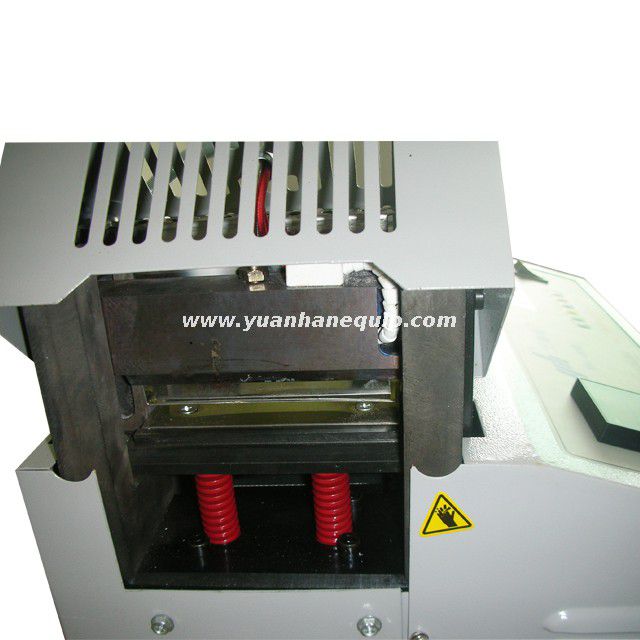

  • Flat cutting surface: the blade is made of high-quality imported steel to ensure the cutting surface is flat

  • Automatic operation: just set the length and quantity of cuts you need and the rest is done automatically

  • Memory function: automatically store the cutting length, quantity and speed before the switch is turned off

ModelZCUT-880
Cutting length10-9999mm
Max cutting width100mm
Cutting speed100-120 pcs/min
Power supply110V/220V 50/60Hz
Rating power0.5KW
Knife maximum temperture500
Dimension450*560*400





×
