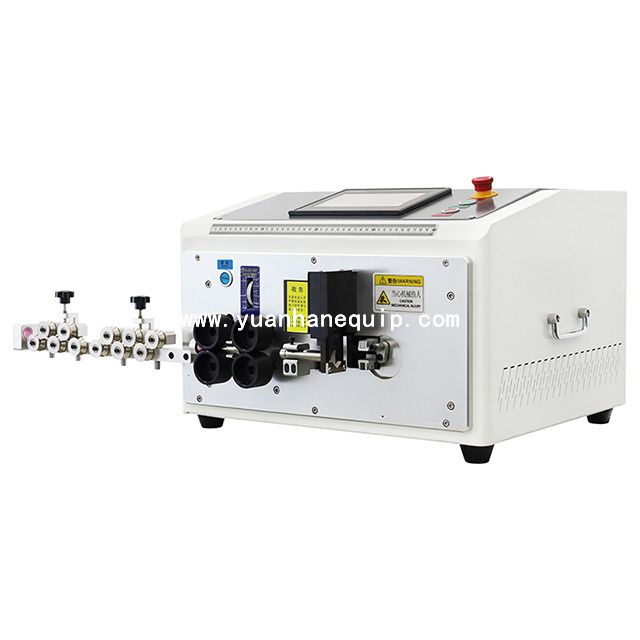

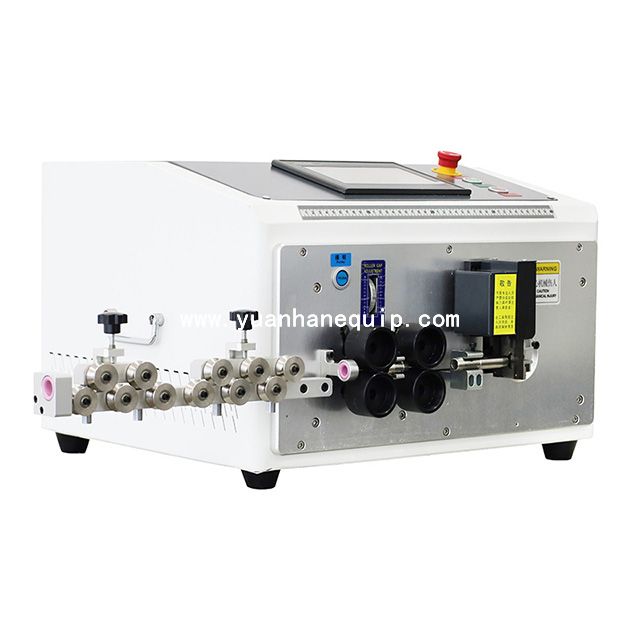

Automatic Wire and Cable Bender MachineAutomatic Wire and Cable Bender Machine

This wire cutting stripping and bending machine is suitable for processiing 1-16mm2 wires. It can strip both ends of the wire, and bend the wire into your required shape.

Model:
  • YH-ZW16
Brand:
  • Yuanhan
Share to:
Features
Specifications

○ This is a high performance wire cutting stripping and bending machine for processing 1-16mm2 wires and cables;

○ It can not only strip both ends of the wire, but also bend the wire into your requested angle;

○ The straightforward display provides information in the selected language about the current processing status, very visualized;

○ The machine is mainly suitable for wire harness processing of electronics, electrical appliances, toys, automobile fittings and other industries;

○ Affordable price and perfect working performance.

Model YH-ZW16
Features Wire cutting stripping and bending
Conductor cross-section 1-16mm2
Stripping length  0.1-100mm
Cutting length 1-100,000mm
Cutting tolerances ± (0.001xL)mm
Bending length Can be set

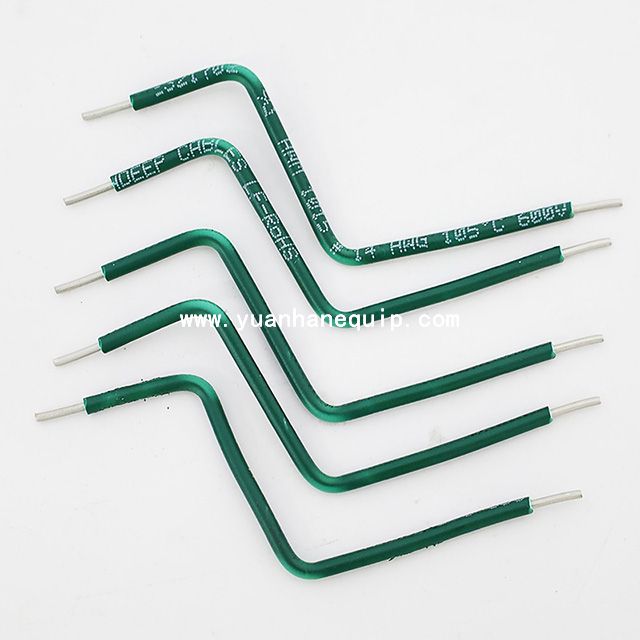

Bend shape/angle U shape, Z clockwise, counterclockwise bend, 30°, 45°, 60°, 90°
Production rate L=100mm, 2,000-3,000pcs/h
Power supply 110/220VAC, 50/60Hz
Power 600W
Conduit diameter Generally ⌀ 10mm, can be customized according to wire size
Display screen Chinese/English touch screen
Weight  55KG
Dimensions 53x53x40cm



×
