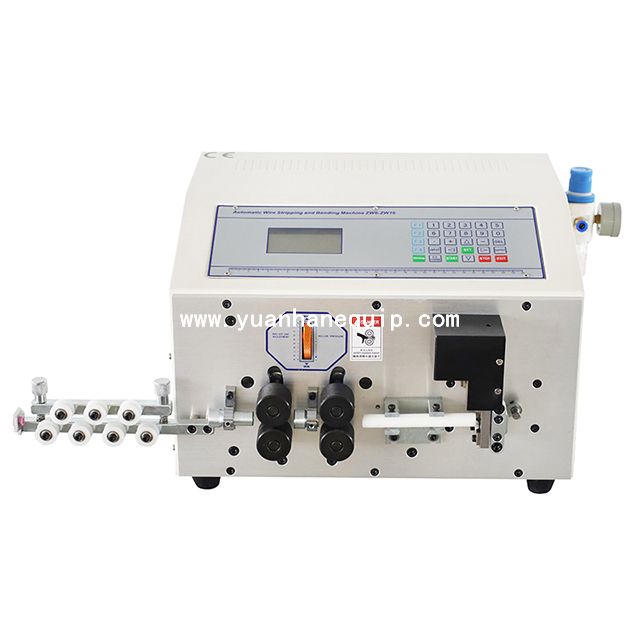

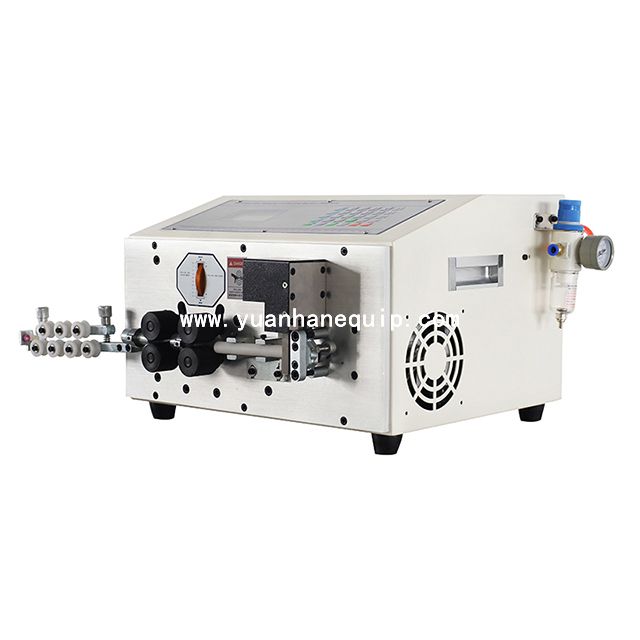

Wire Cutting Stripping and Bending Machine

Wire Cutting Stripping and Bending Machine

This high performance wire cutting stripping and bending machine can process a wide range of wires and cables. It can not only strip both ends of the wire, but also bend the wire into your requested angle. Cutting length: 1-99999 mm, stripping length: 0.1-100 mm, wire size: 1-25 sq mm.

Model:	YH-BZW
Brand:	Yuanhan

Inquire

Share to:

Features

Specifications

○ This is a high performance wire cutting stripping and bending machine for processing a wide range of wires and cables

○ Cutting length: 1-99999 mm; stripping length: 0.1-100 mm; applicable wire size: 1-25 sq mm

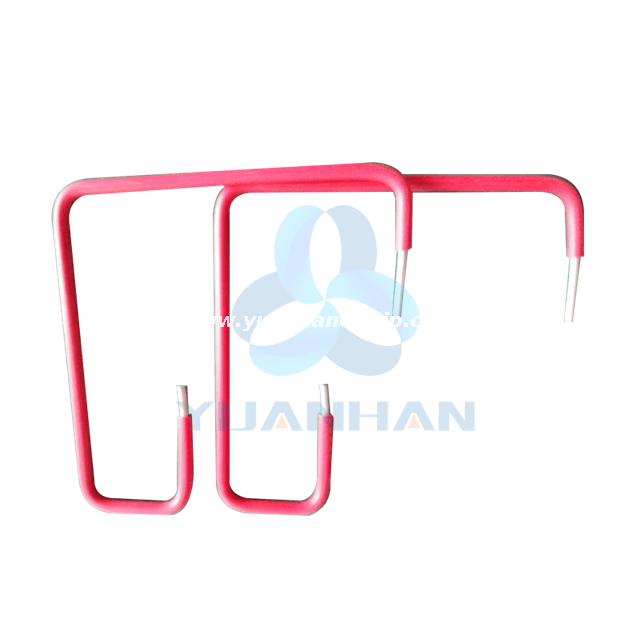

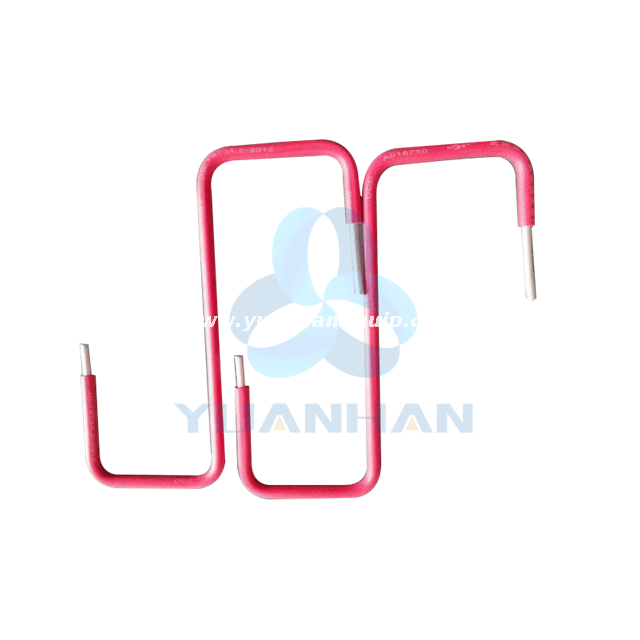

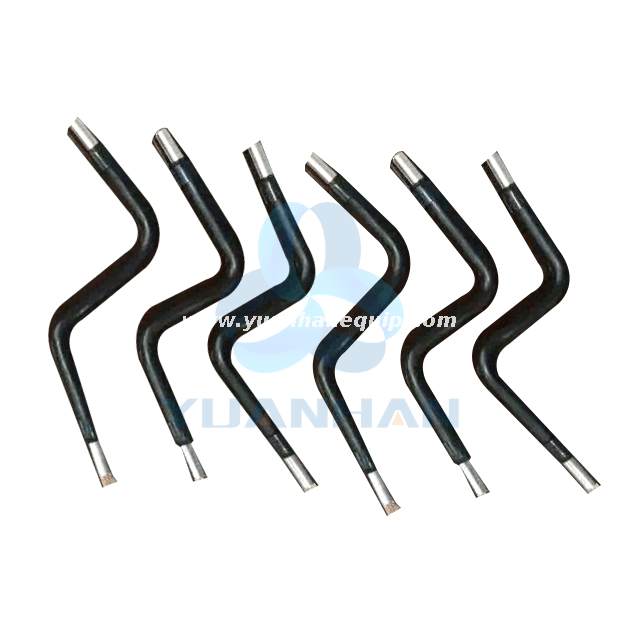

○ It can not only strip both ends of the wire, but also bend the wire into your requested angle

○ The straightforward display provides information in the selected language about the current processing status, very visualized

○ The machine is mainly suitable for wire harness processing of electronics, electrical appliances, toys, automobile fittings and other industries

○ Affordable price and perfect working performance

Model	YH-BZW
Type	Wire stripping and bending machine
Input Voltage	AC175V-250≤50/60HZ
Power	200W
Display method	240×128 blue screen LCD display
Cutting length	1mm-99999mm
Stripping length	0.1-100mm
Cutting tolerances	± (0.001xL)mm
Wire size	1-25mm2
Conduit diameter	10mm
Tool material	imported high speed steel
Stripping speed	800-2000pcs/hour
Drive method	PLC linkage click drive
