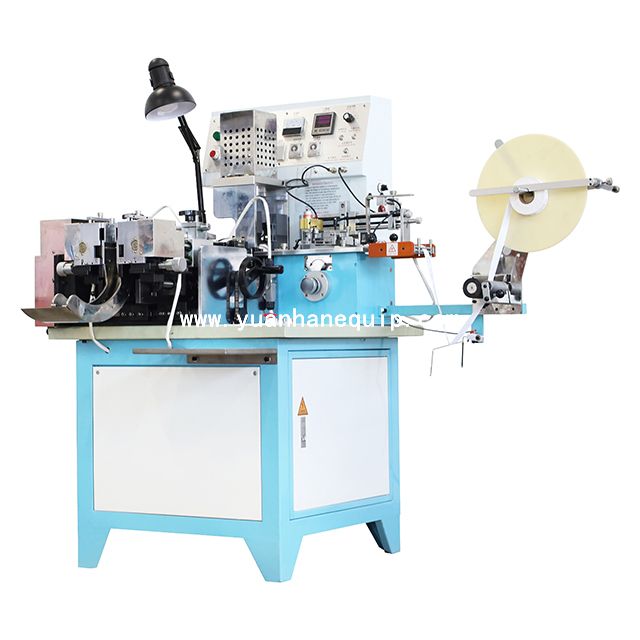

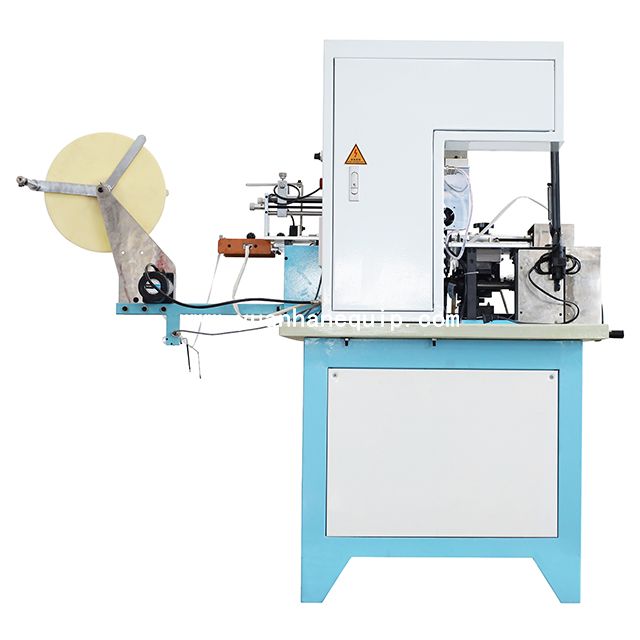

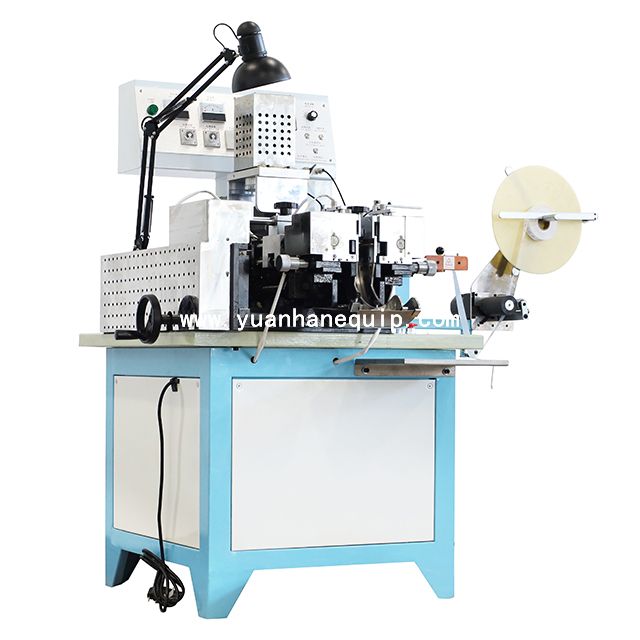

Clothing Label Cutting and Folding MachineClothing Label Cutting and Folding Machine

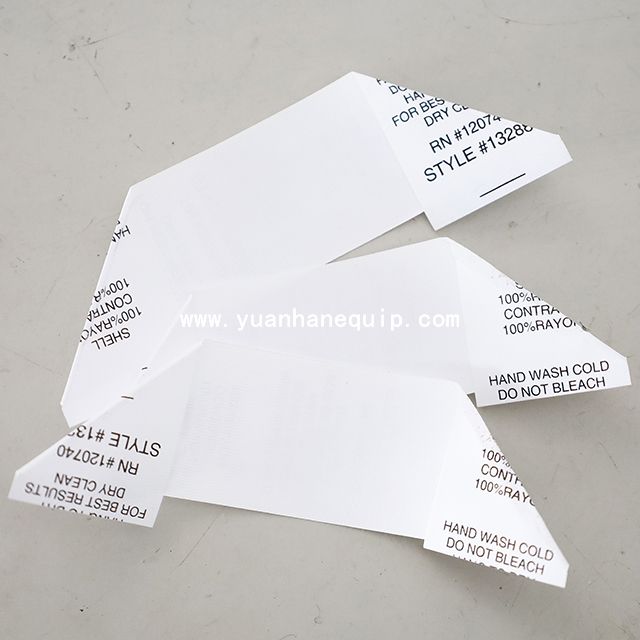

This machine can cut labels and fold them into four shapes, including both ends folding, hanging type folding (triangle folding), long and short folding, as well as center folding.

Model:
  • YH-3000/YH-6000
Brand:
  • Yuanhan
Share to:
Features
Specifications

○ This machine can cut labels and fold them into four shapes, including both ends folding, hanging type folding (triangle folding), long and short folding, as well as center folding.

○ It's easy and convenient to replace the mold even by only one operator.

○ It has excellent performance, especially for cutting soft material labels.

Model YH-3000 YH-6000

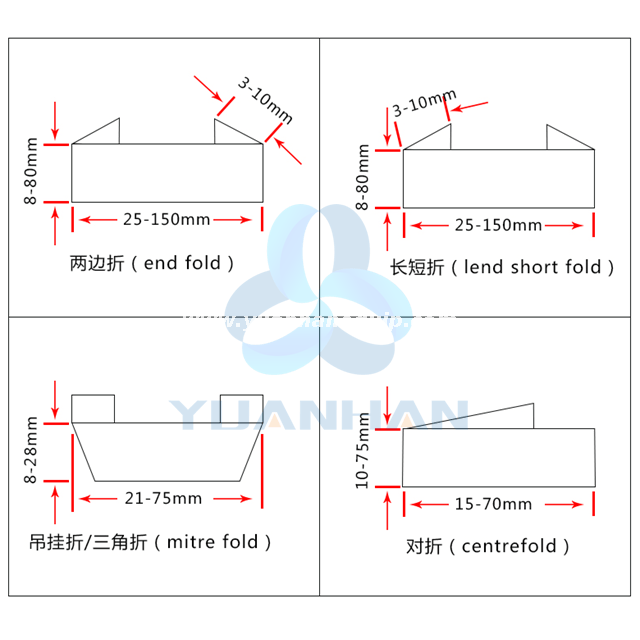

Folding types

both ends folding, hanging type folding (triangle folding),

long and short folding, center folding

both ends folding, hanging type folding (triangle folding),

long and short folding, center folding

Cutting/folding length 15-150mm 15-150mm
Cutting/folding width 8-80mm 8-80mm
Cutting method cold and hot cutting ultrasonic cutting
Capacity 200pcs/min (speed has no stage shifting) 200pcs/min (speed has no stage shifting)
Calculation indicator adjustable quantity calculation adjustable quantity calculation
Power supply/electricity consumption single phase 220V,50/60Hz; 3.3KwHz single phase 220V,50/60Hz; 3.3KwHz
Weight 350KG 350KG
Horsepower 1/2HP 1/2HP



×
