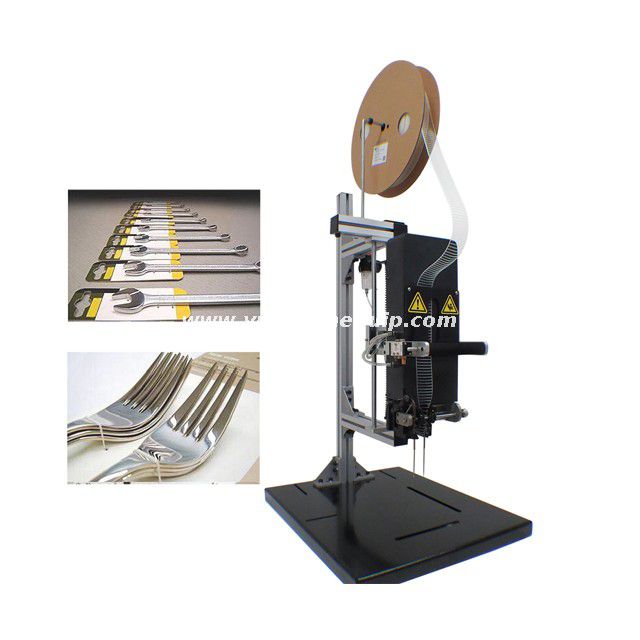

The elastic staple fastener machine is a flexible system secures items to flat card surfaces or multi-level card packaging designs. Replacing conventional manual packaging methods, the elastic staple fastening machine can help cut time and steps in packaging production. This, in turn, can help increase uptime, reduce operator workload, and reduce material costs.
The elastic staple system is used to replace the traditional packaging methods such as cable ties, paper ropes and iron wires, which can increase your packaging speed and production
Adjustable needle pitch range: 10-80MM
Effective needle height: 120MM
One binding action only takes 0.5 seconds

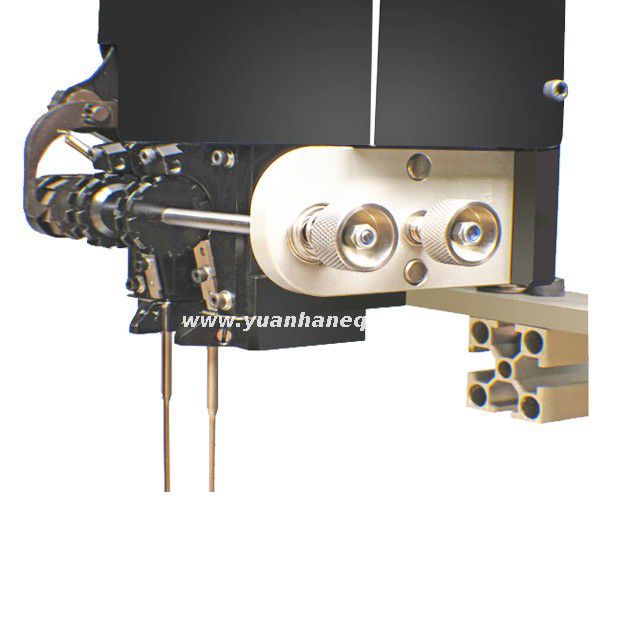

The stability and efficiency of this elastic staple fastener machine benefit from the smooth 3D dynamic modeling design and the precision machining of internal movement parts.
Our elastic staples are made of imported special polyurethane materials, which are safe and environmentally friendly and naturally degradable.
|Adjustable needle pitch range||10 MM-80 MM|
|Drive mode||Pneumatic(pedal version) free hands, more flexible|
|Standard needle length||100 MM|
|Standard length of thimble||165 MM|
|The blade configuration||Left/right universal blade|
|Effective needle length space||120 MM|
|Needle diameter||2.3 MM|
|The host weight||3.8 KG|
|Total weight||23.5 KG|
|Overall dimension (CM)||95 *48*60 (height * depth * width)|
|Aluminum frame||80*80 reinforced aluminum bracket|
|Table top||48*60 painted metal working face|
|Integral parts processing method||Precision machining/stainless steel, aluminum alloy|
|Machine configuration||Main engine head aluminum frame black lacquer work surface reel bracket|
