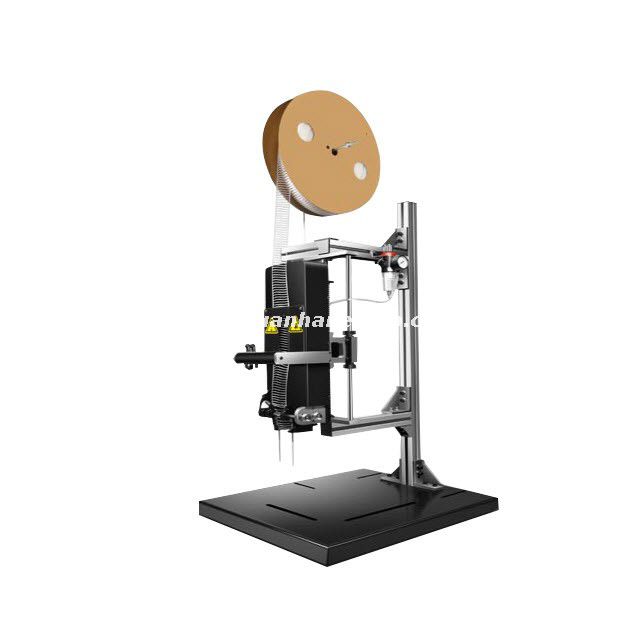

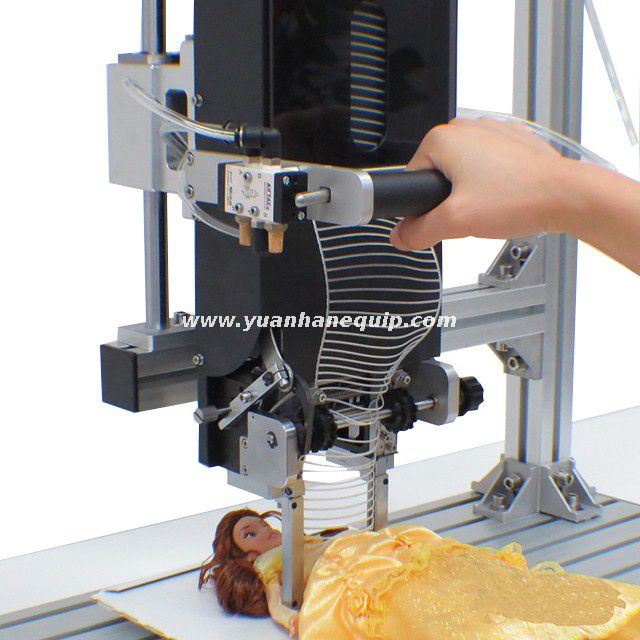

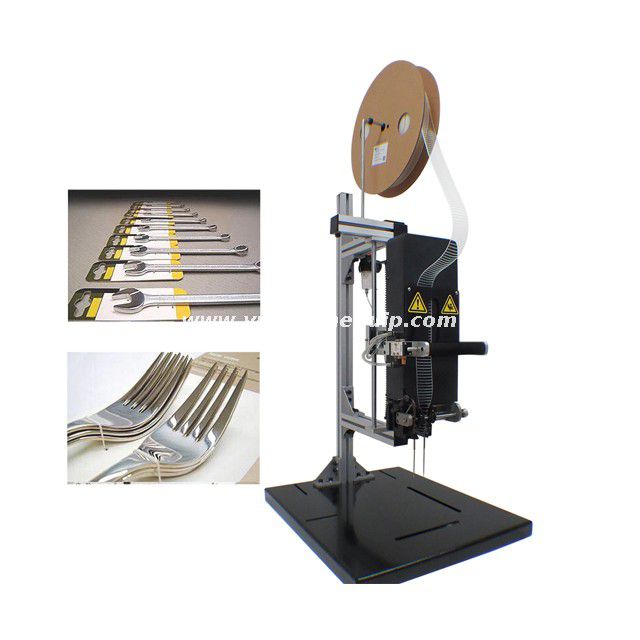

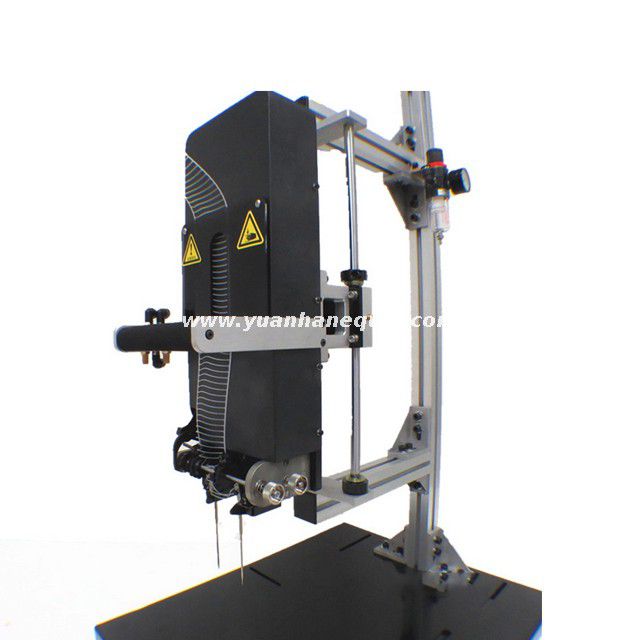

Staple Packaging Machine

The elastic staple system is a flexible system secures items to flat card surfaces or multi-level card packaging designs. Replacing conventional manual packaging methods, the elastic staple fastening machine can help cut time and steps in packaging production. This, in turn, can help increase uptime, reduce operator workload, and reduce material costs.

Model:	YH-21801M
Brand:	Yuanhan

Inquire

Share to:

Features

Specifications

The elastic staple system is used to replace the traditional packaging methods such as cable ties, paper ropes and iron wires, which can increase your packaging speed and production
Adjustable needle pitch range: 10-80MM
Effective needle height: 120MM
One binding action only takes 0.5 seconds
The stability and efficiency of this elastic staple fastener machine benefit from the smooth 3D dynamic modeling design and the precision machining of internal movement parts.
Our elastic staples are made of imported special polyurethane materials, which are safe and environmentally friendly and naturally degradable.

Model	YH-21801M
Adjustable needle pitch range	10 MM-80 MM
Drive mode	Pneumatic, actuated brake
Standard needle length	100 MM
Standard length of thimble	165 MM
The blade configuration	Left/right universal blade
Effective needle length	120 MM
Needle diameter	2.3 MM
The host weight	3.8 KG
Total weight	23.5 KG
Overall dimension (CM)	954860(height * depth * width)
Aluminum frame	80*80 reinforced aluminum bracket
Table top	48*60 painted metal working face
Integral parts processing method	Precision machining/stainless steel, aluminum alloy
Machine configuration	Main engine head, aluminum frame, black lacquer worktable, reel bracket
