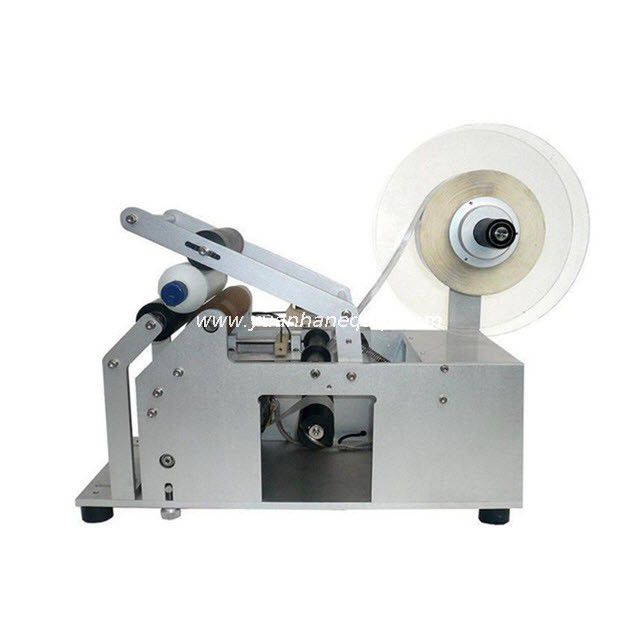

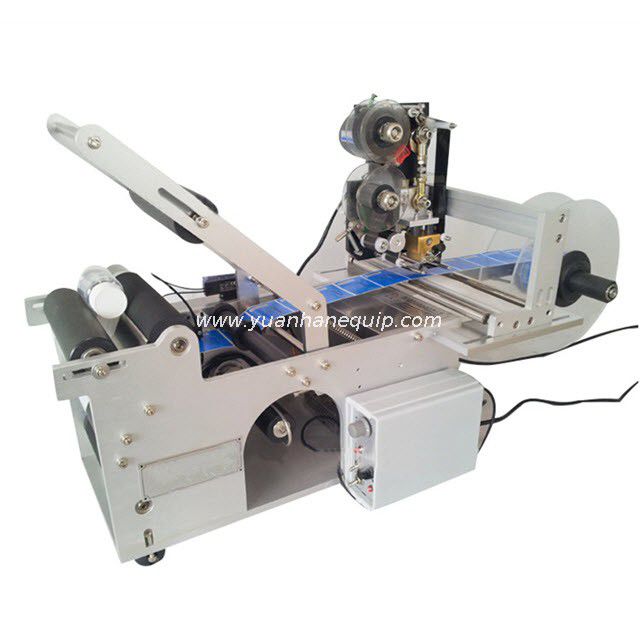

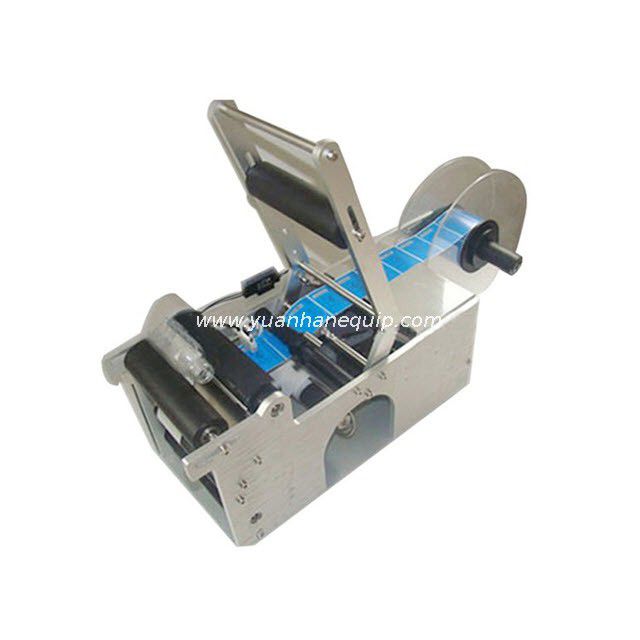

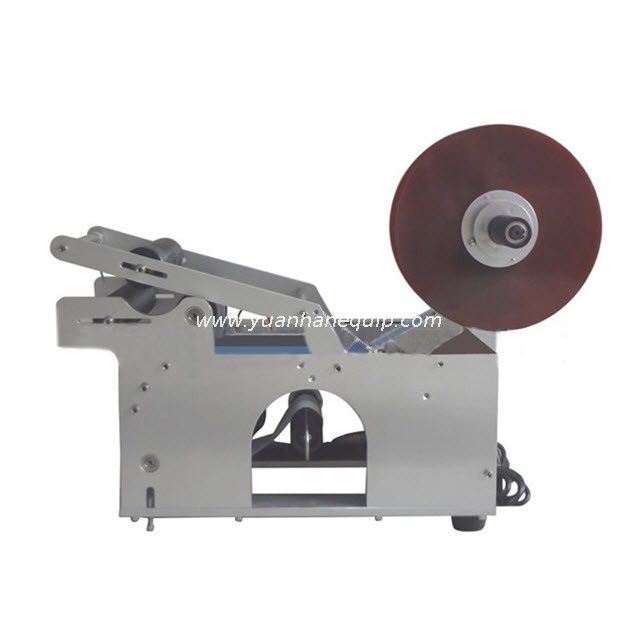

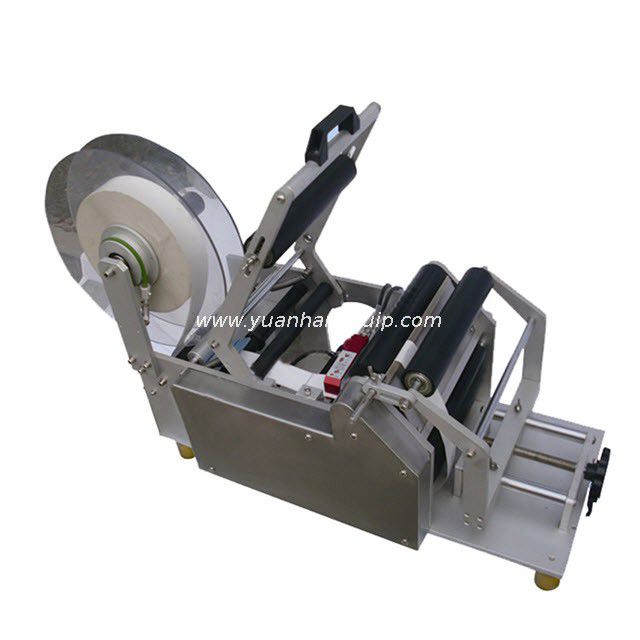

The semi-automatic round bottle labeling machine is suitable for apply labels onto round bottles, round cans, cylinders, etc.
Suitable for self-adhesive labeling of round bottles, round cans, cylinders, etc.
Suitable for round bottle labeling of PET bottles, plastic bottles, glass bottles, metal bottles, etc.
Widely used in cosmetics, beverages, food, medicine and other industries, greatly improving productivity and labeling quality.
Wide range of applications, can meet the cylindrical labeling of 25-100mm diameter range.
Special bottle labeling machines need to be modified and customized.
The labeling accuracy is high, and the deviation between the head and the end of the label is ≤±0.5mm.
Using a clever squeeze device to load, just put the workpiece and automate the labeling.
Card position adjustment, easy switching between different workpiece labels.
With synchronous belt traction, mechanical stability is greatly improved.
Desktop design, compact structure, small size and powerful.
Anodized aluminum alloy bracket and advanced computer white electric box, beautiful and generous.

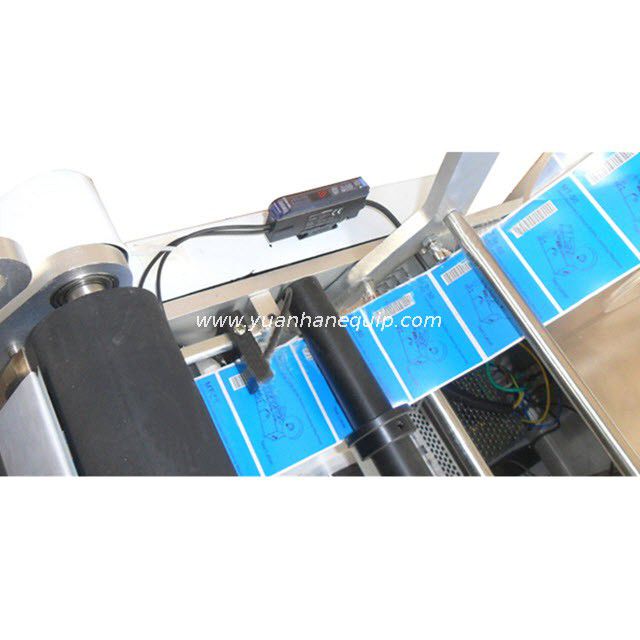

With advanced electric eyes, the detection sensitivity of objects and labels is high.
|Labeling accuracy||±0.5mm (excluding label workpiece error)|
25-50 pieces / minute
(depending on the size of the workpiece)
|Label outer diameter||≤250mm Roll inner diameter: 76mm|
|Roll inner diameter||76mm|
|Workpiece size||diameter 25-150mm (special can be customized)|
|Voltage||220V 50HZ 120W|
|Machine size||650 × 450 × 1000mm|
