Kunshan Yuanhan Electronic Equipment Co., Ltd.

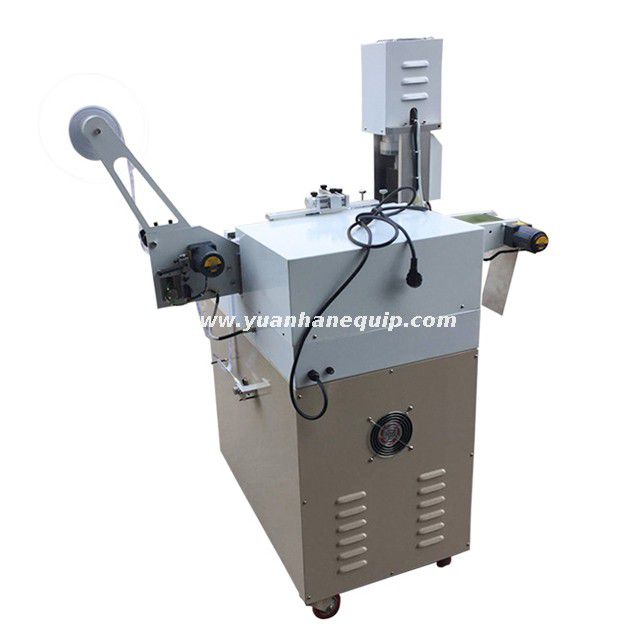

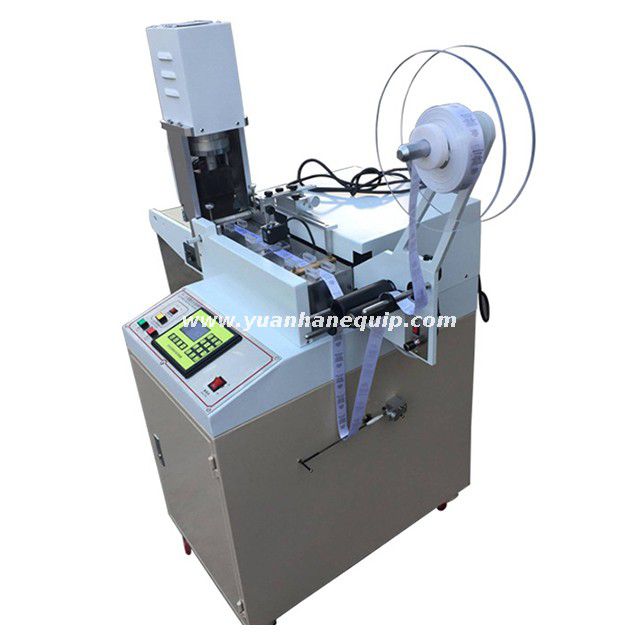

Ultrasonic Cloth Care Label Cutting Machine

This CNC ultrasonic cloth care label cutting machine combines traditional shearing with ultrasonic welding technology. When working with ultrasonic sounders, ultrasonic energy is transmitted to the welding head through the ultrasonic transducer and generates severe vibration and friction with the die, thereby achieving cutting purpose.

Model:
  • ZCUT-203
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • Ultrasonic technology makes the cutting incision soft and flat, non-burning, non-scattering, suitable for a variety of materials;

  • Imported photoelectric eye positioning is accurate and easy to operate;

  • Stable and scientific control system and program, high quality motor, speed up to 200pcs/min, multi-use, greatly improve production efficiency;

  • For different materials, various working modes can be switched at will: regular length cutting, precise positioning cutting, waste cutting and debugging cutting;

  • Practical auxiliary functions: eliminating static electricity at the discharge port effectively prevents the secondary shearing and overlapping of the material due to electrostatic adsorption. The indentation function is equivalent to the effect of folding, and the back tray is equipped with an automatic discharge function;

  • High quality and durable ultrasonic generator;

  • Simple and easy to learn control system to reduce the cost of learning;

  • Memory function: automatically store the parameters set before turning off the switch.

ModelZCUT-203
Cutting length1-99cm
Cutting width1-8.5cm
Cutting speed200pcs/min
Power supply220v 1.5kw
Net weight105KG
Size93L*65W*148H cm


×
