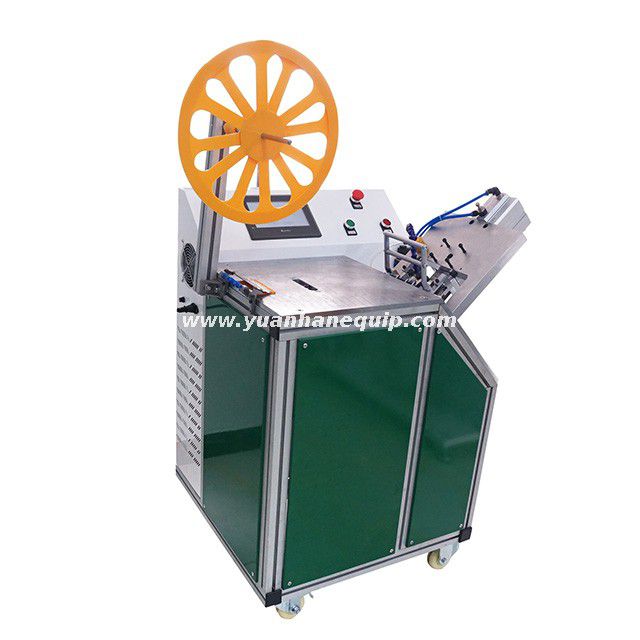

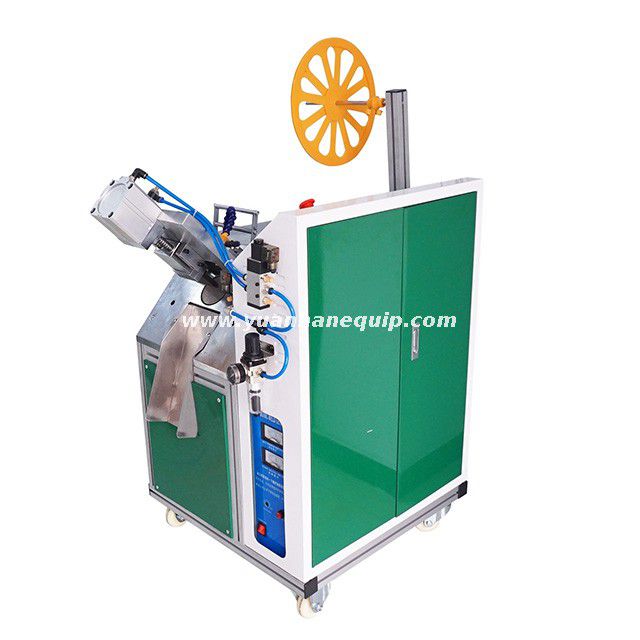

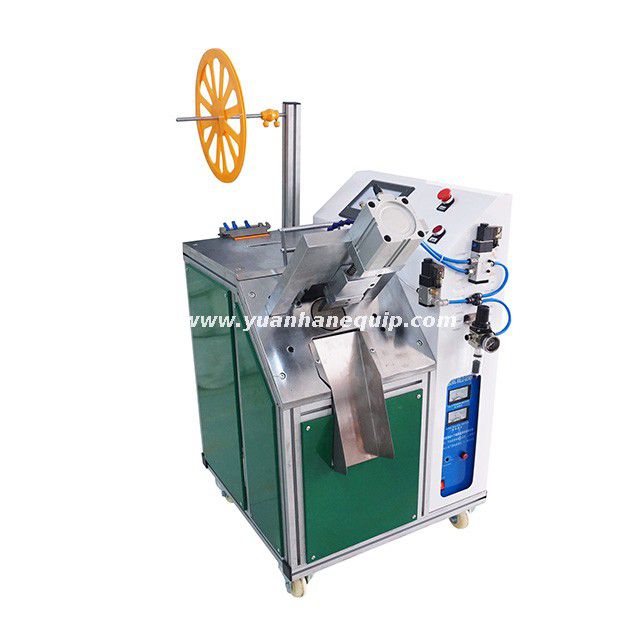

This ultrasonic cutting machine is suitable for cutting gift wrapping tapes, strips, silk ribbons, webbing, woven belts, etc.
Model:
|
|
Brand:
|
|
Easy to operate, no need to change the die
Servo motor drive, no noise
Speed: 120pcs/min
Using Swedish titanium steel knife: the cut is complete and smooth, no burrs, no loose edges, and the shearing effect is excellent.
PLC console, automatic feeding, computer counting, high precision, fast speed, and high efficiency, can cut multiple pieces at the same time.

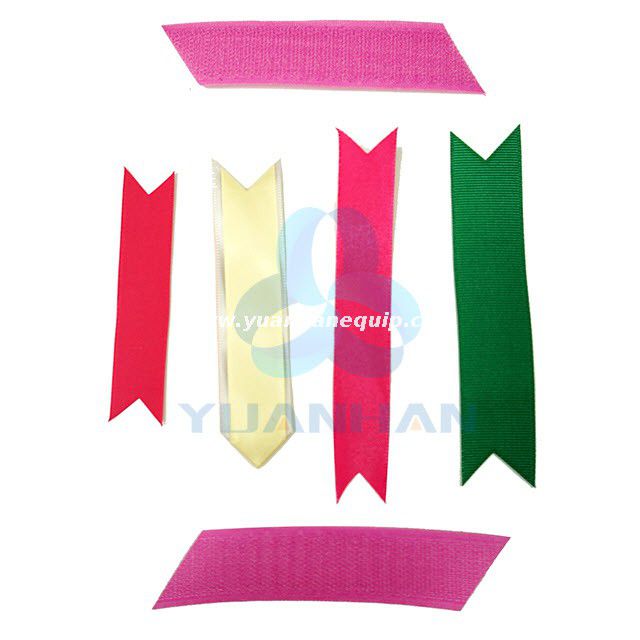

Suitable for cutting gift wrapping tapes, strips, ribbons, etc.

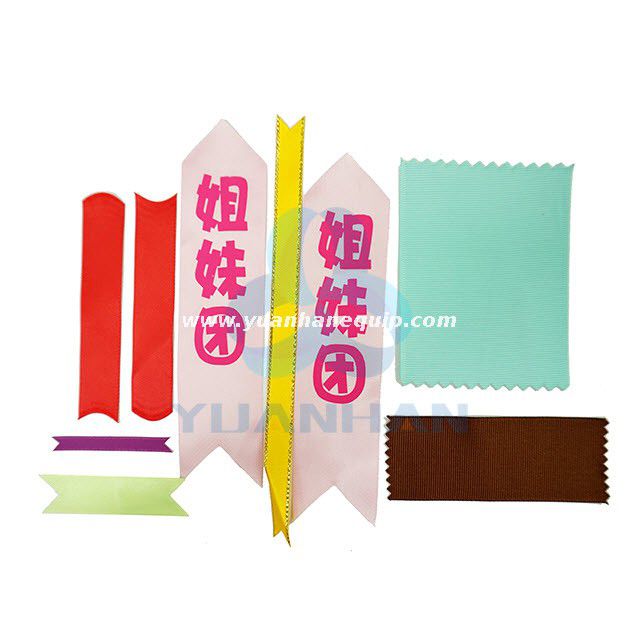

Cutting shapes: straight cutting, oblique cutting, dovetail and other shapes
Good cutting effect, low energy consumption, low noise, sustainable work more than 100 hours
Model | ZCUT-80 |
Frequency | 18KHZ |
Voltage | 220V |
Air source | 0.5-0.6MPa |
Power | 2.4KW |
Size | 1,050*600*850MM |
Weight | 120KG |
Speed | 120pcs/min |
Max. cutting width | 70mm |
Cutting length | 1-99,999mm |
Knife properties | No difference for cold or hot knife |
