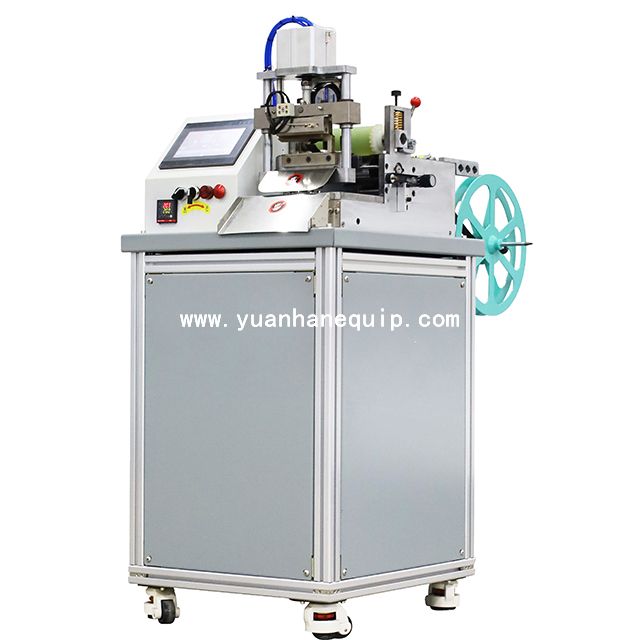

Rotary Webbing Cutting Machine for Different Shapes

Rotary Webbing Cutting Machine for Different Shapes

This automatic belt/tape/webbing cutting machine can cut different widths of woven tapes, Velcro, plastic hoses, plastic zippers, flat flexible cables, trademark labels and other strips according to your required length and quantity. Arbitrary angle adjustment of 45 degrees - 135 degrees.

Model:	ZCUT-610
Brand:	Yuanhan

Inquire

Share to:

Features

Specifications

This machine can automatically cut different widths of woven tapes, Velcro, plastic hoses, plastic zippers, flat flexible cables, trademark labels and other strips according to your required length and quantity.
Arbitrary angle adjustment of 45 degrees - 135 degrees.

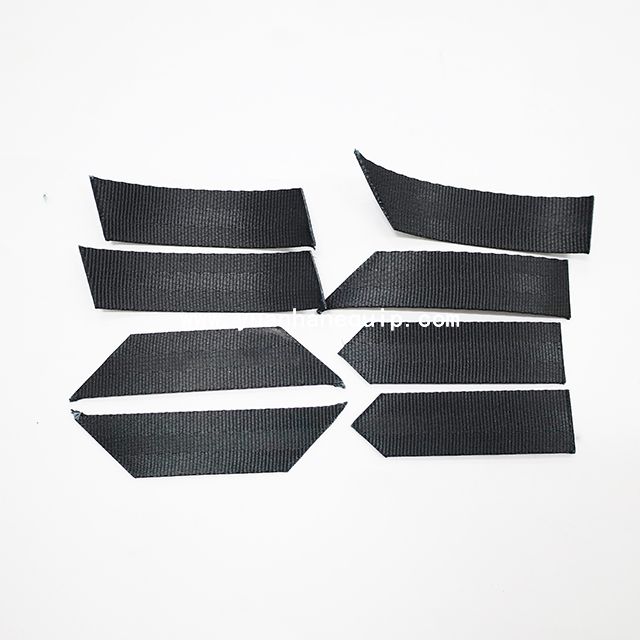

Cutting shapes: Rectangles, parallelograms, trapezoids, etc.
The compensation function designed according to the elasticity of the material to be cut can bring higher precision to your product, and it has heating device, which can heat seal different sizes of materials, so that the incision is not loose and the welding effect is good.
A hot and cold cutting machine, does not need to change the cutter.
The infrared positioning device can be positioned by the color code sensor to precisely cut the trademarks and Velcro of various widths and sizes.
The Velcro and other strips materials can be cut into rounded corners.
After power off, the machine automatically stores the current quantity, setting length, speed and other data without loss.
Fast feeding speed, high precision, low noise, lightweight and easy to move.

Model	ZCUT-610
Cutting length	1-999999mm
Max.cutting width	Straight 100/Chamfer 50mm
Cutting speed	100-120mm
Weight	65KG
Voltage/frequency	220V;50/60Hz
Power	0.6KW
Max.temperature of blade	600°C
Adjustable angle of blade	45-135°
Size	720440560mm
