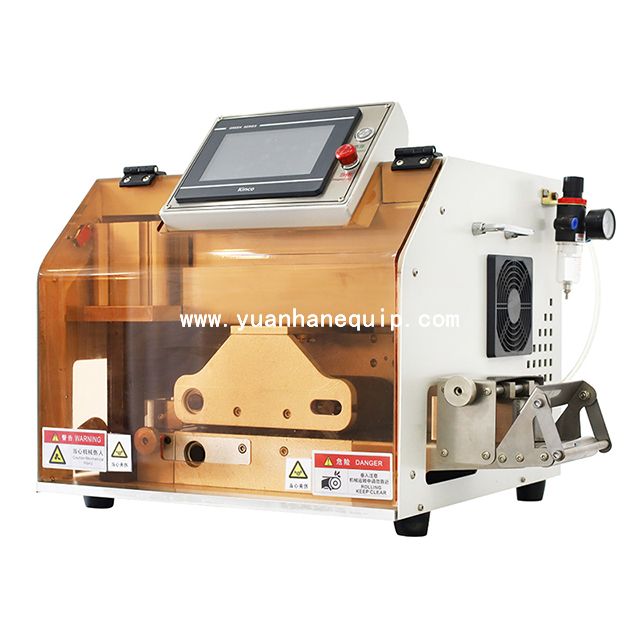

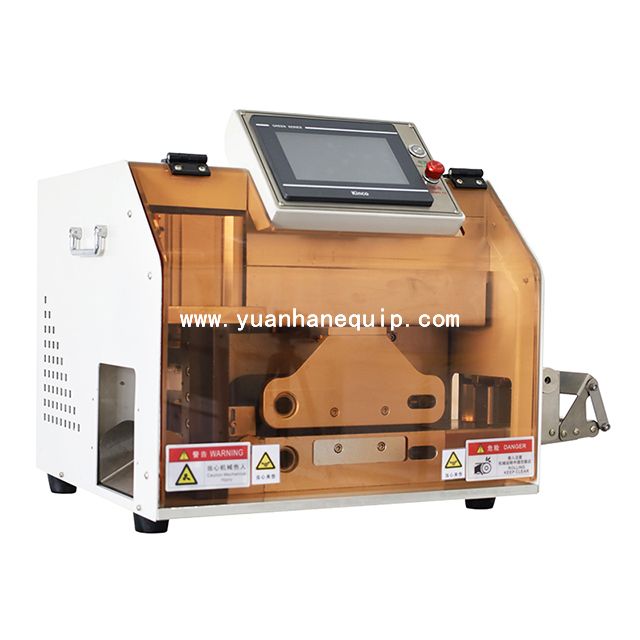

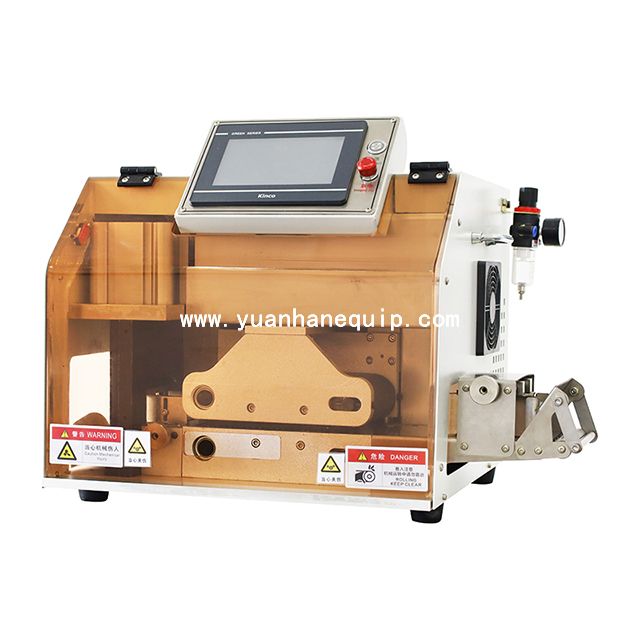

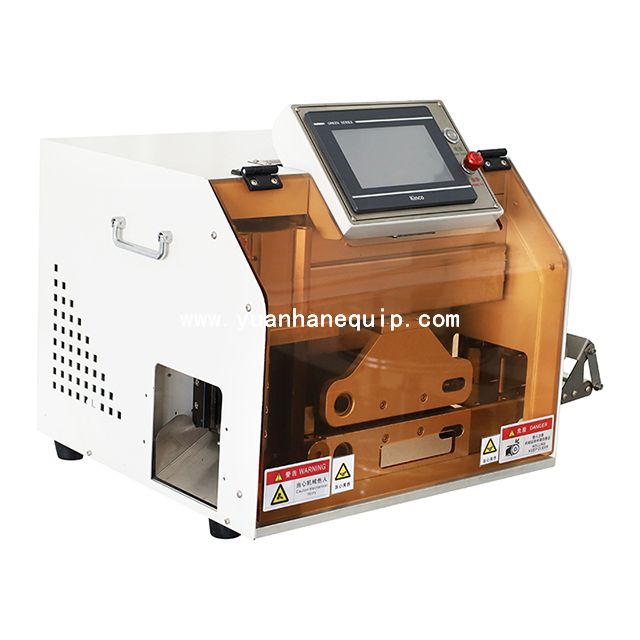

Cutting Machine for Heat Shrink Tubes Plastic Sleeves

We have developed and manufactured Cutting machine for Heat shrink tubes as well as other plastic tubes and sleeves. It cuts the sleeves to accurate length and also that too at a very high speed... The machine uses special guides for different types and sizes of sleeves/tubes. This ensures a good cut. All other setting is completely digital.

Model:
  • YH-BW09
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • MICROPROCESSOR controlled machines with smart display.

  • Fully automatic machine. Setting is completely digitized and mostly automatic.

  • Cutting system: pneumatic cylinder

  • If necessary, customers are requested to submit the sample of sleeves / tubes. This helps in selection of the cutter.

ModelYH-BW09
Control systemPLC man-machine interface
Cutting methodcylinder
Cutter stroke50mm
Power220V 50-60HZ
Air pressure0.5-0.7Mp
Working rate200W
Cutting diameterø1-ø30mm
Cutting widthup to 80mm (customizable)
Speed20-60 pcs/minute (depending on the cutting length)
Dimensions570x490x460mm
Weight70kg





×
