Applicable rubber compound: ABS/PVC/PA/PP/PC/POM/PBT fluorocarbon and other heavy engineering plastic injection molding
Model:
|
|
Brand:
|
|

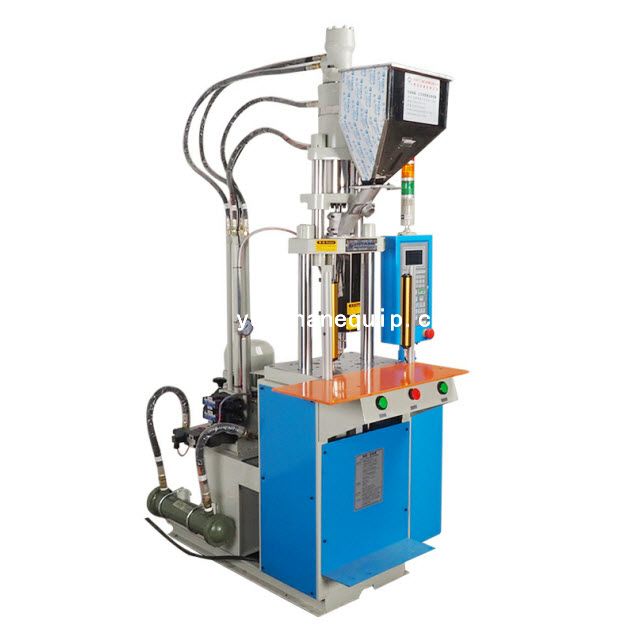

Straight screw ejected assembly
Two(three)-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to conectioned
Fixed bottom mold and loose top mold type is suitable for plastic injection molding of inserts and it is also equipled with an ejector for finished products
Low-pressure closed die assembly can protect the safety of die
INJECTION UNIT
Screw Diameter | Φ26/ Φ28mm |
Theoretical Injection Volume | 55.7 /64.6cm3 |
Injection Weight(PS) | 50(1.7) 58(2.0) |
Injection Rate | 34.6/40 cm3/sec |
Max.Injection Pressure | 1183 1019kg/cm2 |
Screw Speed Rotation | 0~215 r.p.m |
Nozzle Out From Platens | 105 mm |
CLAMPING UNIT
Clamping Force | 15tons |
Opening Stroke | 190mm |
Min.Mold Thickness | 100/25 mm |
Max.Open daylight | 290/215 mm |
Distance Between Tie Bars | 265mm |
Platen Size | 450*280 mm |
Ejector Distance | 35mm |
Ejector Force | 1.3tons |
OTHERS
Max. Hydaulic Pressure | 140 kg/cm2 |
Oil Tank Capacity | 130L |
Pump Heating Power | 2.2(3HP) kW(HP) |
Heater Power | 1.8KW |
Machine Dimension | 1.3*0.92*2.06 L*W*H mm |
Machine Weight | 0.45tons |
