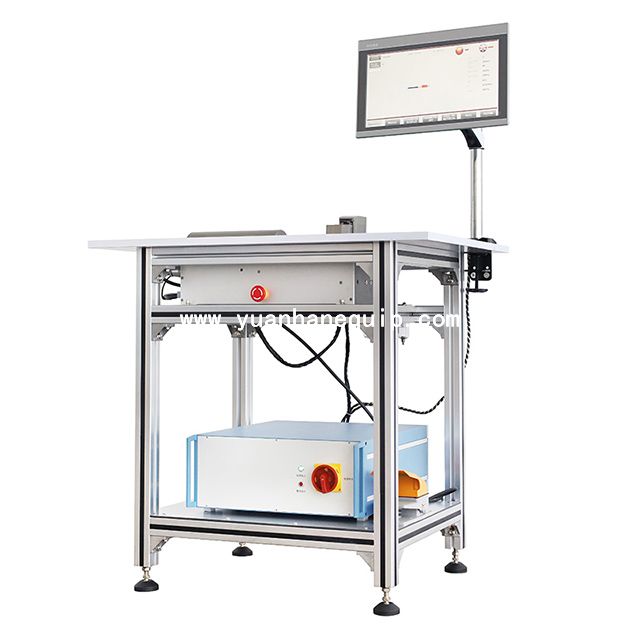

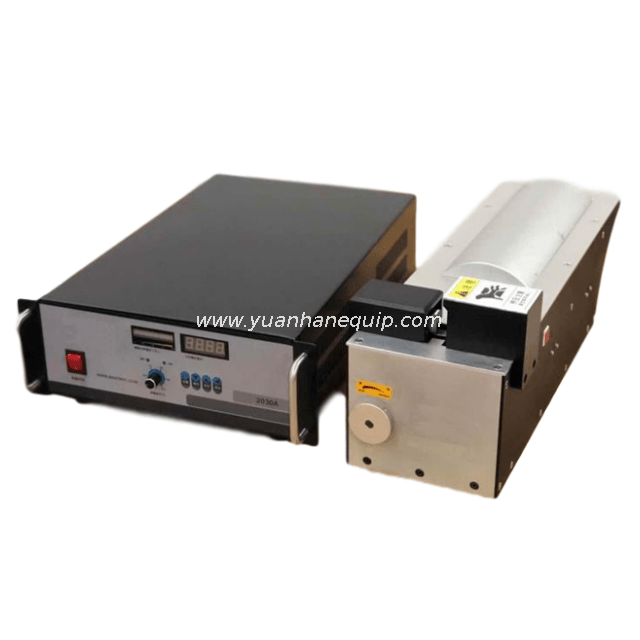

Ultrasonic Copper Wire Welder MachineUltrasonic Copper Wire Welder Machine

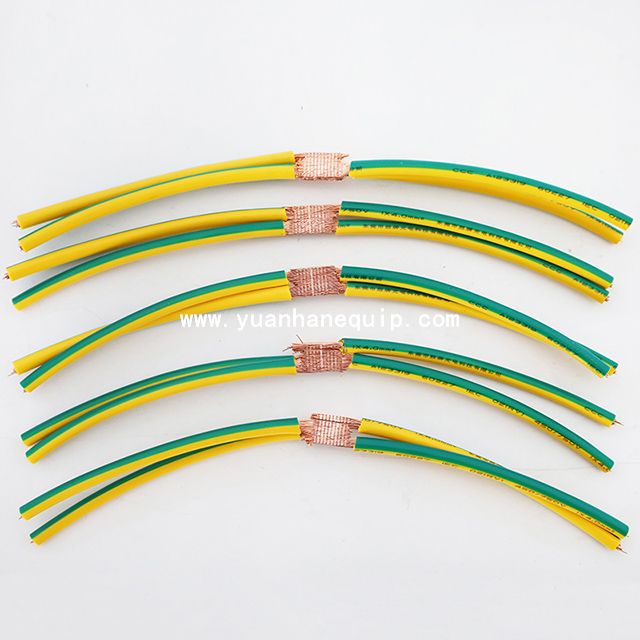

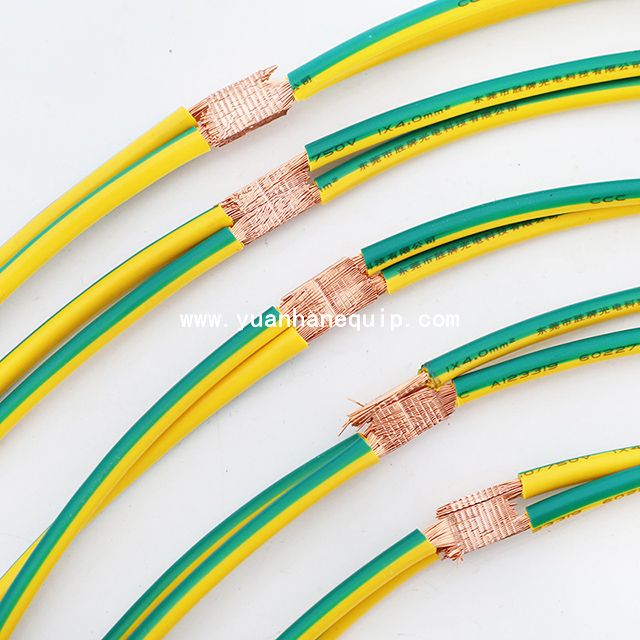

The ultrasonic wire harness welding machine is widely used in the fields of automobiles, electronic appliances, motors, communication equipment, mechanical equipment, instruments and so on. The welding harness area is from 0.7-30mm².

Model:
  • YH-2040S
Brand:
  • Yuanhan
Share to:
Features
Specifications

○ Lightweight and compact welding gun;
○ Welding area: 0.7mm2-30mm²
○ Stepper motor brings precise width;
○ Automatic calibration;
○ Data exchange and backup via USB;
○ Simple maintenance, easy operation

Model YH-2040S
Maximum power 4800w
Frequency 20khz
Insertion area opening 9.85mm
Welding cross-sectional area 0.7-30mm²
Welding gun weight 15kg
Power 220V 50/60hz
Dimension 463*135*167mm
Maximum air pressure 7 bar/10 bar





×
