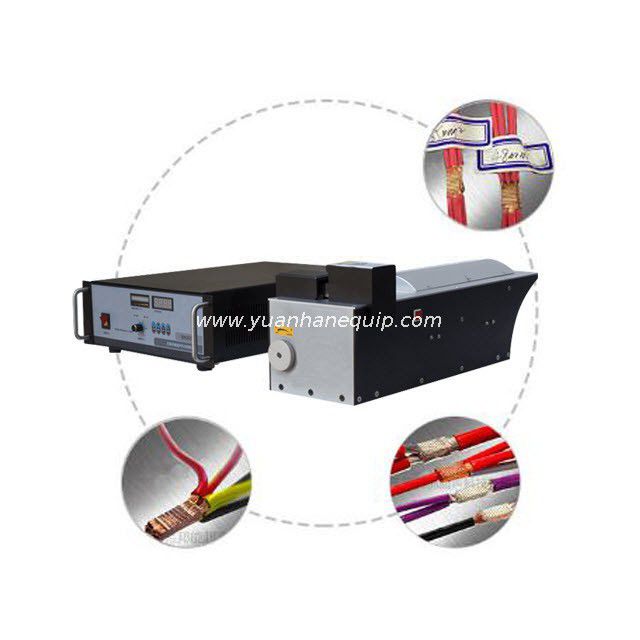

Ultrasonic Wire Harness Spot Welder MachineUltrasonic Wire Harness Spot Welder Machine

The ultrasonic wire harness welding machine is widely used in the fields of automobiles, electronic appliances, motors, communication equipment, mechanical equipment, instruments and so on. The welding harness area is from 0.7mm2-30mm2.

Model:
  • YH-X2020A/YH-X2030A/YH-X2040A
Brand:
  • Yuanhan
Share to:
Features
Specifications

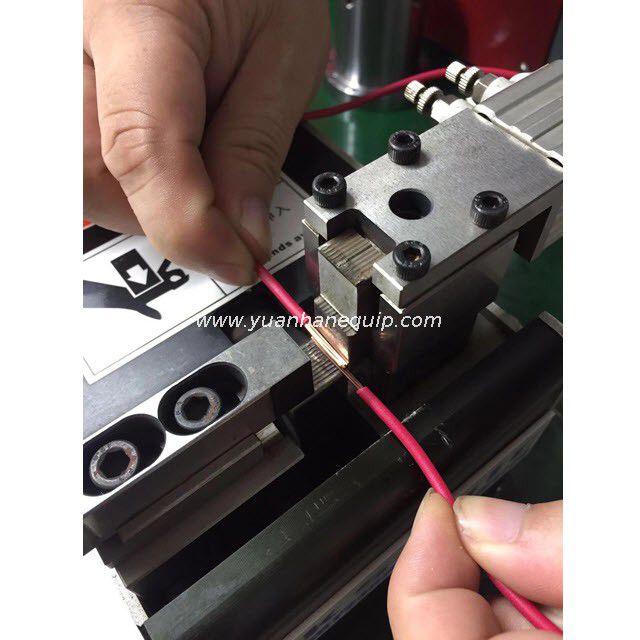

○ The power of the equipment is divided into 2000W, 3000W, 4000W. The welding harness area is from 0.7mm² -30mm² . It can be welded at one time. It is mainly used for lap welding of automobile wiring harness, wire head forming, wire mutual welding, multiple wires and butt joints, as well as mutual welding into a knot;

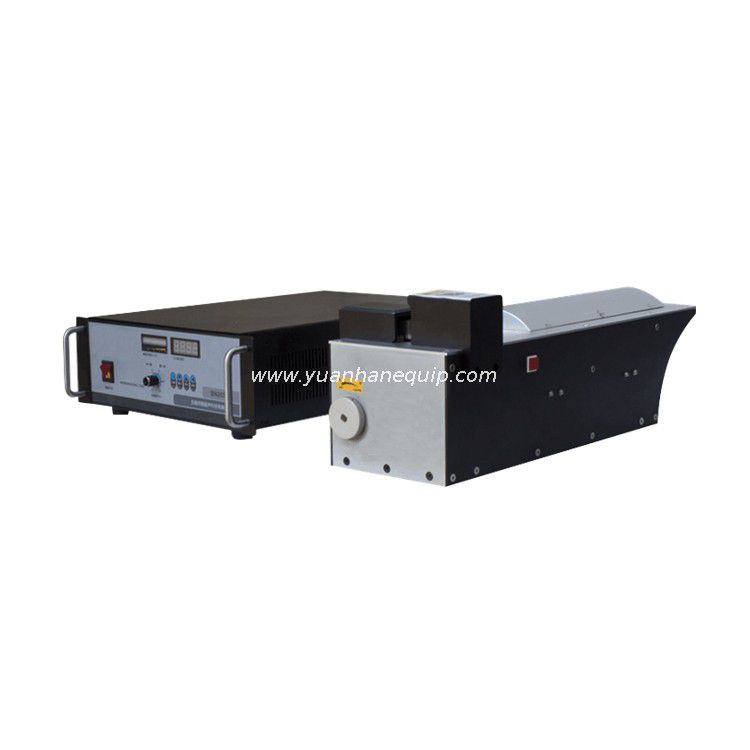

○ The whole machine is integrated design, the equipment is small in size, light in weight, beautiful in appearance and convenient to move;

○ Adopt PLL lock-in frequency automatic tracking technology to ensure the welding effect;

○ Good electrical conductivity after welding, low resistivity or near zero;

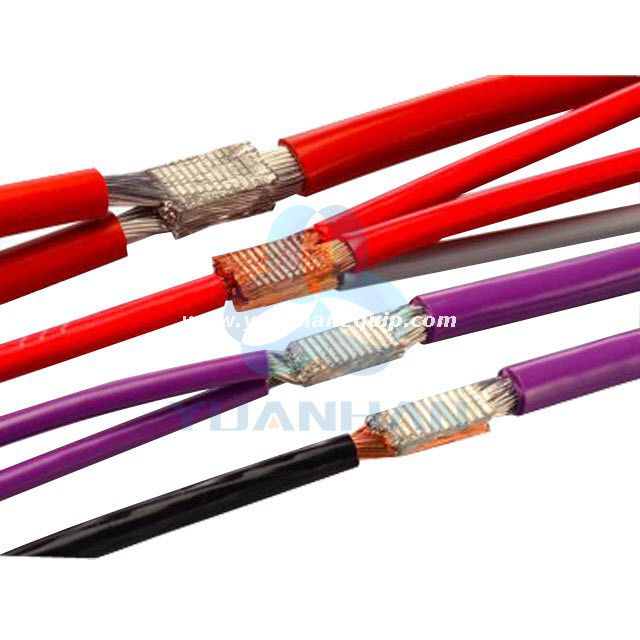

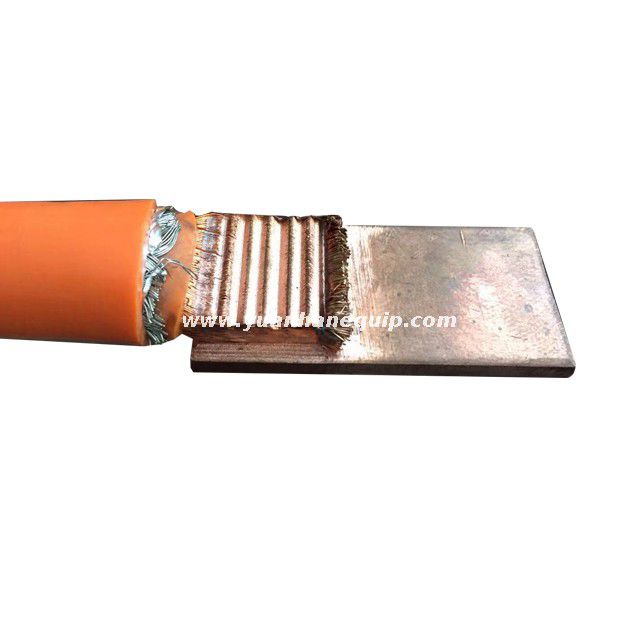

○ Suitable for welding copper wire and aluminum wire, such as copper and aluminum wire harness, metal braided wire, metal stranded wire, wire harness terminal, enameled wire, motor lead wire, etc.

○ The ultrasonic wire harness welding machine is widely used in the fields of automobiles, electronic appliances, motors, communication equipment, mechanical equipment, instruments and so on.

Model YH-X2020A YH-X2030A YH-X2040A
Power 2000W 3000W 4000W
Welding area 0.5-16 mm² 0.5-20 mm² 0.7-30 mm²
Working air pressure 0.05-0.9MPa 0.05-0.9MPa 0.05-0.9MPa
Working frequency 20KHz 20KHz 20KHz
Working voltage 220V 220V 220V





×
