Automatic USB Connector Soldering Machine

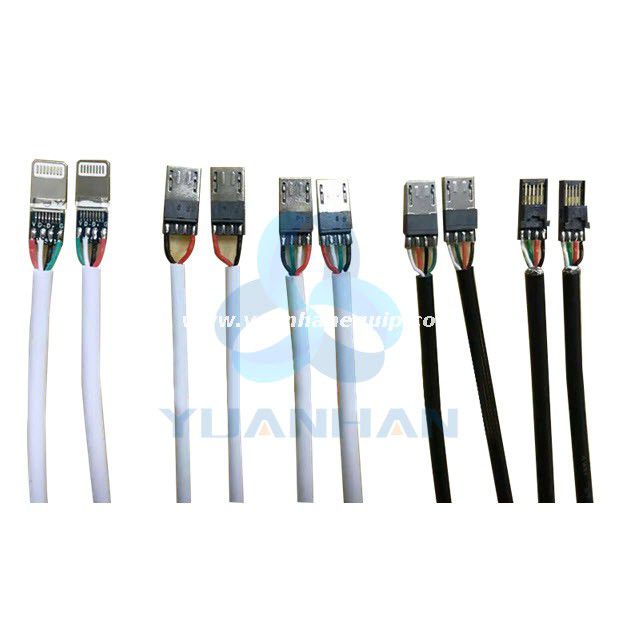

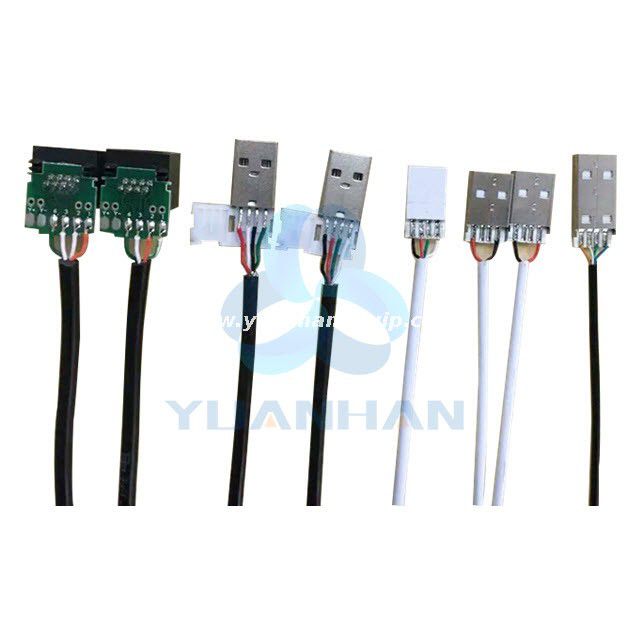

The automatic USB connector soldering machine adopts a vibration plate to feed loose USB connectors automatically. The worker only needs to simply place the cable into certain working area, then the machine will automatically weld USB connectors to the cable. The USB connector soldering machine is suitable for welding the following types of USB plugs: USB A/M. USB A/F, MICRO USB, MINI USB, MINI5PIN, MICRO5PIN, etc.

Model:
  • YH-USB
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • Applicable USB plugs: USB A/M. USB A/F, MICRO USB, MINI USB, MINI5PIN, MICRO5PIN, etc.

  • Adopting a vibration plate to feed loose USB connectors automatically

  • Compact structure, fast welding positioning and high precision

  • Using high-power soldering station, warming rapidly

  • High accuracy control of temperature, and stable welding effect

ModelYH-USB
FunctionUSB, MINI5PIN, MICRO5PIN auto tin welding
Starting power1KW
Power supplysingle phase AC 220V 10A 50Hz
Drive typepneumatic
Control modeconstant temperature
Starting power1KW
Normal operating power0.5KW
Applicable cables28*1P+28*2C, 28*1P+24*2C

28*1P+26*2C, 28*1P+22*2C

28*1P+20*2C

Internal peeling length0~20mm
Working pressure0.5Mpa
Productivity900~1200pcs/H
Dimension1500*600*1300mm
Weightabout 200kg
Customizationavailable



×
