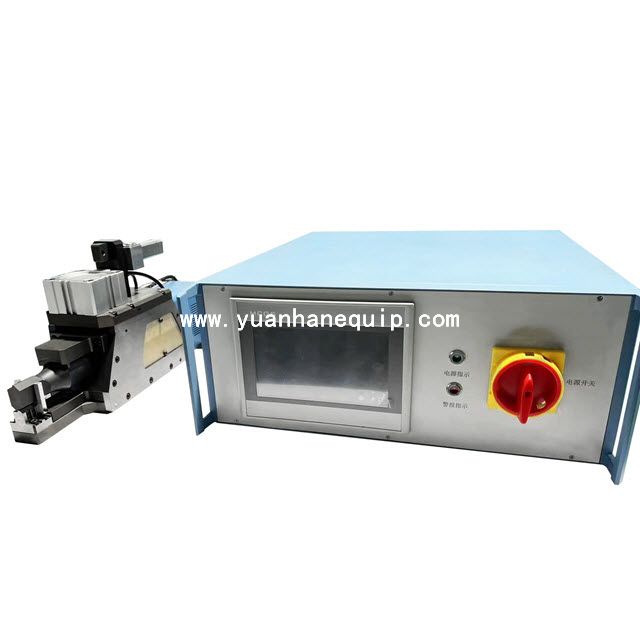

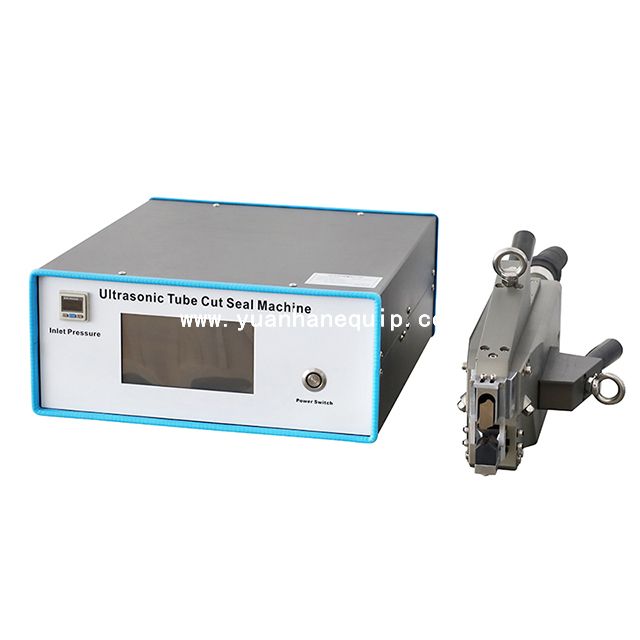

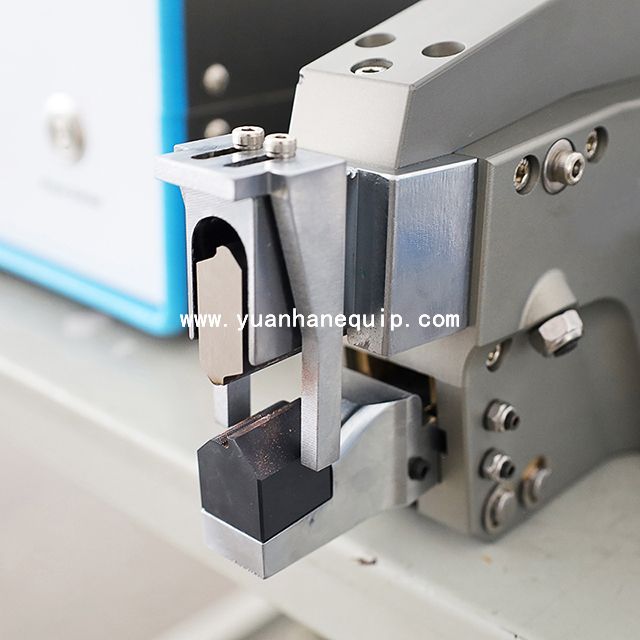

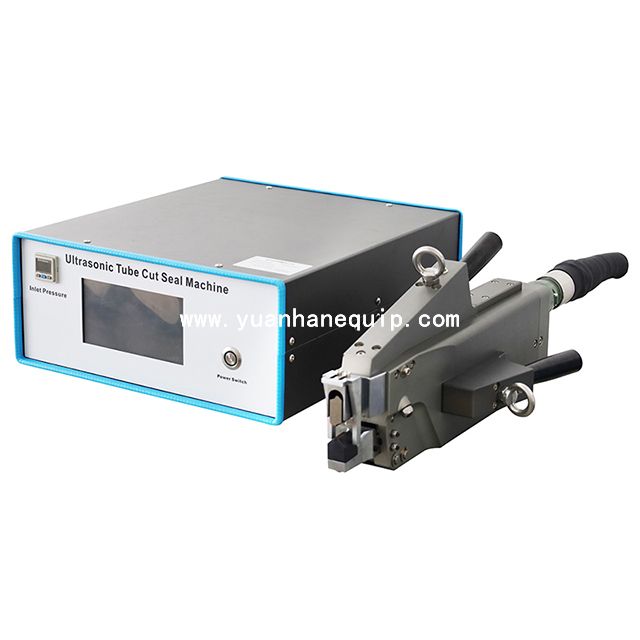

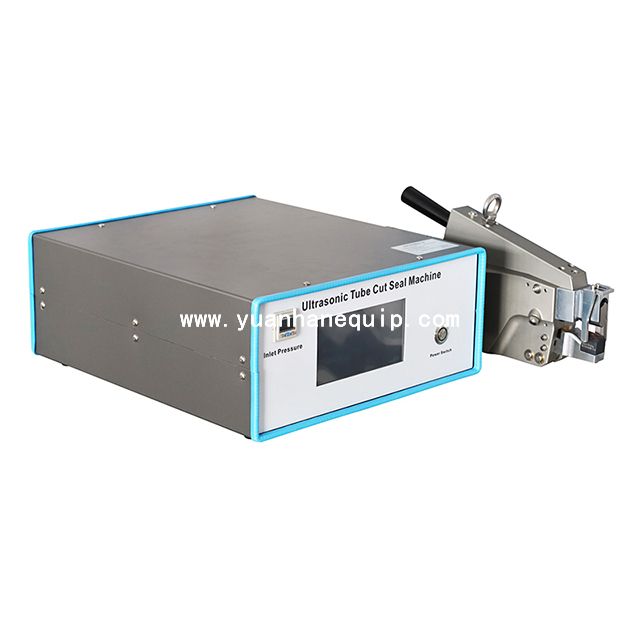

Ultrasonic Copper Aluminum Tube Sealing Machine

Ultrasonic Copper Aluminum Tube Sealing Machine

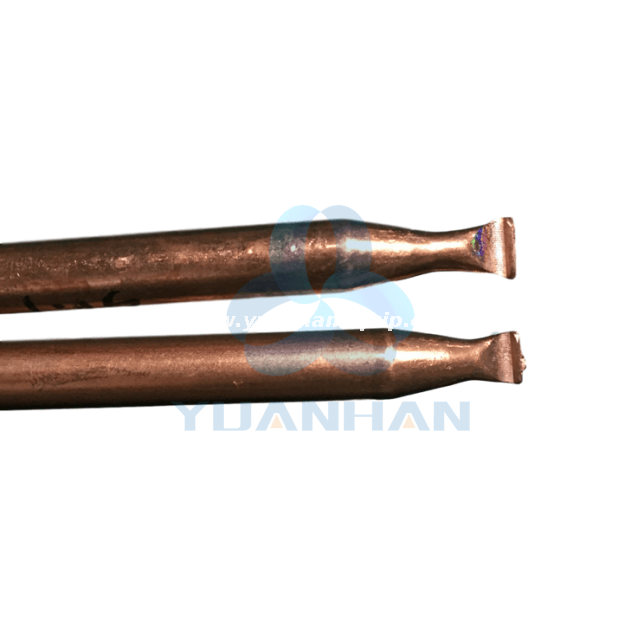

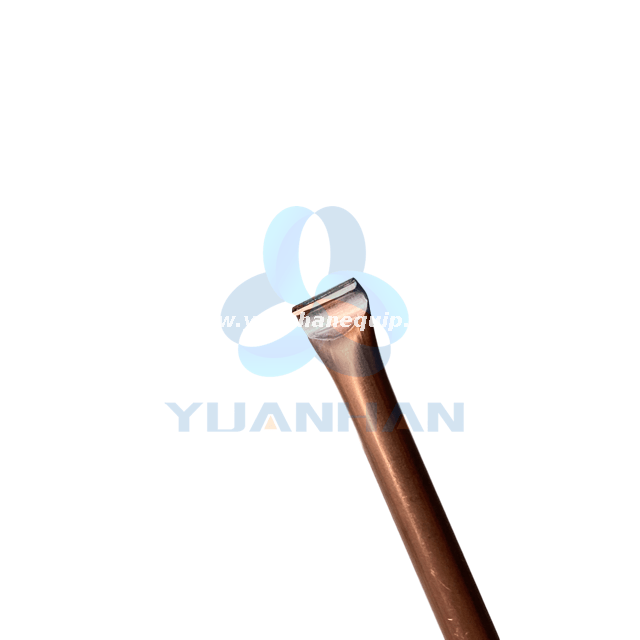

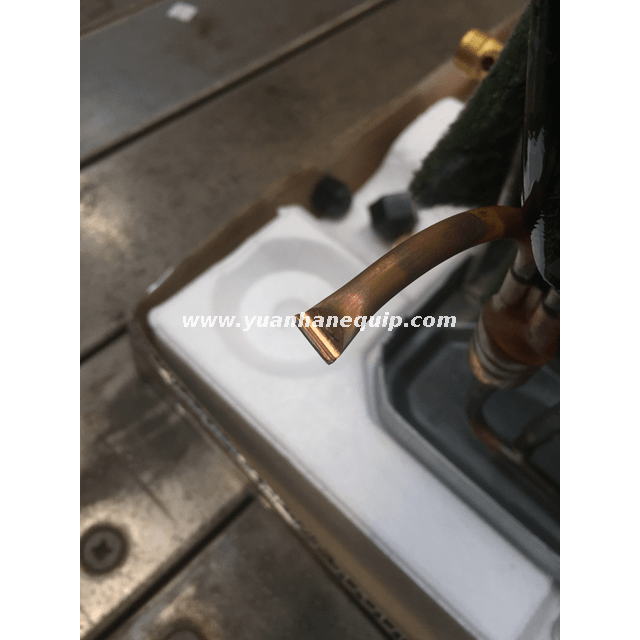

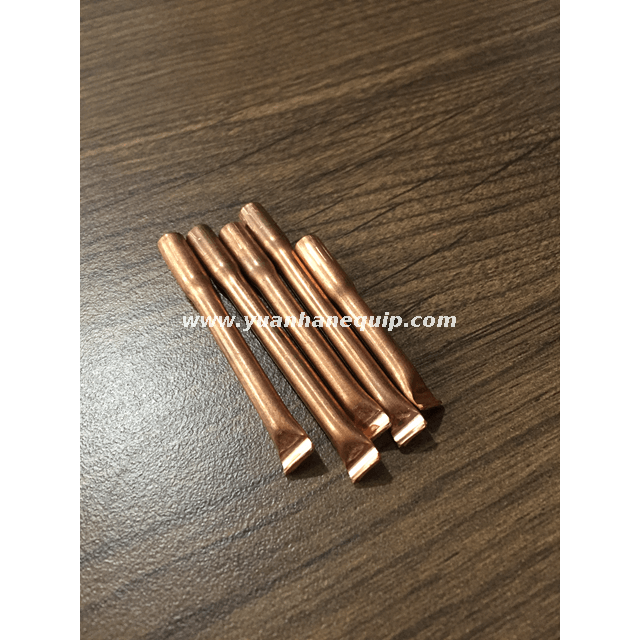

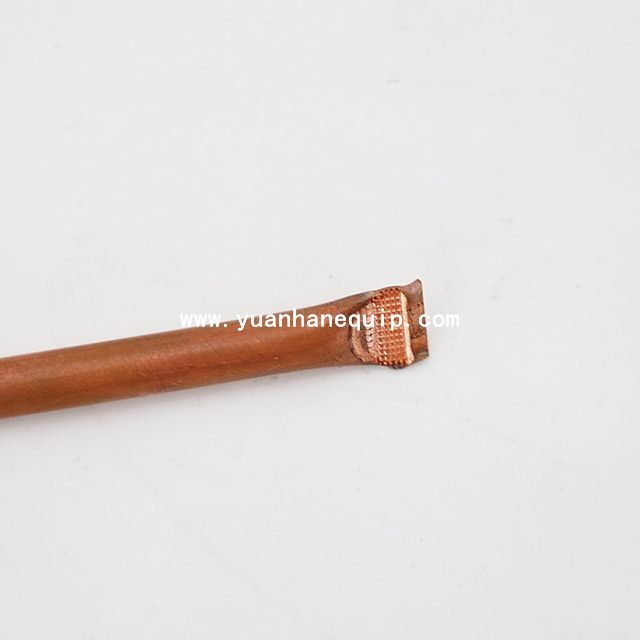

Ultrasonic metal tube sealing machine for processing copper or aluminum tubes of refrigerators and air conditioners.

Model:	YH-FKJ/YH-4000T
Brand:	Yuanhan

Inquire

Share to:

Features

Specifications

○ This ultrasonic copper tube sealing machine does not need to be preheated by heating.

○ The sealing speed is fast and the efficiency is high.

○ The equipment is small in size, easy to carry and easy to operate.

○ It is safe and environmentally friendly. It uses ultrasonic high-frequency friction to instantly generate high temperatures to melt and weld metal materials.

○ Efficient resonance frequency work, automatic tracking, large output power, stable and reliable welding.

○ Ultrasonic power is adjustable, and a number of built-in parameters can be set, such as pressure, welding time, holding pressure cooling time, vibration fall time, cylinder down pressure rise speed, etc. Welding parameters can be selected according to different welding materials and diameters.

Model	YH-FKJ/YH-4000T
Voltage	220V/50Hz (110V equip with outside transformer)
Power/Effciency	4000W, 20KHz
Tube diameter range	2-12mm
Tube wall thickness	0.4-1mm
Air pressure	0.45-0.6Mpa (kgf/cm)
Efficiency	40-60pcs/min
Welding head weight	12.5kgs
Total packing weight	43 kgs
Packing dimensions	70x60x46cm
Functions	7 inch PLC touch screen display; Store 20 sets of programs; Support Chinese/English/Russian language; Support Energy mode/Time mode/Pressure drop alarm/Real-time thickness monitor/Thickness tolerance alarm/Positioning-plate moving alarm; Welding mold life-time reminder/Welding mold face-changing reminder; Digital proportional valve control; Automatic frequency tracking; Welding time overtime alarm; Energy limit alarm. Note: Under the condition of consistent wall thickness, the parameters of different tube diameters from 4 to 12 mm are adaptively adjusted without manual adjusting.
