Automatic Strip Material Cutting and Hole Punching Machine
Automatic Strip Material Cutting and Hole Punching Machine
Automatic Strip Material Cutting and Hole Punching Machine
Automatic Strip Material Cutting and Hole Punching Machine
Automatic Strip Material Cutting and Hole Punching Machine
Automatic Strip Material Cutting and Hole Punching Machine
Automatic Strip Material Cutting and Hole Punching Machine

Automatic Strip Material Cutting and Hole Punching MachineAutomatic Strip Material Cutting and Hole Punching Machine

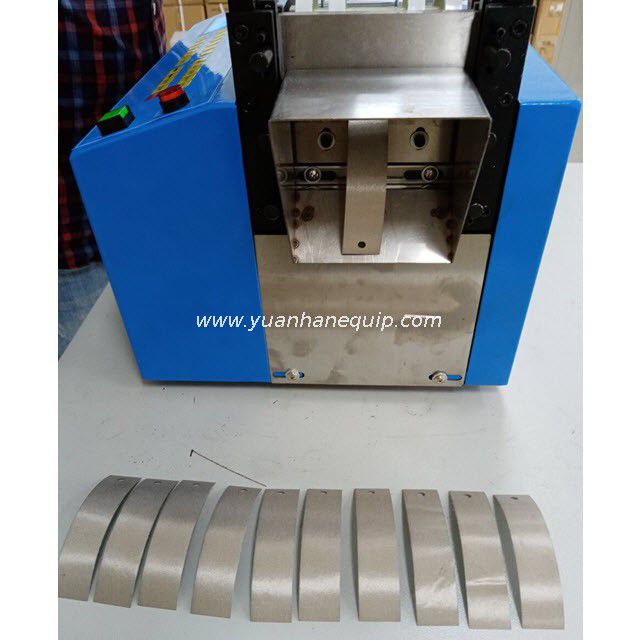

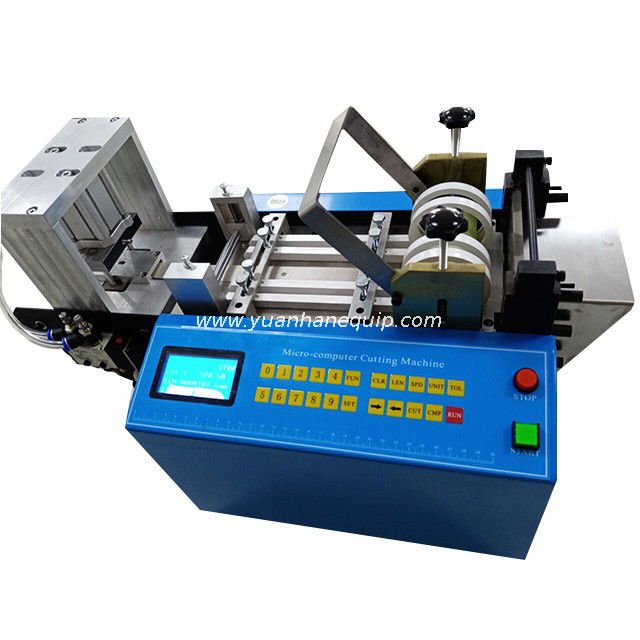

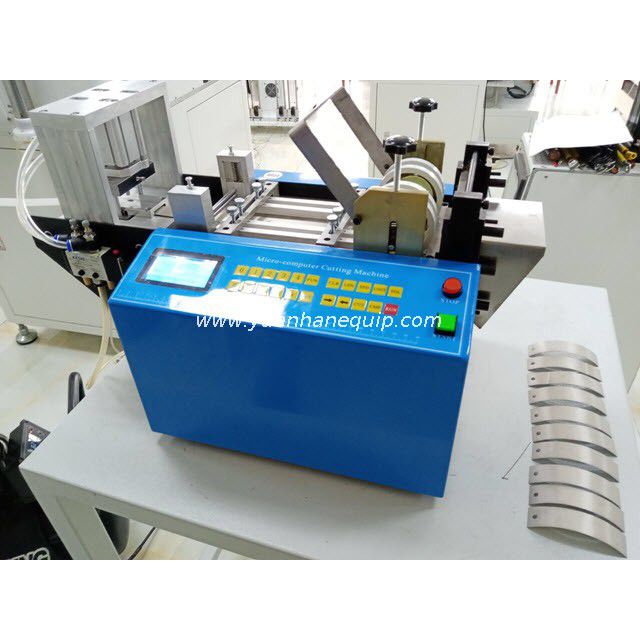

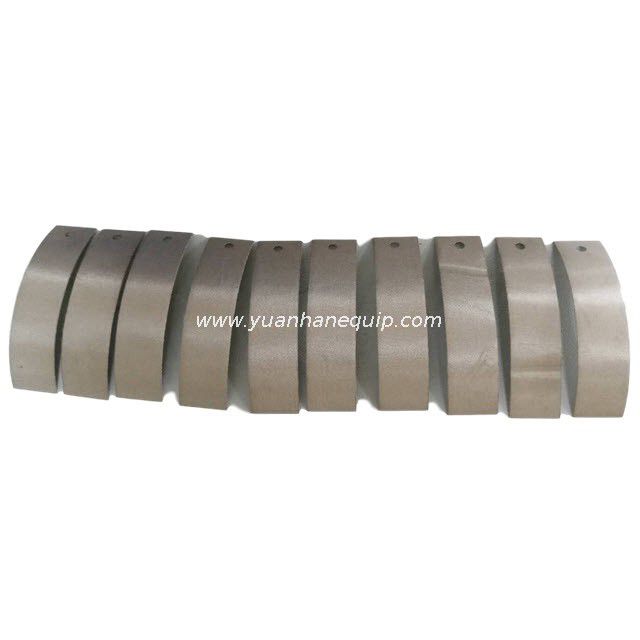

This automatic machine is suitable for cutting strip materials to a fixed length and punching holes at the same time.

Model:
  • ZCUT-100ST
Brand:
  • Yuanhan
Inquire
Share to:
Features
Specifications

○ High efficiency and high accuracy: up to 120-150 times per minute;

○ Tolerance: +/- 0.5% of cutting length;

○ Cutting type: Cold cutting with a durable cold knife;

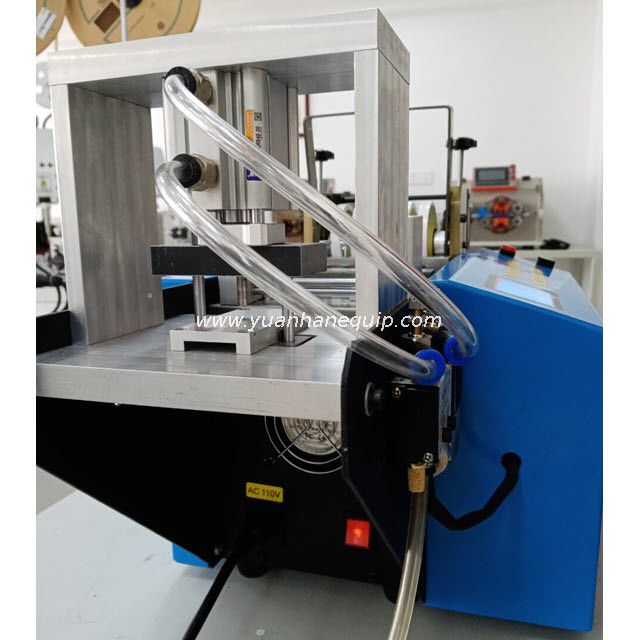

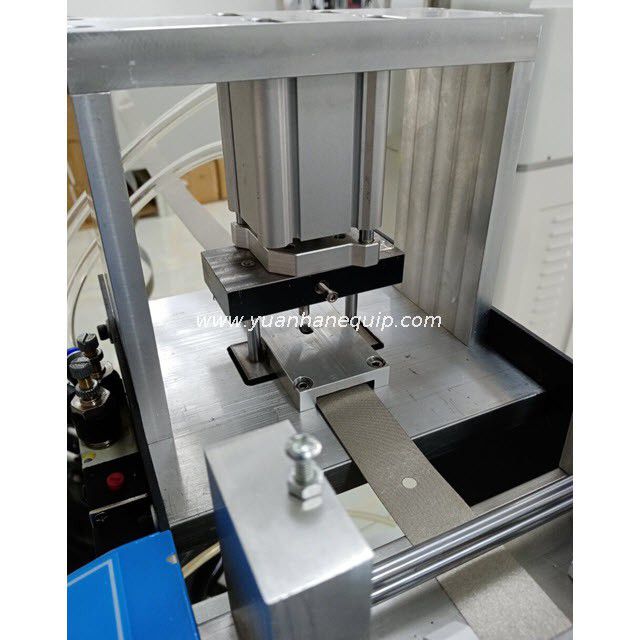

○ Hole punching: as required.

○ Suitable for cutting fiberglass tubes, teflon tubes, silicone tubes, yellow wax tubes, PVC tubes, PE tubes, plastic tubes, rubber hoses, wire ropes, electric cables, and non-adhesive strip materials like belt loop, string, plastic zipper, elastic band, small webbing, insulation paper, copper foil, copper sheet, nickel tape, cotton tape, etc.

○ Automatic operation: It works automatically only by setting length and quantity;

○ Automatic stopper: It stops automatically if materials run out during operation;

○ Memory function: the previously set length, quantity and speed will not be erased even if power off & on;

○ We supply different models to fit your requests.

Model ZCUT-100ST
Available width 95mm
Available thickness 15mm
Cutting length 1-100,000mm
Knife cold knife
Power supply 110/220VAC, 50/60Hz
Power 900W
Speed 150 pcs/min
Weight 30kg
Dimensions 43*33*48cm
