Automatic Flex Tubing Cutting and Splitting Machine
Automatic Flex Tubing Cutting and Splitting Machine
Automatic Flex Tubing Cutting and Splitting Machine
Automatic Flex Tubing Cutting and Splitting Machine
Automatic Flex Tubing Cutting and Splitting Machine
Automatic Flex Tubing Cutting and Splitting Machine

Automatic Flex Tubing Cutting and Splitting MachineAutomatic Flex Tubing Cutting and Splitting Machine

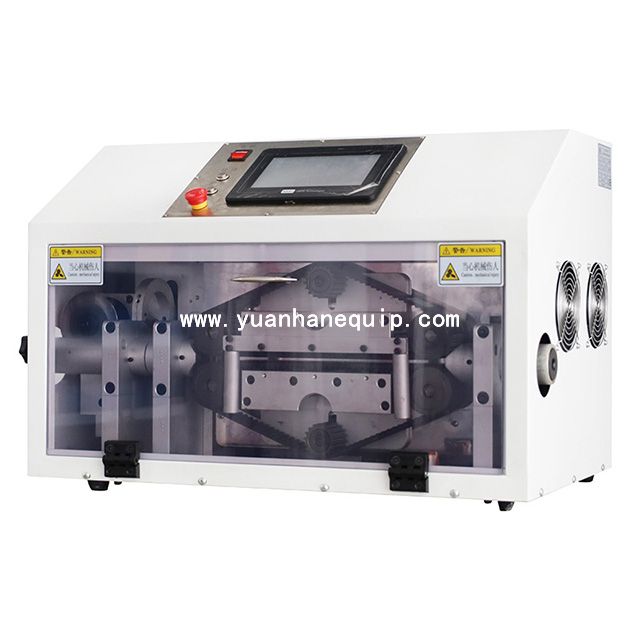

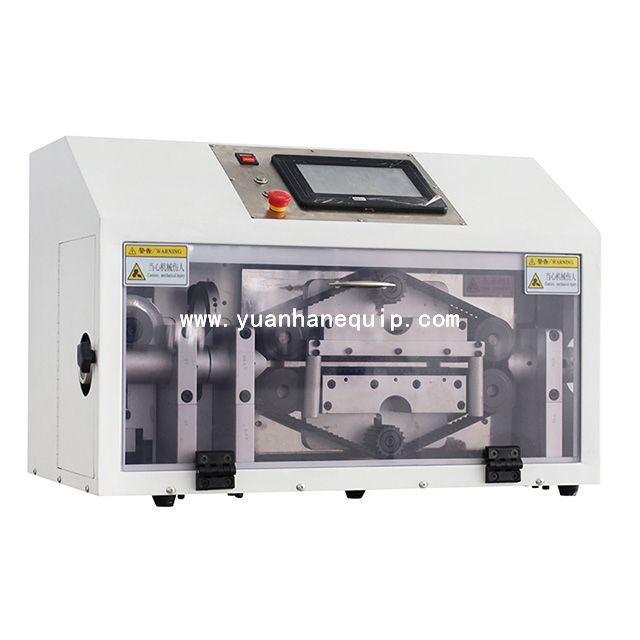

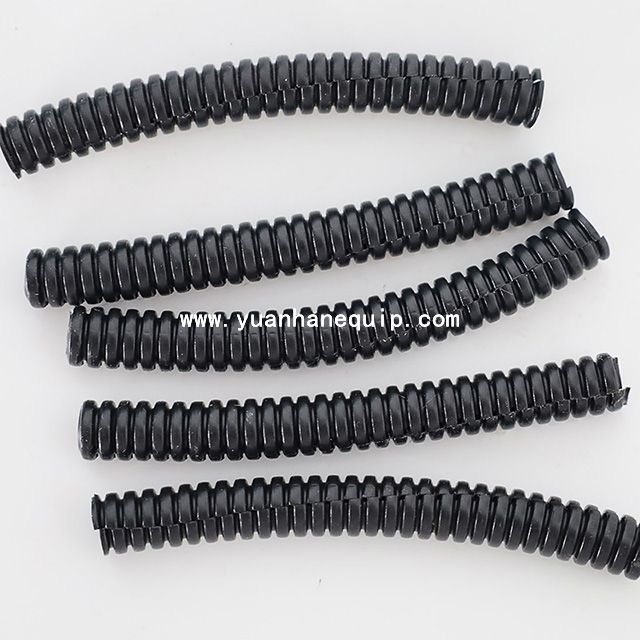

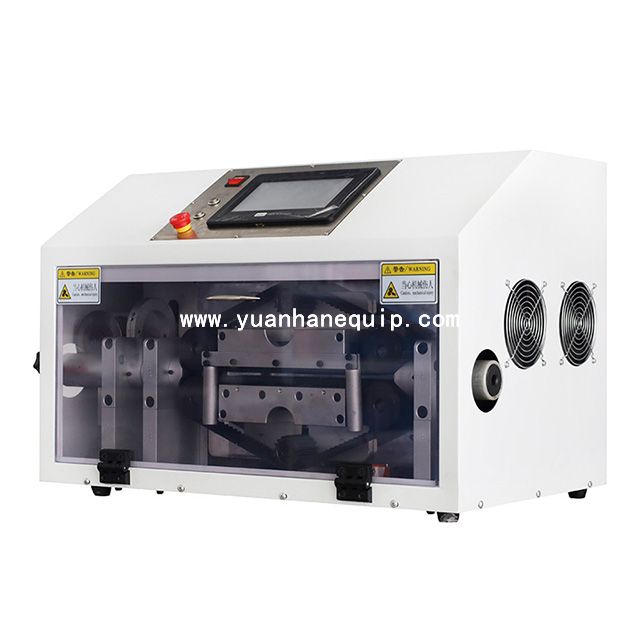

This fully automatic flex tubing processing machine is designed for cutting and splitting corrugated tube, silicone tube, rubber tube, oil seal tube, coffee tube, medical tube, gas tube, water tube and more.

Model:
  • YH-PK400
Brand:
  • Yuanhan
Inquire
Share to:
Features
Specifications

○ Low cost cutting knife, flat cutting effect, simple and convenient replacement.
○ Feeding by stepping motor, with stable feeding and precise cutting length.
○ High-precision single-chip integrated control, simple operation and stable control.

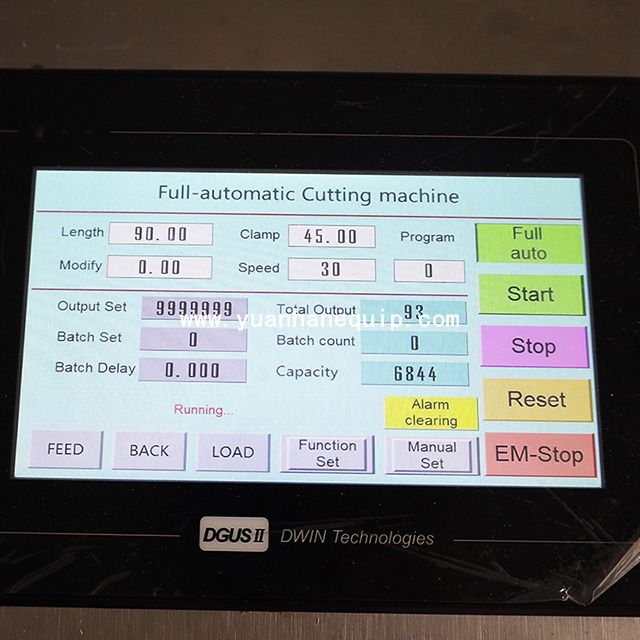

○ Touch screen display, easy to set cutting parameters.

Model YH-PK400
Power AC220V, 560W
Gross weight 82kg
Net weight 66kg
Cutting speed 60-210 times/min
Cutting accuracy ±0.1mm
Cutting length 0.1-99999.9mm
Cutting diameter max φ38mm
Dimension 650*480*420mm (length*width*height)
