Automatic Tube Cut-to-length Machine
Automatic Tube Cut-to-length Machine
Automatic Tube Cut-to-length Machine
Automatic Tube Cut-to-length Machine
Automatic Tube Cut-to-length Machine
Automatic Tube Cut-to-length Machine
Automatic Tube Cut-to-length Machine

Automatic Tube Cut-to-length MachineAutomatic Tube Cut-to-length Machine

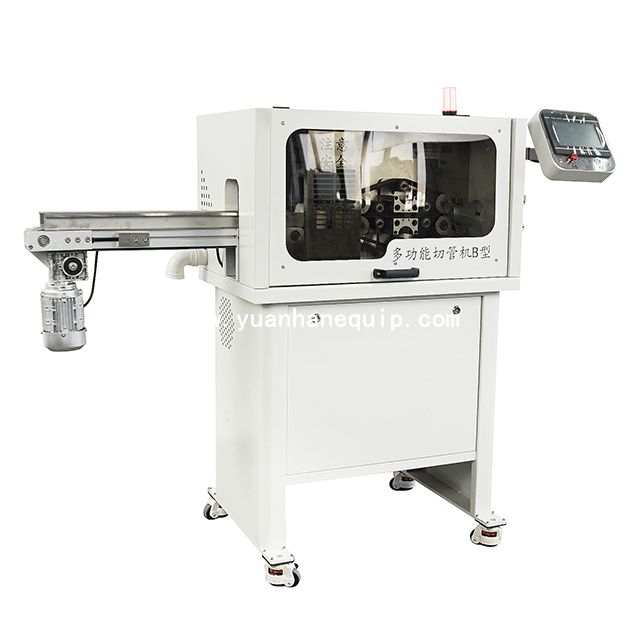

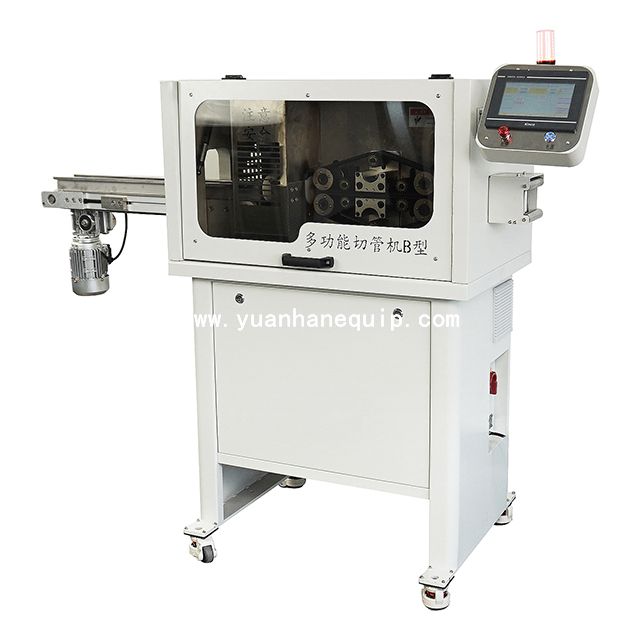

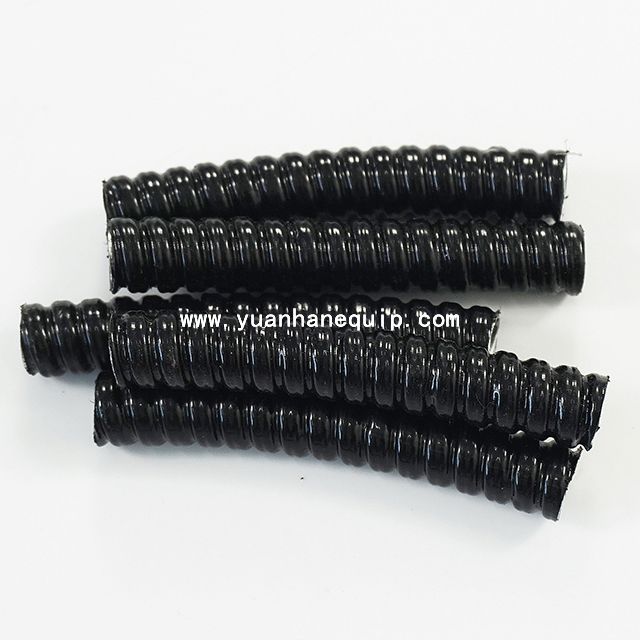

The universal cutting machine for hoses and tubes is designed for automatic cut-to-length and cutting of a wide spectrum of materials. For corrugated tubes, plastic pipes, PVC tubes, silicon tubes and much more, our universal cutting machine delivers precise results with good cut quality and high working speeds.

Model:
  • YH-BW760
Brand:
  • Yuanhan
Inquire
Share to:
Features
Specifications

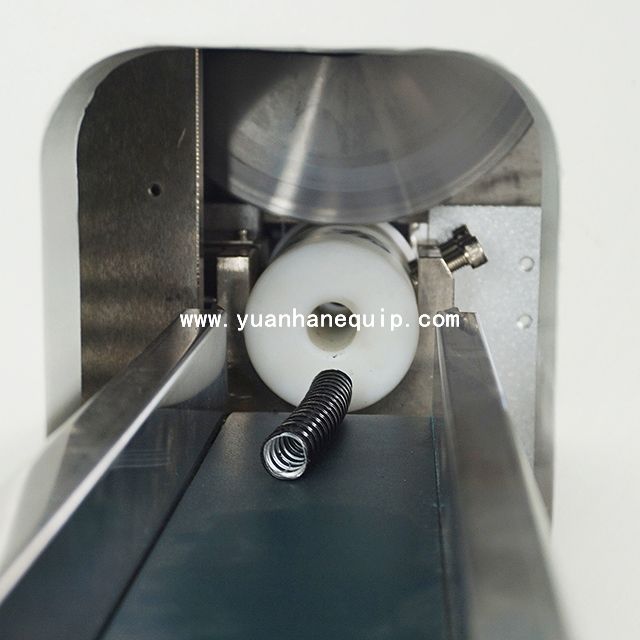

  • Motor blade, rotating cutting, high accuracy

  • Universal for different tasks due to exchangeable cutting tools

  • High cutting performance due to high feeder speed

  • Robust design with long service life

ModelYH-BW760
Control systemmotion control board plus man-machine interface
Cutting methodrotating round knife
Cutter power1KW
Feeding motorservo motor

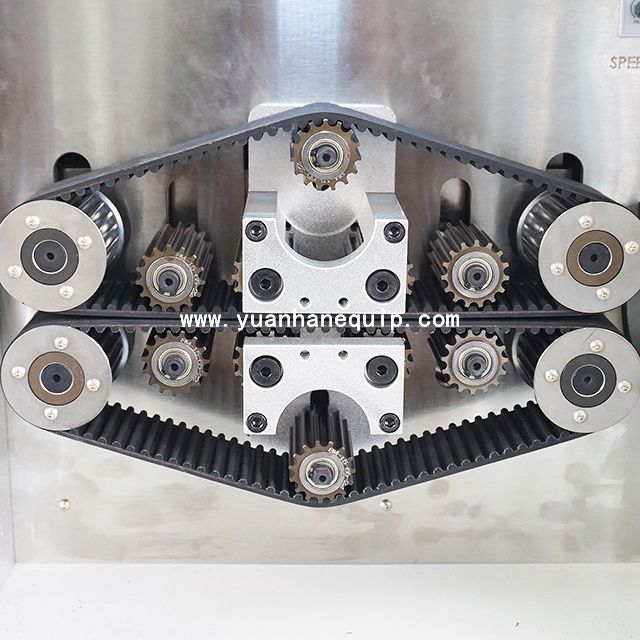

Feeding methodcrawler feeding
Blade moving methoddigital control motor
Output methodconveyor belt output
Feed stroke40mm
Power source220V 50-60HZ
Air pressure0.5-0.7Mp
Power2,000W
Cutting diameterø1-ø40mm
Length error± 0.5
Speed20-40 pcs / minute
Size1,020x530x1,300 (not including protrusions)
Weightabout 270KG
