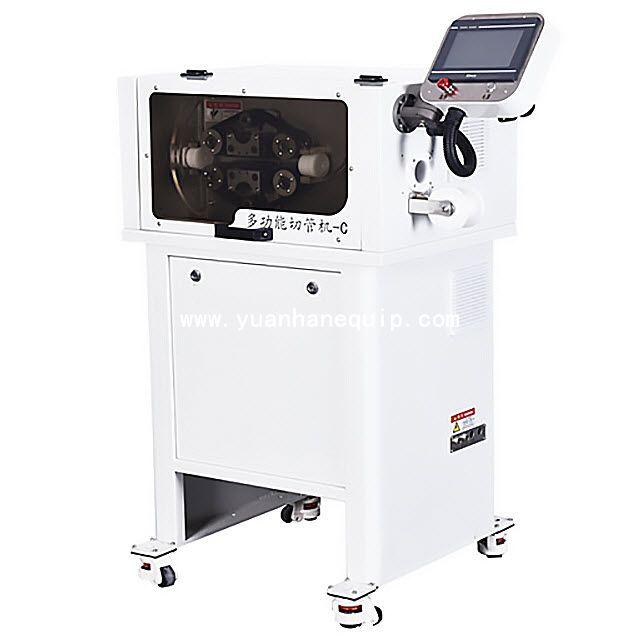

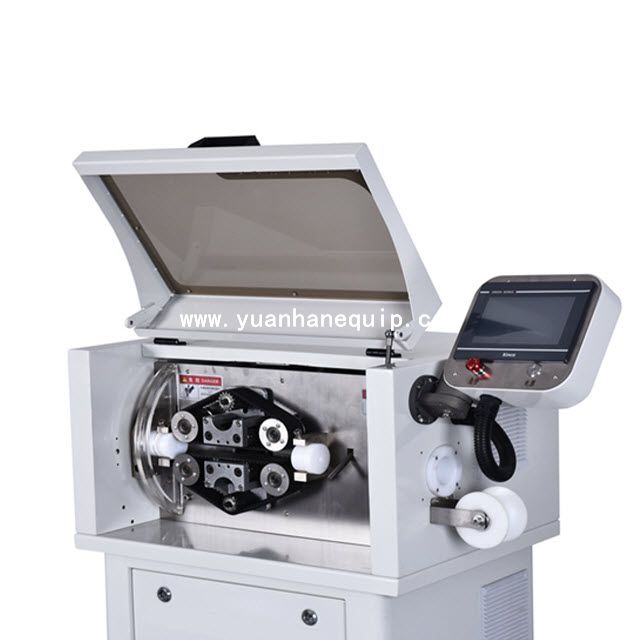

High Speed Tube Length Cutting MachineHigh Speed Tube Length Cutting Machine

This high speed cutting machine for hoses and tubes is designed for automatic cut-to-length and cutting of a wide spectrum of materials. For corrugated tubes, plastic pipes, PVC tubes, silicon tubes and much more, our high speed tube length cutting machine delivers precise results with good cut quality and high working speeds.

Model:
  • YH-BW860C
Brand:
  • Yuanhan
Share to:
Features
Specifications

○ Universal for different tasks due to exchangeable cutting tools

○ High cutting performance due to high feeder speed

○ Very high cutting accuracy

○ Robust design with long service life

ModelYH-BW860C
Cutting motor1.5KW servo motor
Feeding motor57 stepping motor
Feeding methodcrawler feeding
Blade typeStandard 18mm art blade
Power source220V 50-60HZ
Working rate1800W
Cutting diameterø1-ø36mm
Cutting tolerance±0.2-0.5% (depending on the pipe material)
Speed50-400 pieces/minute (depending on the length)
Dimensions850X520X1200mm
Weight150Kg


×
