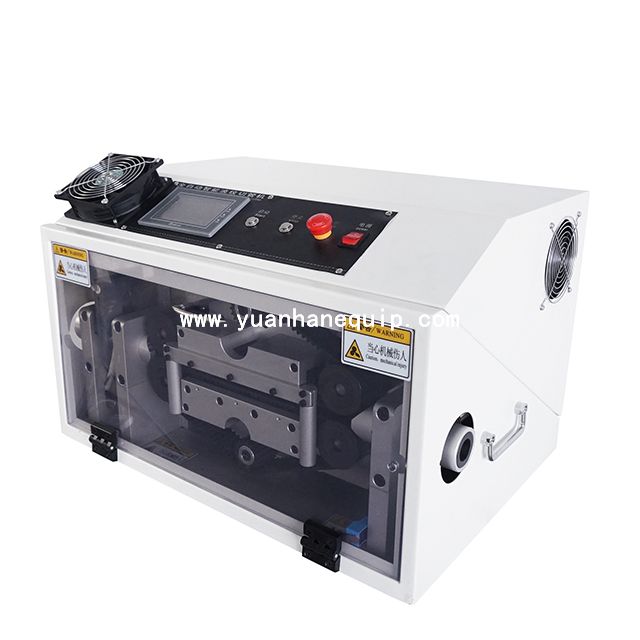

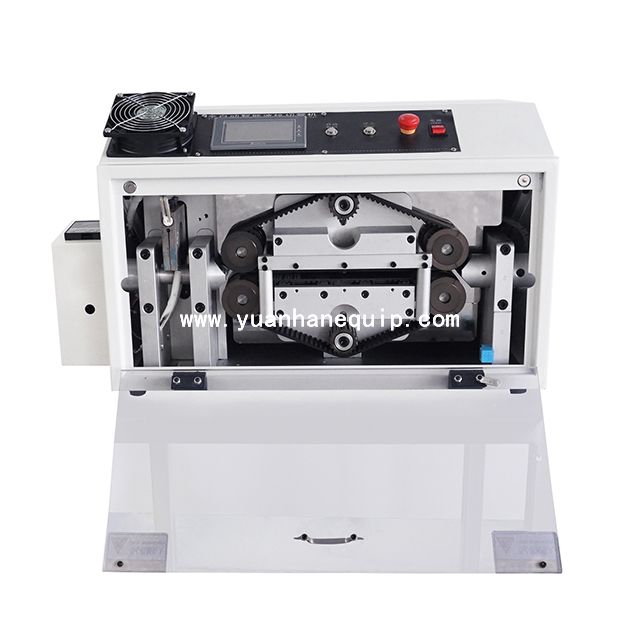

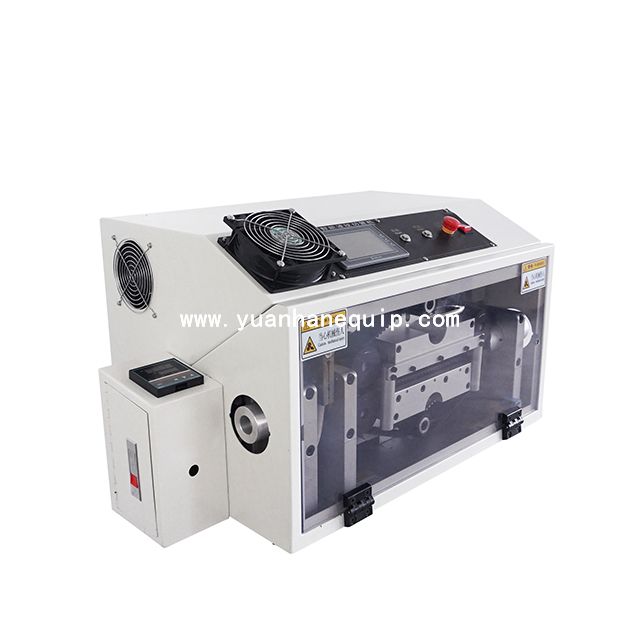

This is a hot blade nylon rope cutting machine. It is suitable for cutting double braided nylon ropes with the hot melt cutter.
Model:
|
|
Brand:
|
|

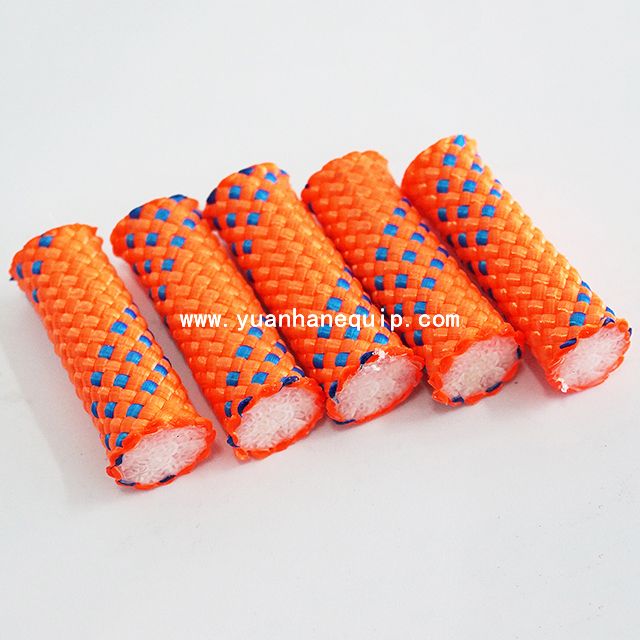

Suitable for cutting of double braided nylon ropes with the hot melt cutter
Efficient, stable and durable
Easy to understand PLC touch screen control

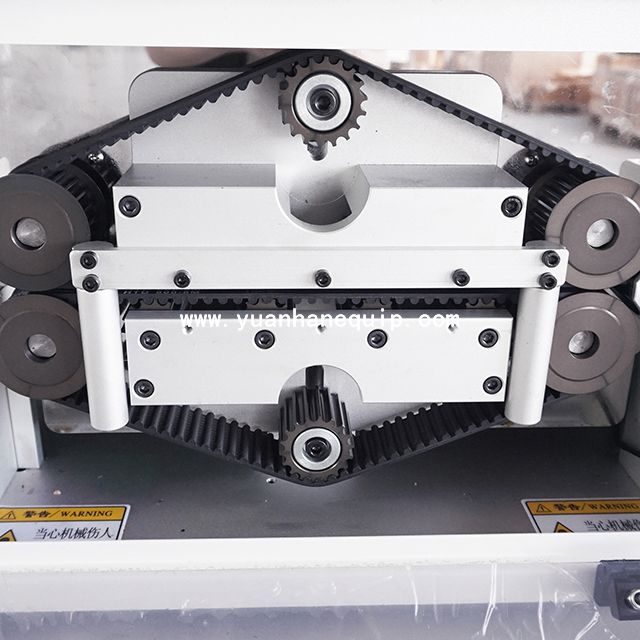

Stepper motor control with stable feeding and precise cutting length
Model | YH-RQ400 |
Cutting accuracy | ± 0.1mm |
Cutting length | 0.1-99999.9.mm |
Rope cutting diameter | Max. φ20mm |
Cutting speed | 60-210pcs/min (depending on cutting length) |
Power | AC220V, 560W |
Maximum temperature | 460℃ |
Dimensions | 650*480*420mm(L*W*H) |
Gross weight | 87kg |
Net weight | 66kg |
