Brass Tube Aluminum Rod Cutting MachineBrass Tube Aluminum Rod Cutting Machine

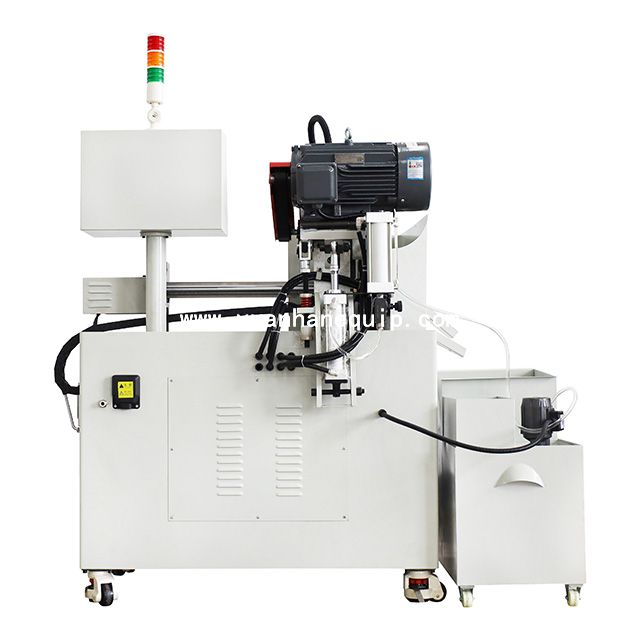

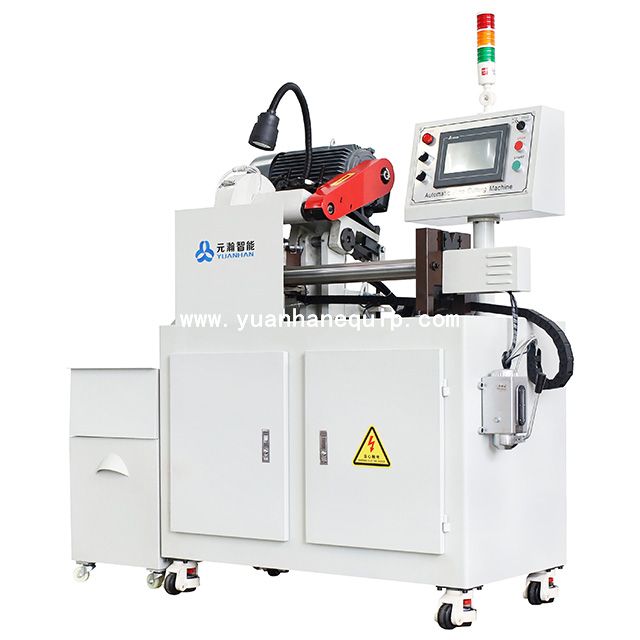

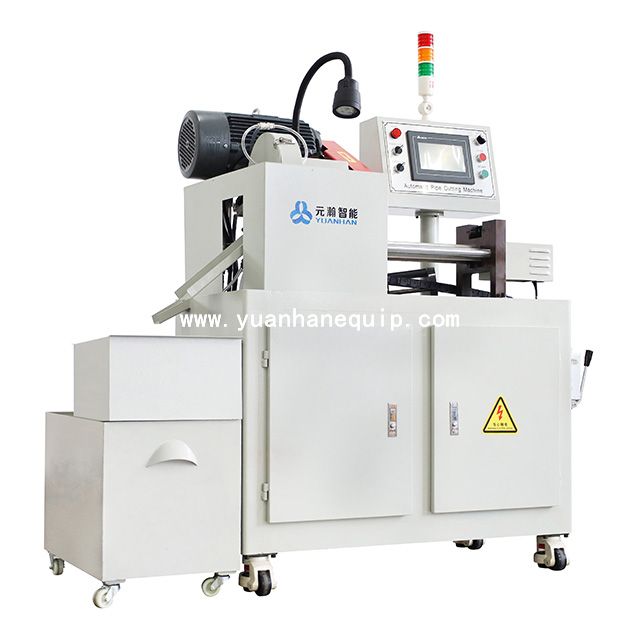

This is a fully automatic cutting machine for processing of metal rod, metal pipe, brass tube, aluminum rod, plastic rod and much more.

Model:
  • YH-500CNC
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • Cutting material: copper (aluminum) material like metal rod, metral pipe, brass tube, aluminum rod, etc.

  • Delta PLC + touch screen (Delta)

  • Siemens four-stage motor

ModelYH-500CNC
Control formDelta PLC + touch screen (Delta)
Main motorSiemens four-stage motor
Main motor power3.0KW
Servo accuracy0.001mm
Travel range480mm
Cutting materialcopper (aluminum) material
Material sizeabout 6000mm
Diameter range0.6mm-48mm
Cutting accuracy±0.03mm
Product verticality±0.01mm (adjustable verticality)
Cutting surfacesmooth without burrs
Cutting size range1mm-2,000mm
Cutting quantity range1-15 pieces
Die change time0.3-1 minutes
Tungsten steel saw bladeØ180mm* 1.0mm * 100T / Ø150* 0.8mm * 120T
Cutting width1.0 mm/0.8 mm





×
