Kunshan Yuanhan Electronic Equipment Co., Ltd.

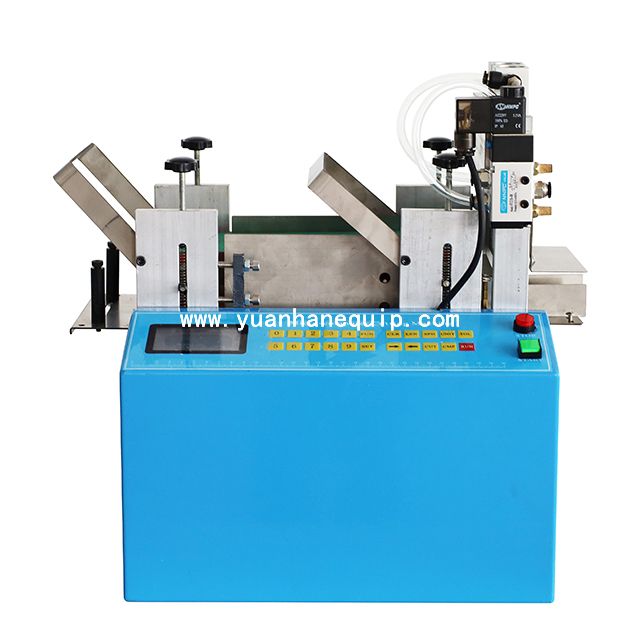

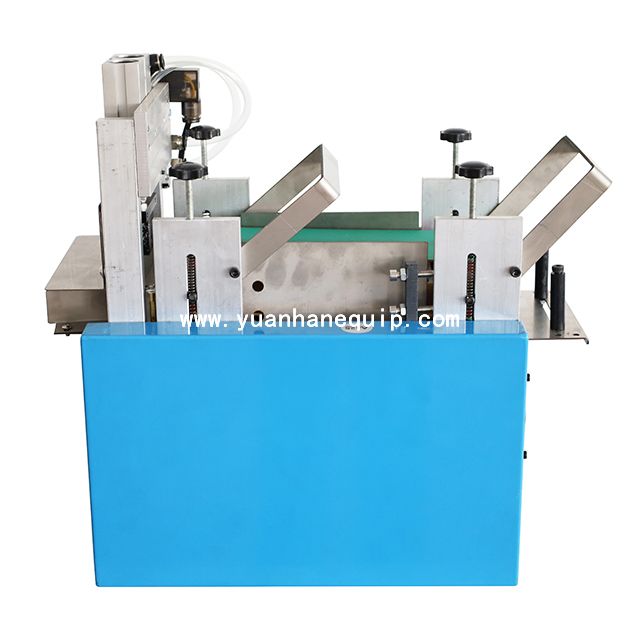

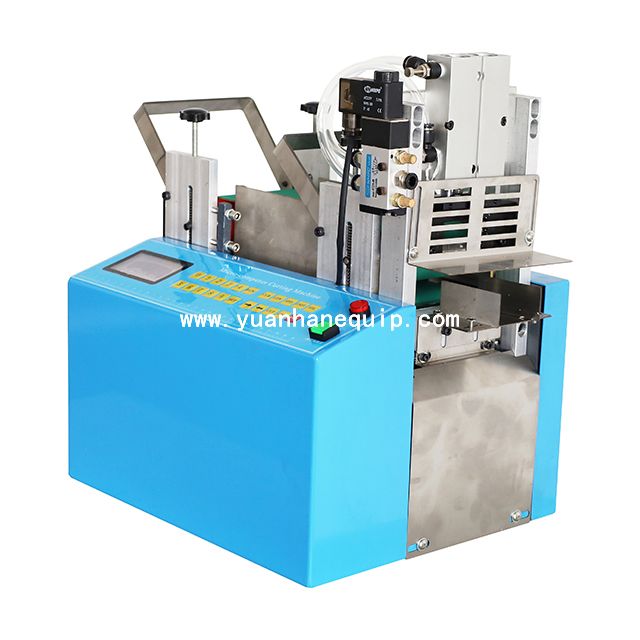

EPDM Foam Hose Cutting Machine

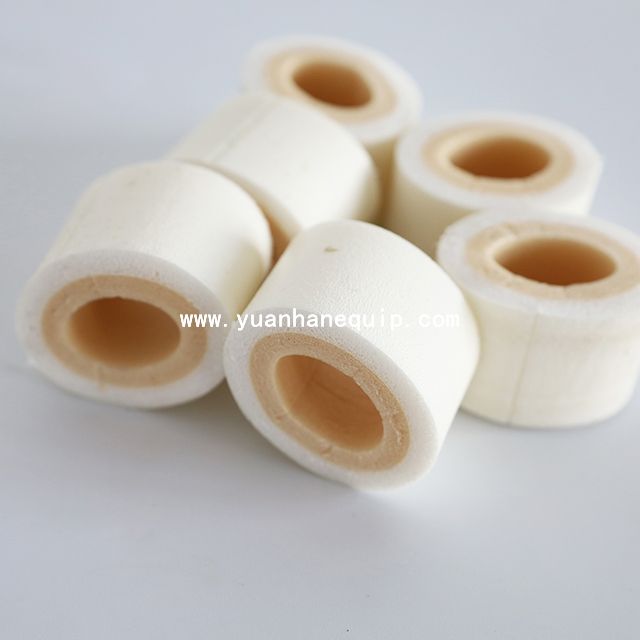

This fully automatic hose cutting machine is specially used for cutting soft tubes, such as EPDM foam hoses, rubber foam tubes, etc.

Model:
  • ZCUT-100S
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • Suitable for cutting soft tubes, such as EPDM foam hoses, rubber foam tubes, etc.

  • Max. cutting OD: 25mm

  • High efficiency and high accuracy: up to 150 times per minute;

  • Cutting type: Cold cutting with a durable cold knife;

  • Automatic operation: It works automatically only by setting length and quantity;

  • Automatic stop: It stops automatically if materials run out during operation;

  • Memory function: the previously set length, quantity and speed will not be erased even if power off & on;

  • We supply different models to fit your requests.

Model  ZCUT-100S
Cutting length (mm)1mm-99999mm
Cutting accuracy (mm)0.1mm
Max Hose Dia. (mm) 25mm
Cutting speed(p/min)up to 150 pcs/min
Knife typecold knife
Voltage/ frequency(V/Hz) 110V/220V 50Hz/60Hz
Rating Power500W
Dimension (mm)430×300×480(LxWxH)
Weight30kg


×
