Internally Mounted Pipe Beveling MachineInternally Mounted Pipe Beveling Machine

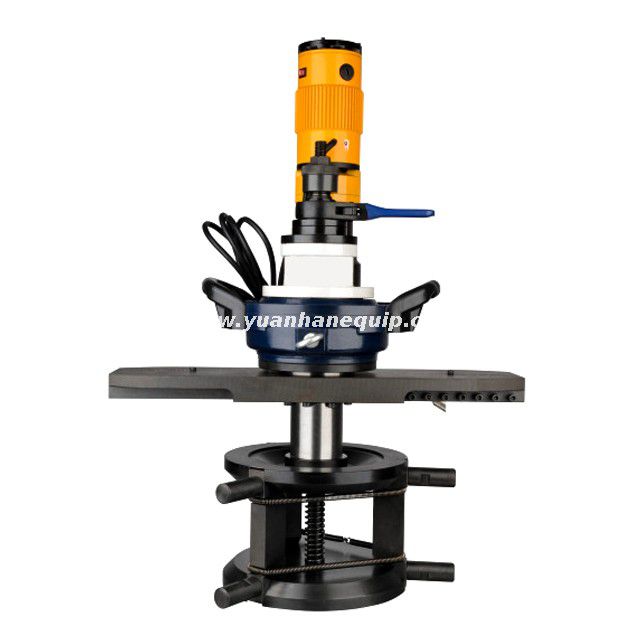

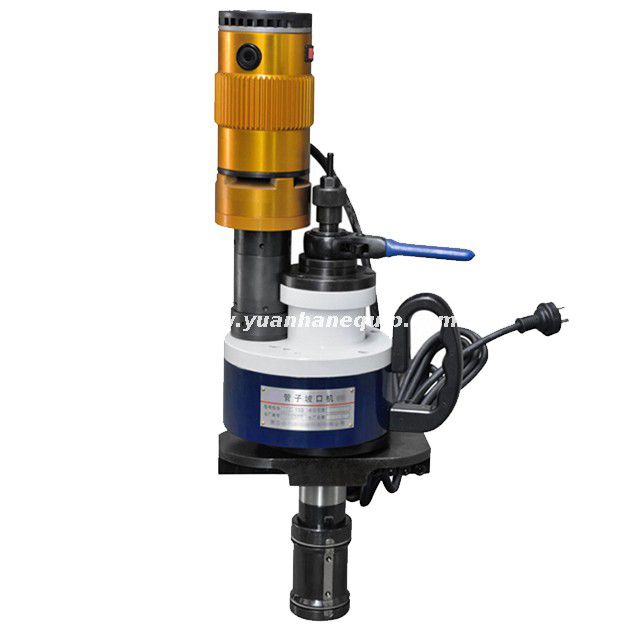

This internally mounted pipe beveling machine is lightweight and portable. It is used to bevel the end face of a pipe. The machine includes a supporting assembly positionable within the pipe for securely fastening the machine to the pipe in response to the application of rotary driving power to the machine.

Model:
  • YH-XT
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • An internally mounted pipe beveling machine for beveling the end face of a pipe.

  • Includes a supporting assembly positionable within the pipe for securely fastening the machine to the pipe in response to the application of rotary driving power to the machine.

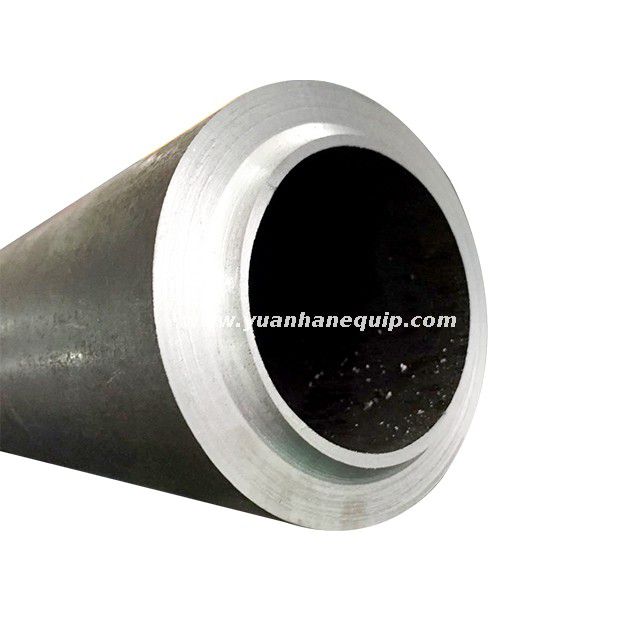

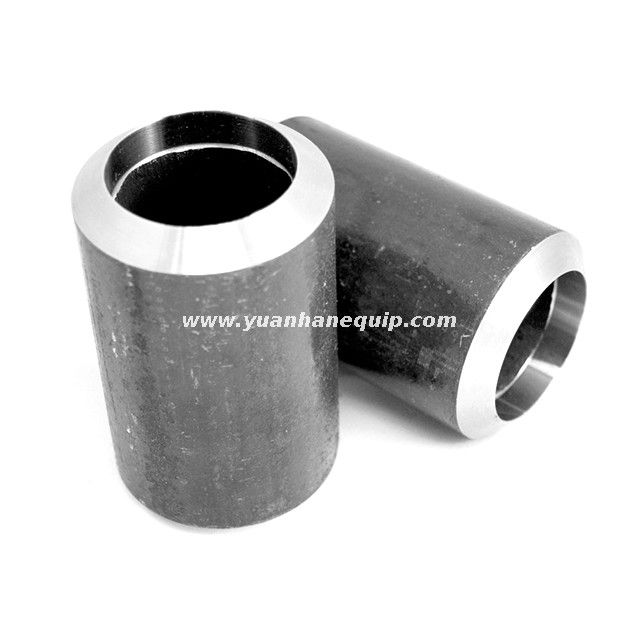

  • This machine can process the grooved flanges, chamfers and chamfers of U and V welds of carbon steel, stainless steel, alloy steel and other materials. It can also process the welded convex flange.

  • Good quality of beveling, fast speed, easy operation, easy alignment, large cutting force, wide range of processing.

  • The cutting amount can be finely adjusted, the groove angle can be arbitrarily selected from 0° to 45°, and the automatic feeding can be achieved.

  • Chamfer blade installation or adjustment takes only a few seconds.

Model

YH-XT1

YH-XT3

YH-XT6

YH-XT10

YH-XT-II10

YH-XT14

YH-XT-II14

YH-XT24

Pipe inside dia.

(mm)

18-25

28-89

65-159

80-273

80-273

150-356

150-352

300-630

Wall thickness

(mm)

1.5-15

1.5-15

3-20

4-20

15-75

4-20

15-75

4-20

Rotating speed

(r/min)

58

55

35

16

16

14

14

10

Weight (kg)

7

9

18

39

42

47

50

56



×
