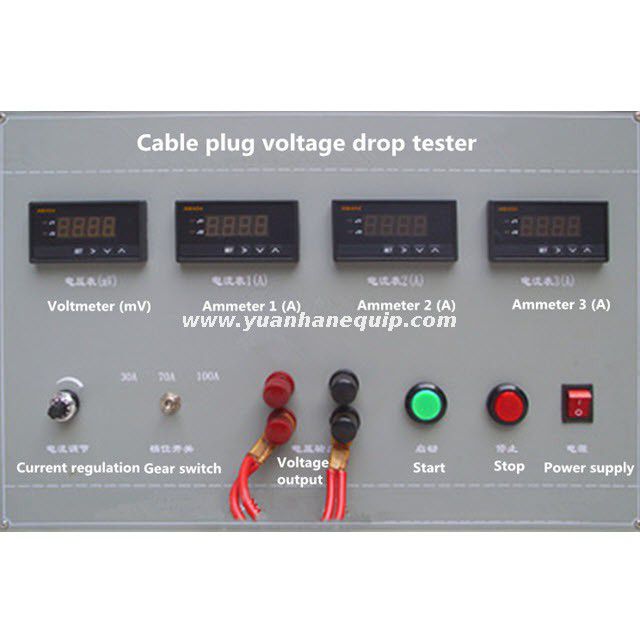

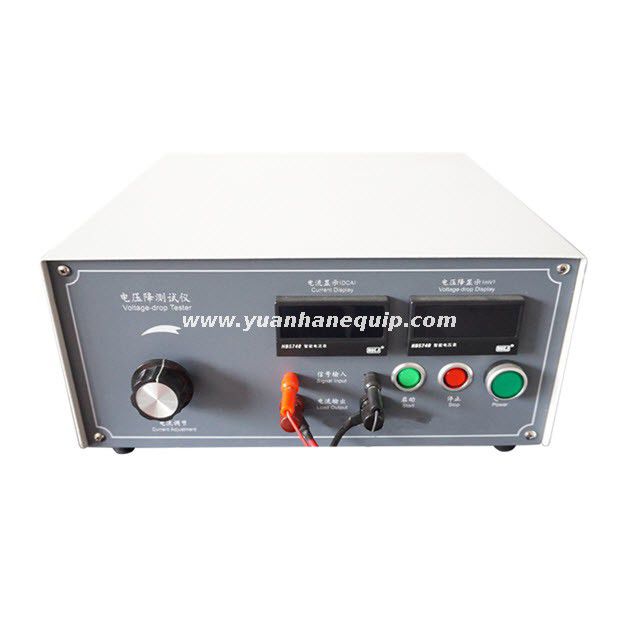

Plug Voltage Drop Tester

The tester specializes in measuring the voltage drop between a non-reconnectable plug pin and a similar wiring port such as a connecting wire, so as to judge the crimping quality of the terminal.

Model:
  • YH-8708
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • Test Standard: IEC884-1GB2099.1VDE0620QCT-29106-2014

  • This voltage tester is suitable for measuring the voltage drop of non-reconnectable plug pins and connecting plug lead wires and other similar wiring ports, so as to judge the quality of the wiring port, and also check the disconnection of the plug wire after completing the number of bending tests specified by the standard .

  • It is also suitable for measuring the voltage drop test of related products such as switch contacts, relays, switches, wire harnesses, crimp terminals, connectors and other related products.


ModelYH-8708
Load current0-40A/100A, continuously adjustable
Voltage drop range0-200mV
Power

AC220V/50Hz (110V customizable)


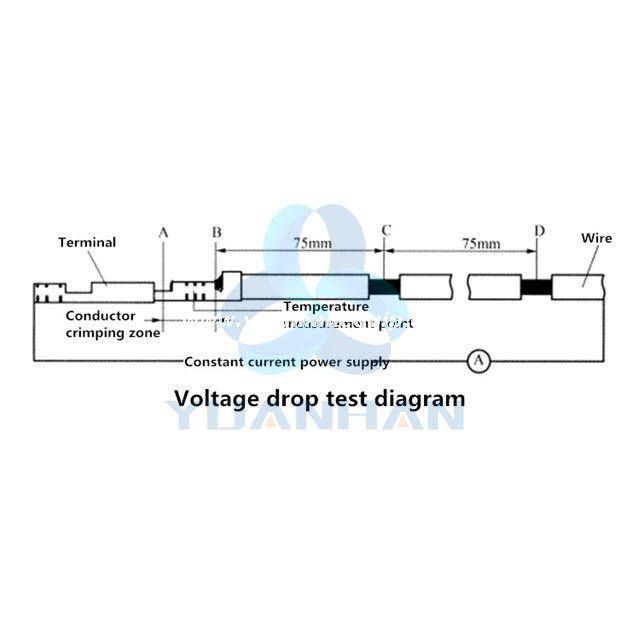

Voltage drop in the conductor crimp area

Nominal cross section of cable mm2Test current (A)Voltage drop mV
0.2212
0.3522.5
0.553
0.75106
1158
1.52011
22114
2.53016
33217
43518
53720
64020
105025
166015
257018
358020
509023
7010025




×
