Wire Crimp Pull TesterWire Crimp Pull Tester

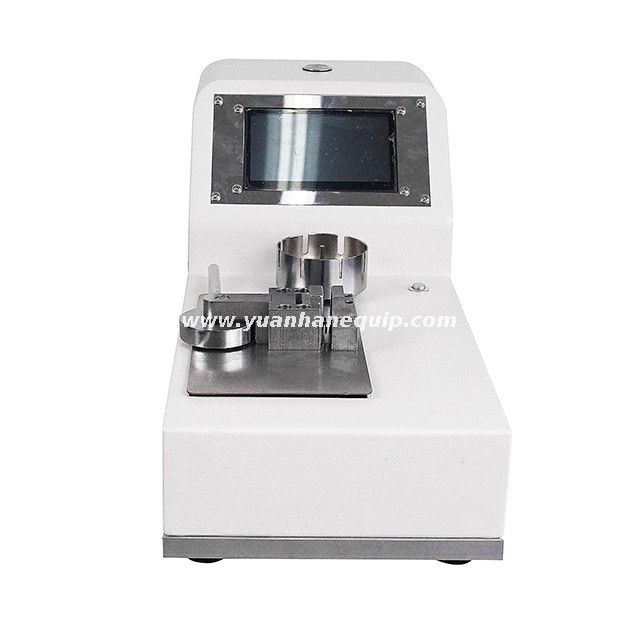

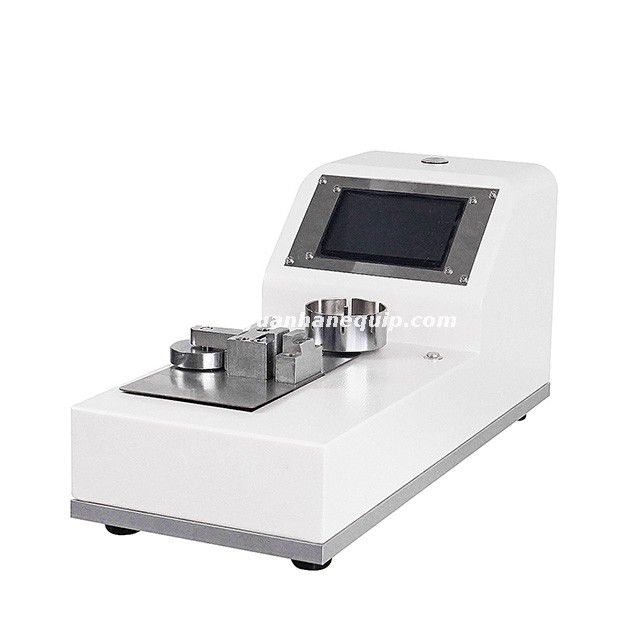

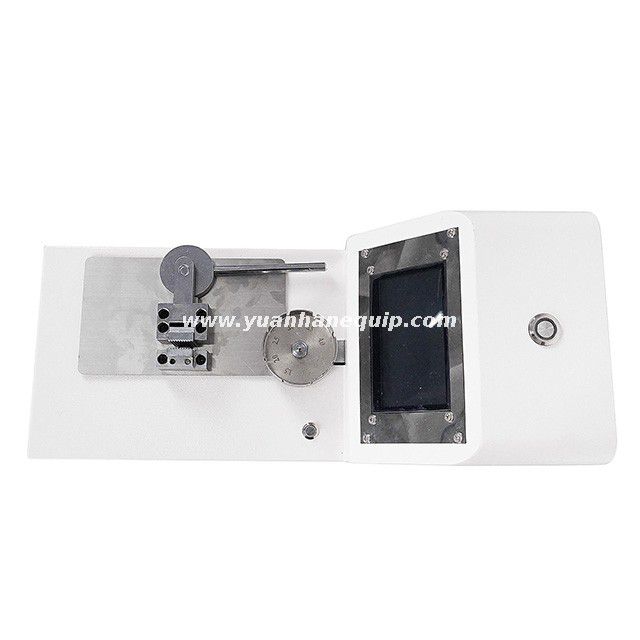

This is an automatic wire crimp pull tester, which is designed to measure tensile strength of components up to 500N/1000N.

Model:
  • YH-TT05
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • Function: peak force, non-destructive test, UL test values for pull out.

  • Motor driven, color touch screen operation, automatic measurement and display of the tension value, simple operation and accurate measurement.

  • It can test the peak tensile force, and can also set the upper limit of tensile force and test time for non-destructive tensile test.

  • With the self-developed test software, the peak graph displays the test process, communicates with the computer and printer, and prints in real time.

  • The data center can store 16 programs to meet the testing requirements of commonly used wires.

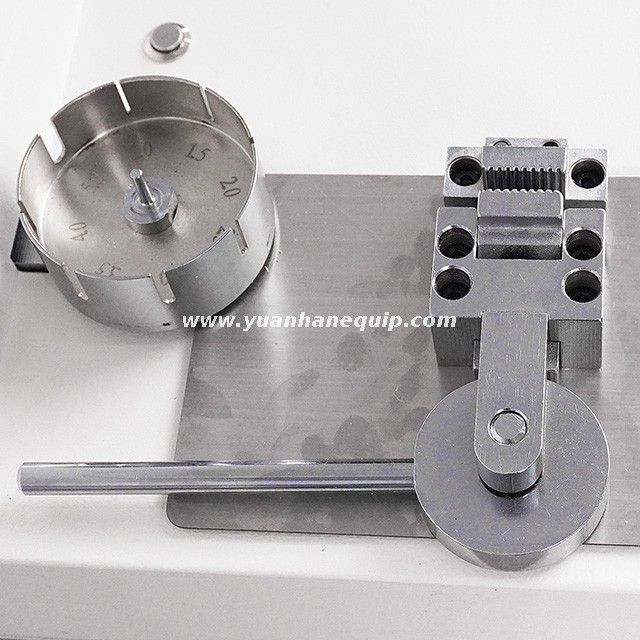

  • The chuck can accommodate various sizes of wires and terminals, and special wire specifications can be customized.

Model YH-TT05
Test range0~500(N)/0~50(Kg), 1000N can be customized
Test accuracy±0.04N
Test speed10-800mm/min
Test tolerance0.04N
Power100W
Program storage16 groups

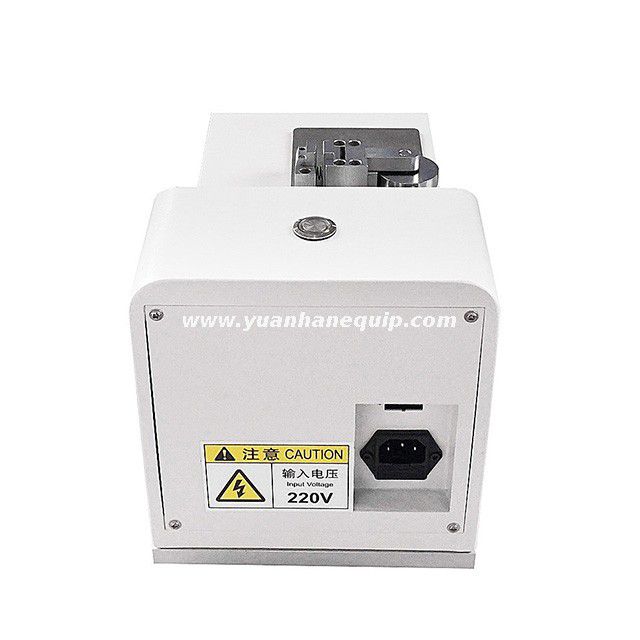

Power supplyAC220V, 50/60Hz
Dimensions(L×W×H) 430×180×210mm
Net weight10KG


×
