Two-row Connector Wire Sequence Detector Machine
Two-row Connector Wire Sequence Detector Machine
Two-row Connector Wire Sequence Detector Machine
Two-row Connector Wire Sequence Detector Machine
Two-row Connector Wire Sequence Detector Machine
Two-row Connector Wire Sequence Detector Machine
Two-row Connector Wire Sequence Detector Machine

Two-row Connector Wire Sequence Detector MachineTwo-row Connector Wire Sequence Detector Machine

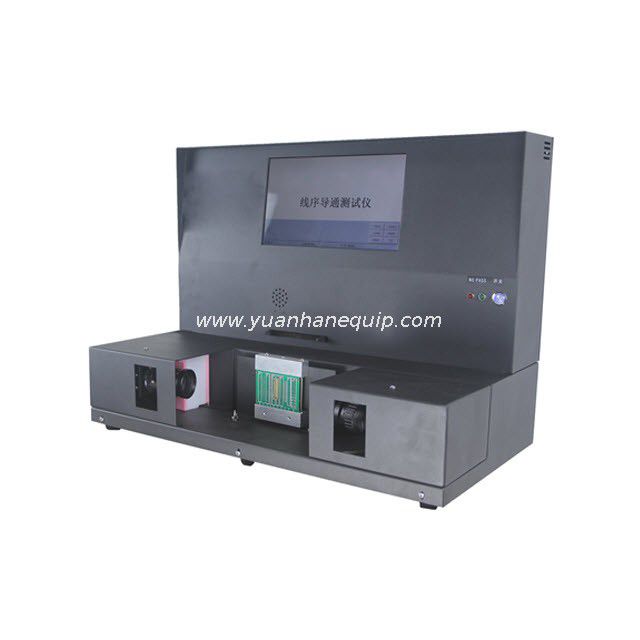

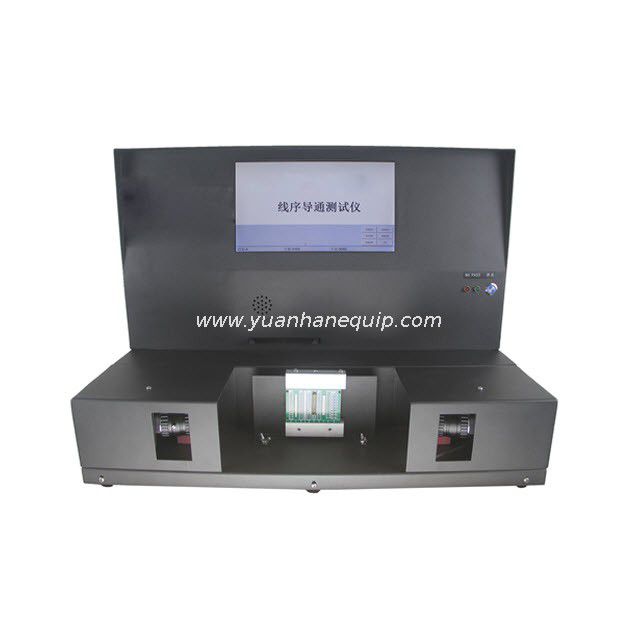

The two-row connector wire sequence detector machine can detect the conduction performance, and color sequence of single-row or double-row wires.

Model:
  • YH-DC2
Brand:
  • Yuanhan
Inquire
Share to:
Features
Specifications

  • Function: detect the conduction performance, detect color sequence of the wire harness

  • Put into the fixture to trigger automatically, no external switch is needed to trigger

  • Using high-performance industrial cameras, the imaging effect is very good and the detection accuracy is high.

  • Unit detection time <0.2S

  • No baffle is needed, and the product is feasible as long as it is in the detection area.

  • Standard system, stability, strong versatility, all double-row wiring harnesses can be tested.

  • Strong anti-interference ability, characters and color circles on the wire can be detected without affecting the detection results.

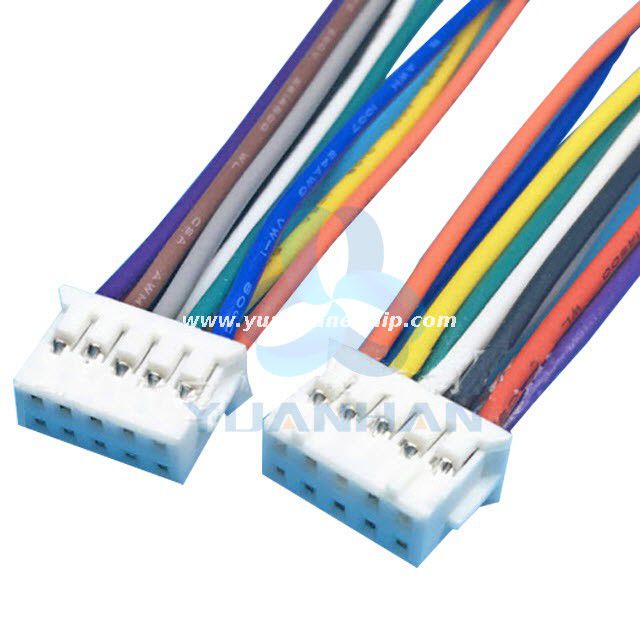

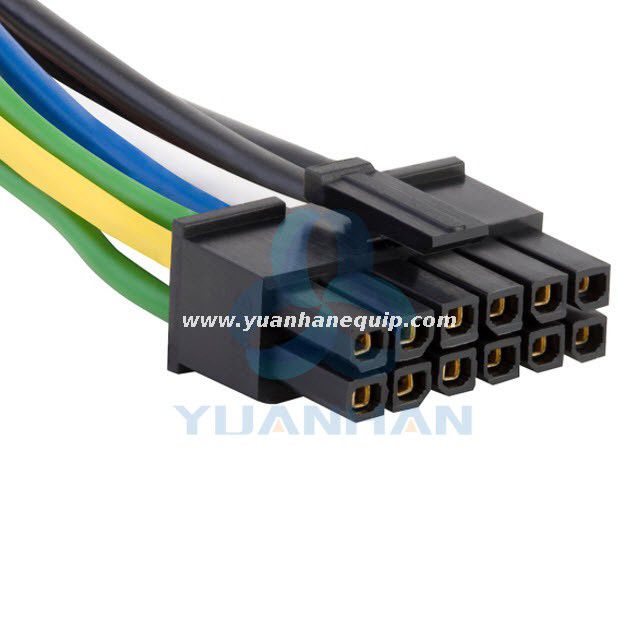

  • The color tester can detect the color sequence of single-row or double-row wires with a width of less than 48mm.

  • The continuity test can detect 64 points of short open circuit and misalignment.

  • Color test and continuity test can support single selection and multiple selection.

  • The test results are displayed on the screen, indicator lights, and voice prompts.

  • The test parameters can be archived.

Model YH-DC2
Unit detection time <0.2S
Input

100~120VAC 2A

200~240VAC 1A

50/60Hz

Power consumption 30W
