Kunshan Yuanhan Electronic Equipment Co., Ltd.

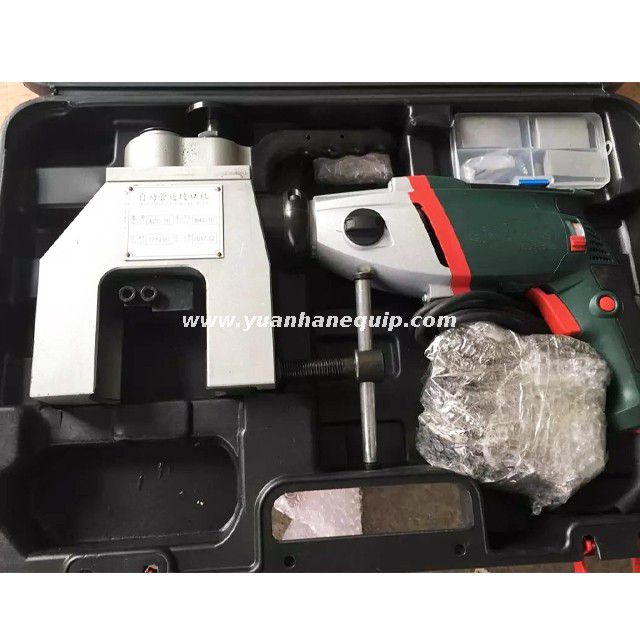

Portable Steel Pipe Bevelers (Externally Mounted)

The portable externally mounted steel pipe beveling machine is specially designed for processing small diameter pipes.

Model:
  • XZC-63
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • Adopts external mounter clamping device, which is accurate in positioning and convenient for installation and removal.

  • Equipped with imported German Metabo motor and has superior quality.

  • Automatic advance and retreat knife design, greatly reducing labor intensity and improving machine life

  • Fast centering, large cutting force, and adjustable processing range. Grooves of various shapes can be completed in one operation.

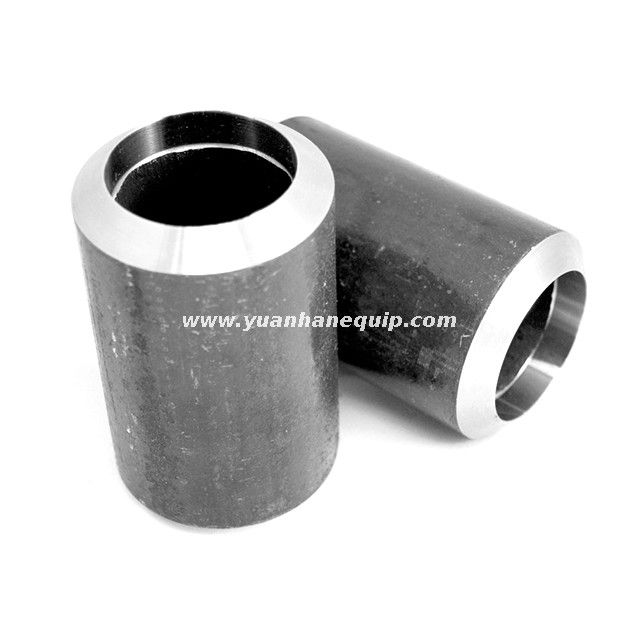

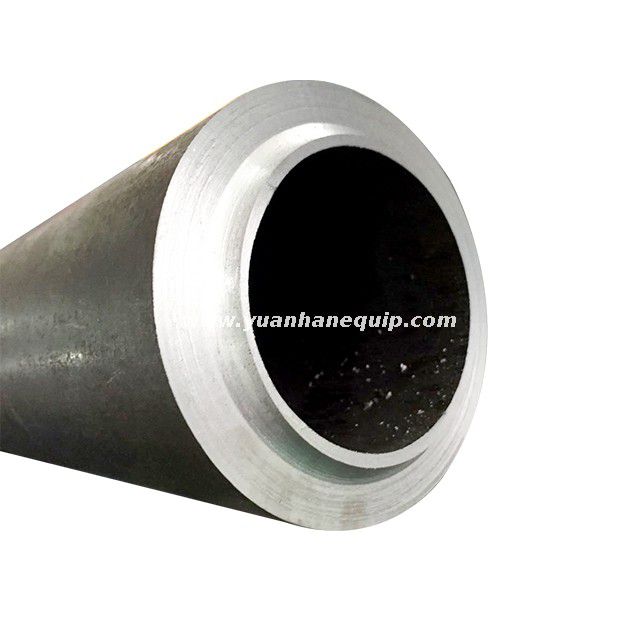

  • Fast speed, cold cutting processing method does not change the material of the pipe, the processing surface is smooth, and can be directly used for welding.

ModelXZC-63
Cutting range28-63mm
Cutting Thickness12mm
Weight17kg
Dimensions600*500*200mm
Voltage220v
Rated power1100w





×
