Stainless Steel Tube Flat Mouth Machine
Stainless Steel Tube Flat Mouth Machine
Stainless Steel Tube Flat Mouth Machine
Stainless Steel Tube Flat Mouth Machine

Stainless Steel Tube Flat Mouth MachineStainless Steel Tube Flat Mouth Machine

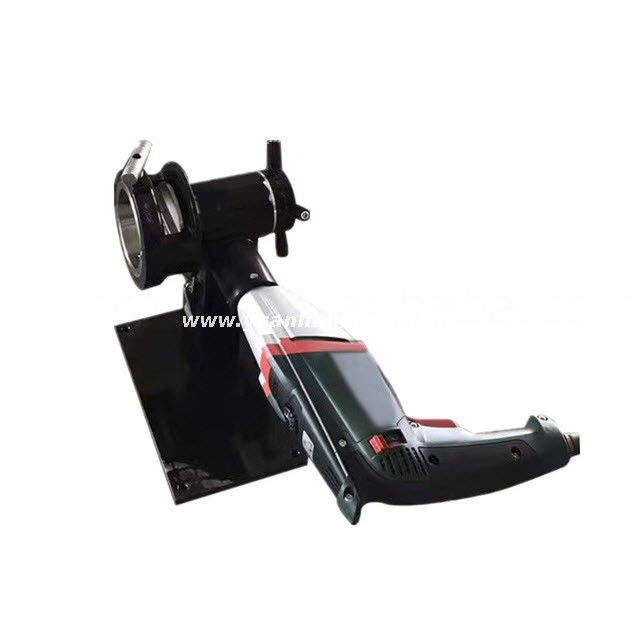

This is an inner mounted pipe flat-mouth machine. More than processing of carbon steel pipes, stainless steel pipes, and alloy steel pipes, the machine can also process the convex flange after welding.

Model:
  • XF1.0/XF1.5/XF2.0/XF2.5/XF3.0/XF4.5/XFA4.5
Brand:
  • Yuanhan
Inquire
Share to:
Features
Specifications

  • Fast speed, simple loading and unloading operation, easy centering, large cutting force, wide processing range

  • The amount of cutting can be finely adjusted and can be automatically fed

  • Small size, beautiful appearance, simple operation, high precision and good performance

  • Blade installation or adjustment takes only a few seconds

  • More than processing of carbon steel pipes, stainless steel pipes, and alloy steel pipes, the machine can also process the convex flange after welding.

  • Double power

  • Electric type: driven by high-performance motor, power 1-2.5 Kw,

  • Pneumatic type: driven by air motor, air working pressure 1-2.5Kp, no spark during work, suitable for flammable, explosive and other work occasions

ModelPipe ODWall thicknessVoltagePowerWeightDimension
XF1.03mm-25.4mm0.5-3mm110/220V300w4.8KG500*280*180mm
XF1.53-38.1mm0.5-3mm110/220V300w5.1KG500*280*180mm
XF2.06-50.8mm0.5-3mm110/220V300w5.3KG500*280*200mm
XF2.59-63.5mm0.5-3mm110/220V300w5.4KG500*280*200mm
XF3.012.7-76.2mm0.5-5mm110/220V300w9.5KG400*320*240mm
XF4.512.7-114.3mm0.5-5mm110/220V300w19KG550*300*260mm
XFA4.512.7-114.3mm1-5mm110/220V300w29KG570*400*270mm
