Kunshan Yuanhan Electronic Equipment Co., Ltd.

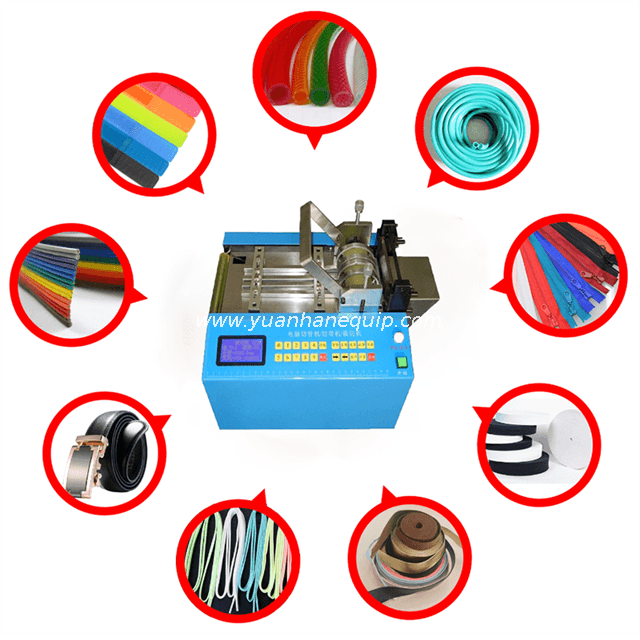

Universal Material Cutting Machine

A versatile and reliable machine for cutting to length of heat shrink tubes, fiberglass tubes, teflon tubes, silicone tubes, yellow wax tubes, PVC tubes, PE tubes, plastic tubes, rubber hoses, wire ropes and non-adhesive strip materials like belt loop, string, plastic zipper, elastic band, small webbing, etc. The higher power ZCUT-100ST and ZCUT-100GT are good for cutting wire and cable.

Model:
  • ZCUT-100S/ZCUT-100ST/ZCUT-GT
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • High efficiency and high accuracy: up to 120-150 times per minute;

  • Tolerance: +/- 0.5% of cutting length;

  • Cutting type: Cold cutting with a durable cold knife;

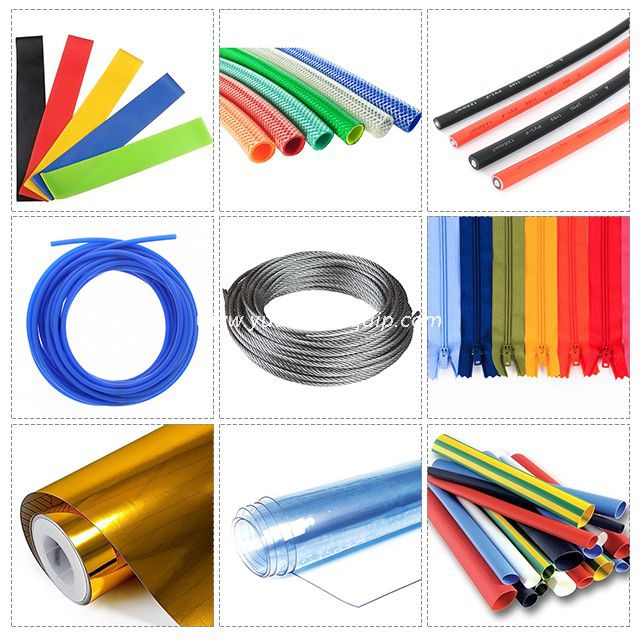

  • Suitable for cutting fiberglass tubes, teflon tubes, silicone tubes, yellow wax tubes, PVC tubes, PE tubes, plastic tubes, rubber hoses, wire ropes, electric cables, and non-adhesive strip materials like belt loop, string, plastic zipper, elastic band, small webbing, insulation paper, copper foil, copper sheet, nickel tape, cotton tape, etc.

  • Automatic operation: It works automatically only by setting length and quantity;

  • Automatic stopper: It stops automatically if materials run out during operation;

  • Memory function: the previously set length, quantity and speed will not be erased even if power off & on;

  • We supply different models to fit your requests.

ModelZCUT-100SZCUT-100STZCUT-100GT
Applicationplastic productgeneral metal productthick metal product
Available width95mm
Available thickness15mm
Cutting length1-100000mm
Knifecold knife
Power supply110/220VAC, 50/60Hz
Power500W900W1000W
Speed120 pcs/min150 pcs/min150 pcs/min
Weight30kg
Dimensions43*33*48cm


×
