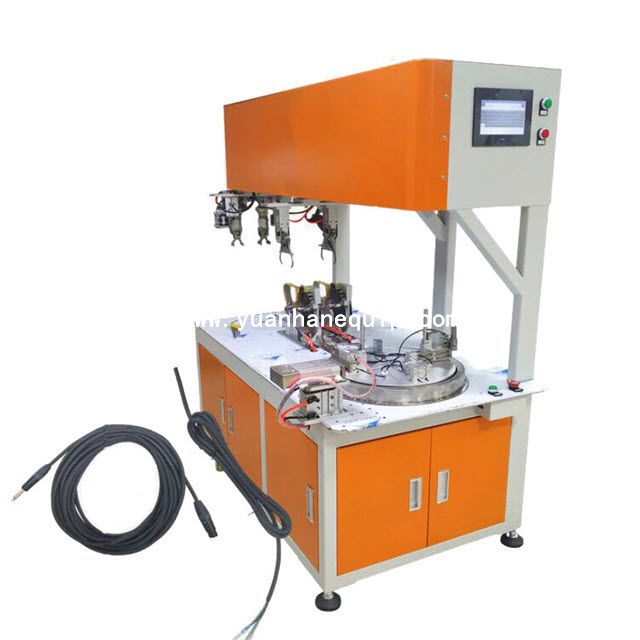

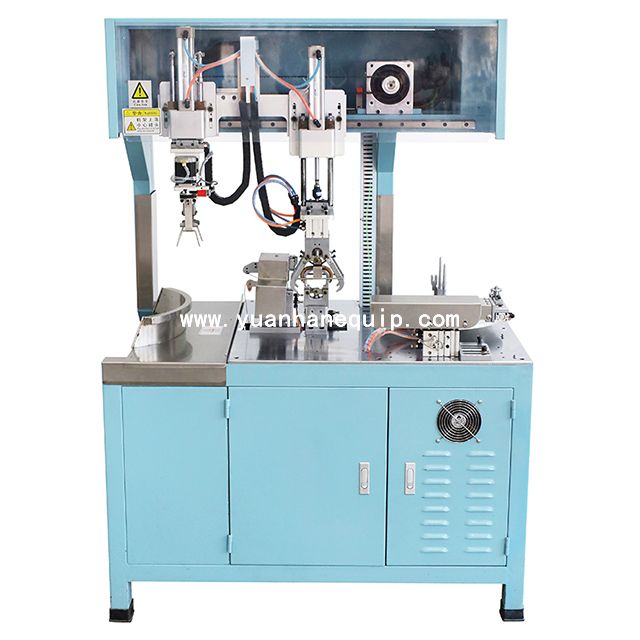

Automatic Cable Coil Winding and Binding MachineAutomatic Cable Coil Winding and Binding Machine

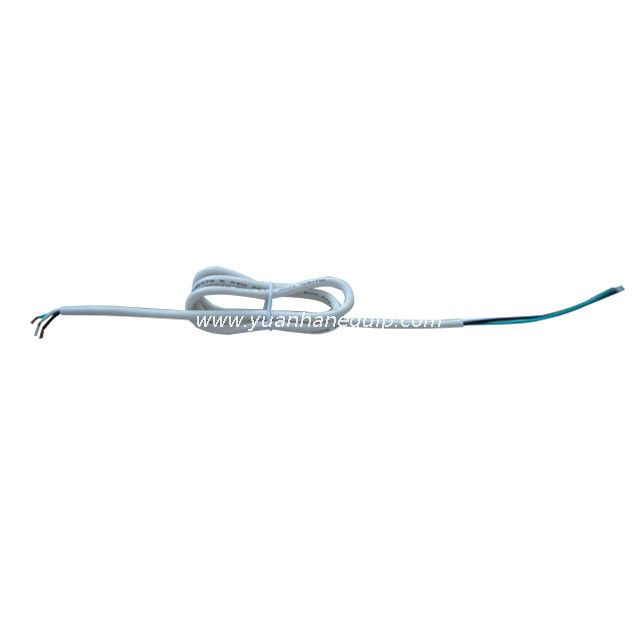

The automatic wire coiling and bundling machine winds wires into 8-shape coils and bundles the coil with one tie.

Model:
  • YH-81M
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • Winding 8-shape coils and bundling with one tie

  • Speed: up to 1500pcs/h, saving labor

  • Simple and easy to operate, easy to maintain

  • The finished product is beautiful, generous, neat and easy to pack

  • Ergonomic design to reduce fatigue

  • Adopts the original SMC cylinder imported from Japan and a full set of pneumatic components from Taiwan AirTAC

ModelYH-81M
Theoretical output1,500pcs/h (depending on the wire)
Winding distance110-300mm
Rod diameter48mm
Applicable outer diameterφ10.0mm (depending on the wire)
Head length0-100mm
Tail length0-500mm
Lap speedadjustable
Main motor1,000w double servo
Voltage210-240V 5A
Power consumption1.5 degrees in 12 hours
Air consumptionair consumption of ordinary peeling machine
Air pressure0.4-0.55Mpa
Dimension1,076*770*1,560mm





×
