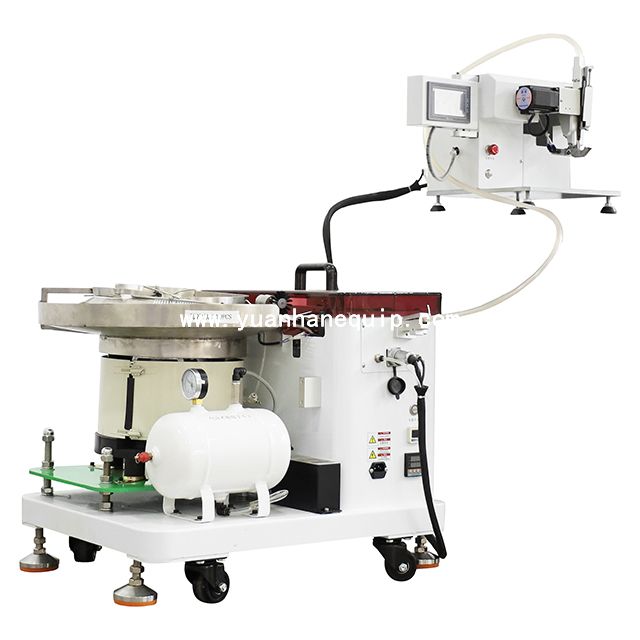

Semi-automatic Motor Stator Coil Bundling MachineSemi-automatic Motor Stator Coil Bundling Machine

This automatic bundling machine is specially used for motor stator coil tying. It can also be used for bundling other products. It’s convenient and easy to operate.

Model:
  • YH-PA25100M
Brand:
  • Yuanhan
Share to:
Features
Specifications

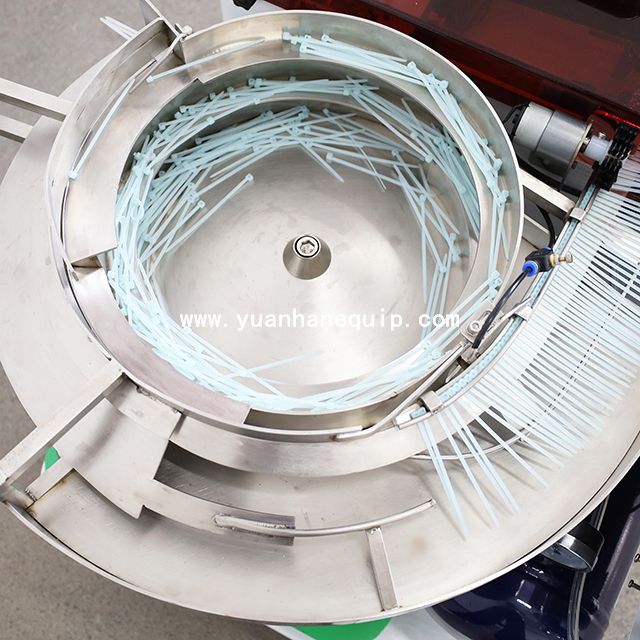

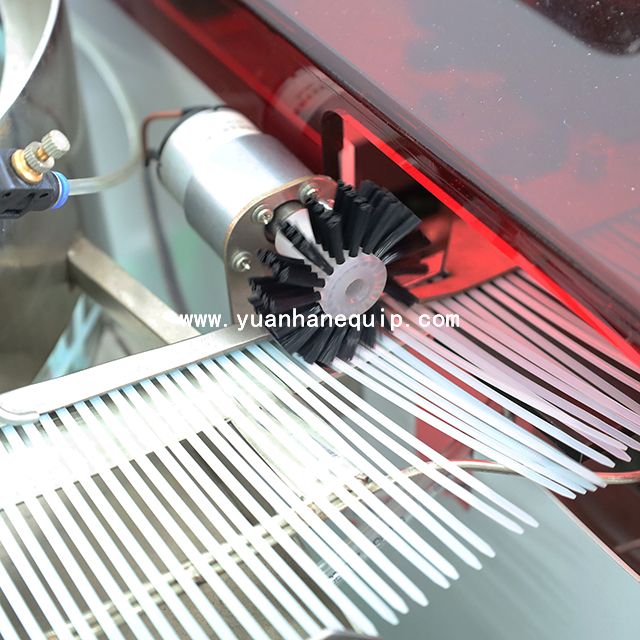

○ Put disordered bulk material ties into the vibrating plate at will, and the ties will be transfered to the gun head through the pipeline.

○ Step on the pedal to automatically complete all actions such as feeding, reeling, tightening, cutting, and discarding waste.

○ In 0.8 seconds, complete all actions such as feeding, reeling, tightening, cutting, and discarding waste, including auxiliary time. The whole cycle is about 2 seconds.

○ Waste materials are automatically collected in the waste box through a special recycling system (optional configuration).

○ The binding force or tightness can be adjusted.

○ PLC control system, touch screen display, simple and clear operation.

○ It can be used with manipulators to realize automatic cable tie in the automatic production line, or it can be fixed on the table as a desktop cable tie machine.

○ The whole machine has an automatic detection function to monitor each operation. Once an abnormality is found, the machine will immediately stop its action and give an alarm

○ Automatic detection of material blocking. If material blocking is found, the machine will immediately stop and give an alarm and a key clear function

○ To deal with different temperature differences in the area, the equipment is equipped with a temperature control system that can control the temperature of the cable tie.

Model YH-PA25100M
Cable tie specifications 2.5*100 mm (specific to the actual product)
Banding efficiency 0.8 S/PCS

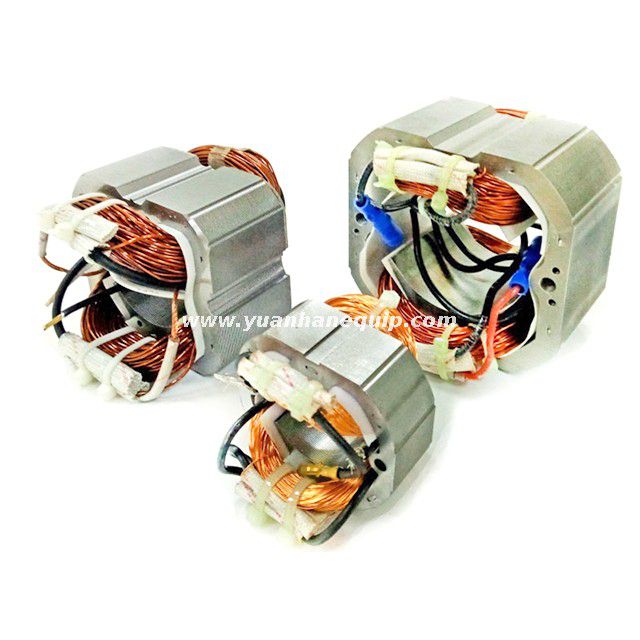

Applicable stator 54#, 60#, 70#, etc. (subject to the actual product)
Binding range subject to the actual product or customized
Vibration plate feeding quantity about 300 PCS/time
Host size L735*W825*H670 mm

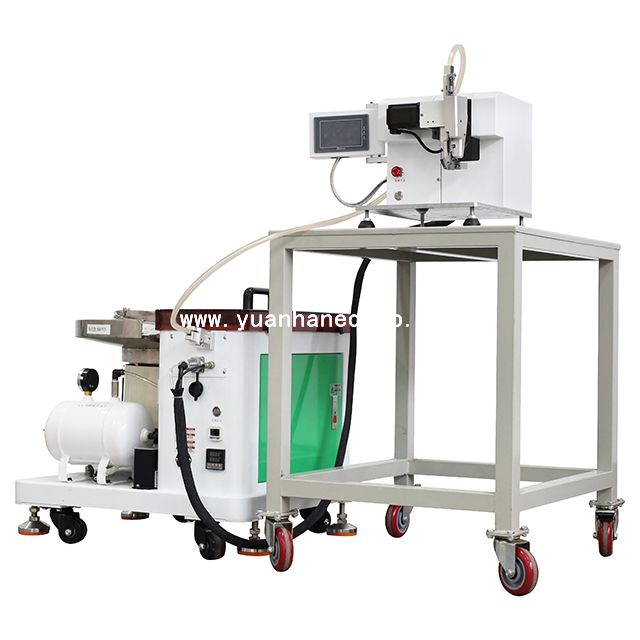

Cable tie table size L365*W300*H350 mm
Applicable air pressure 5~6 Kg/cm2
Applicable power supply 220V 50/60HZ
Whole machine weight about 150Kg (with casters, can be easily weighed)





×
