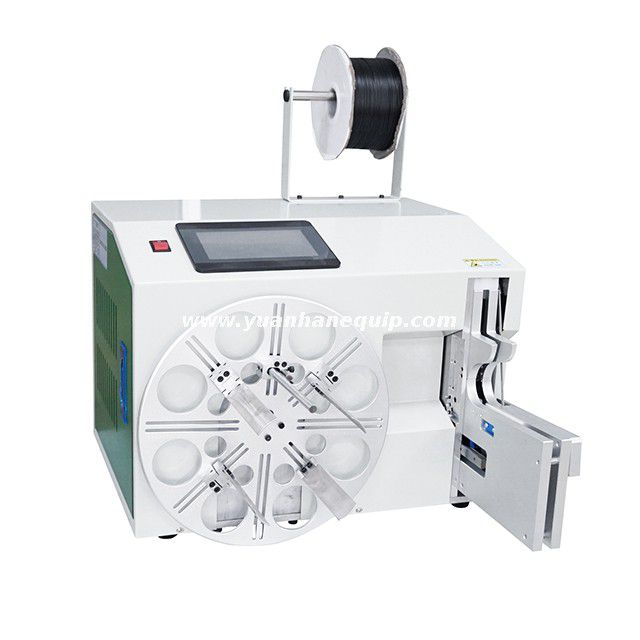

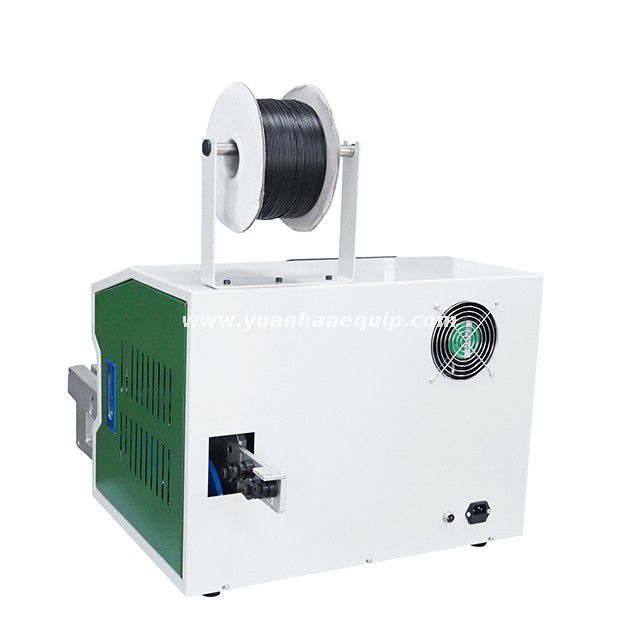

Automatic Cable Coiling and Twisting Tie Machine

This semi automatic cable coiling and twisting tie machine is suitable for winding and tying USB cable, headphone cable, AC/DC power cable, network cable, telephone cable, audio/video cable, HDMI cable, water hose, rubber tube and much more. It can customize the number of coils, the number of ties and the length of the cable tie.

Model:
  • YH-18-45-1
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • This semi automatic cable coiling and twisting tie machine is suitable for winding and tying USB cable, headphone cable, AC/DC power cable, network cable, telephone cable, audio/video cable, HDMI cable, water hose, rubber tube and much more.

  • PLC program control, LCD text parameter setting, easy to operate

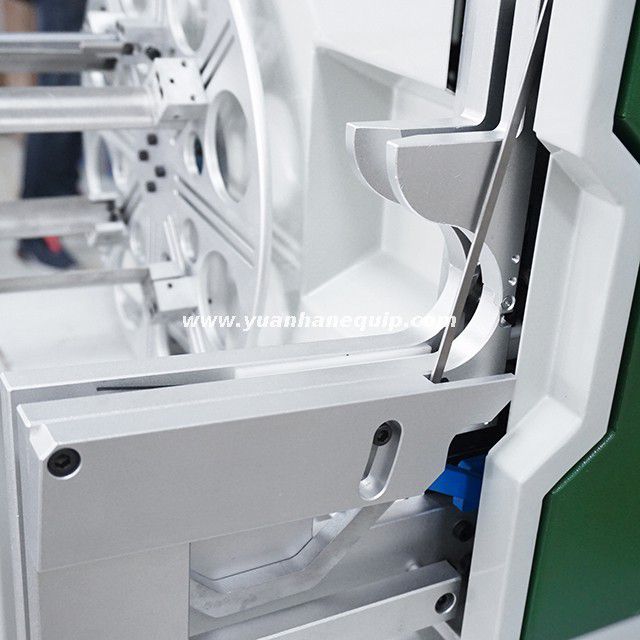

  • Using stepper motor, the worker only needs to put the wire on the winding port and step on the foot pedal once to start the automatic winding, and then put the winded wire at the tying port, and the machine can automatically tie the wire

  • This machine can customize the number of coils, the number of ties and the length of the cable tie

  • The motor is equipped with brake control, and the reel can be turned and stopped at a fixed point, which is very convenient for next operation

ModelYH-18-45-1
Bundling diameter18-45mm
Tying wire length120-190mm
Twist tie speed0.6s/pcs
Twist circle qtyadjustable
Tie wire specs1*2.9mm
Power supplyAC220V/110v
Power rating<100w
Dimension485*435*340mm
Net weight42kg


×
