Automatic Toroidal Coil Winding Machine

We bring forth a range of toroidal coil winding machines that are used in the winding applications of various types of coils, such as dimmer transformers, CTs, stabilizers, sound amplifiers, etc. These machines are manufactured using premium quality components using cutting edge technology. We also stringently test these machines to ensure them meet the international industrial norms.

Model:
  • YH-2630
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • Stable pulling force, small inner diameter, fast winding speed, no damage to the wire

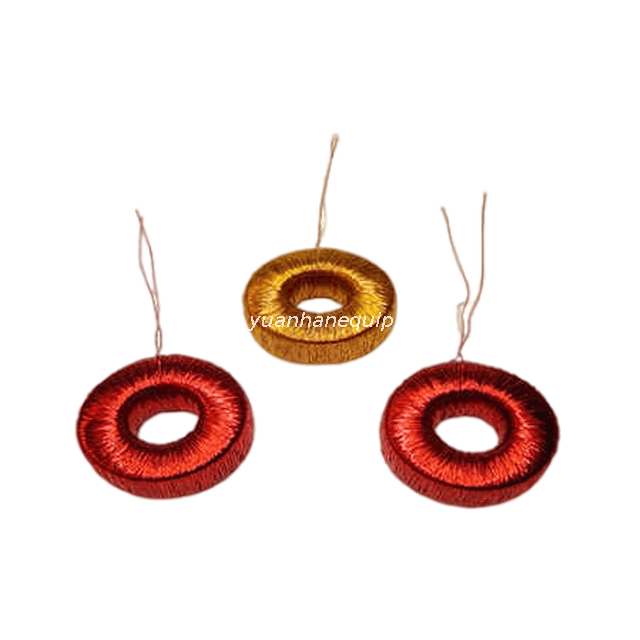

  • It is suitable for winding products with small diameter and many turns, such as primary and secondary windings of small toroidal transformers, primary windings of high-power toroidal transformers, and transformer coils.

  • The wire storage ring of different widths can be replaced on the same model to meet the wire storage capacity and complete inner diameter of products of different sizes, and the application range is wider.

  • Suitable for winding enameled copper wire, enameled aluminum wire, steel wire, nylon wire and more, which can be used for coil processing of products in various industries.

ModelYH-2610YH-2630YH-2631YH-2700YH-2800
Winding methodside slip typeside slip typeside slip typeside slip typeside slip type
Finished outer diameter30/80 60/12060/12060/20060/200
Minimum finished inner diameter18 30353550
Final completion height408080100120
Suitable winding diameter range0.12-0.50.2-0.70.2-0.70.2-0.750.35-0.9
Storage ring diameter180195 195230260
Storage ring width3-63-89-129-1512-18
Maximum speed800 rpm800 rpm800 rpm 700 rpm 600 rpm
Working voltage220V/50Hz220V/50Hz220V/50Hz220V/50Hz220V/50Hz
Dimensions480×450×600500×600×700500×600×700500×600×750500×600×800
Weight90 kg90 kg90 kg100 kg110 kg


×
