Water Purifier Tube Nylon Cable Tie MachineWater Purifier Tube Nylon Cable Tie Machine

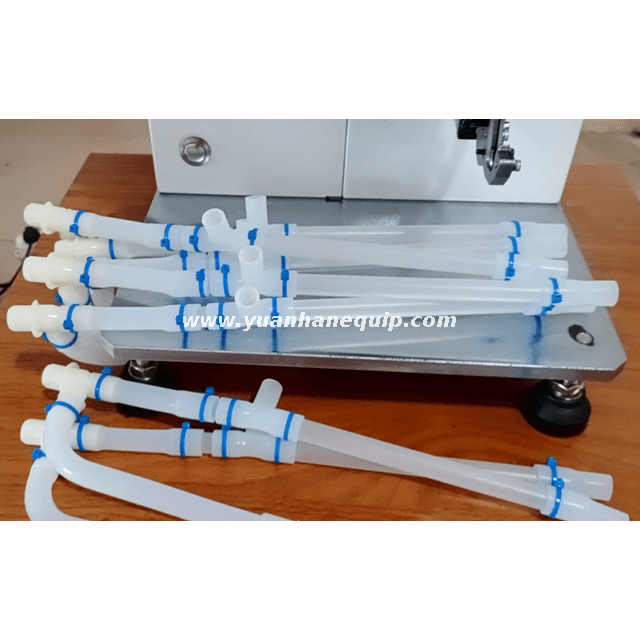

This automatic self-lock nylon cable tie bundling machine is specially used for binding water purifier tubings. It can also be used to bundle motor stator coils and other items.

Model:
  • YH-PA25100M
Brand:
  • Yuanhan
Share to:
Features
Specifications

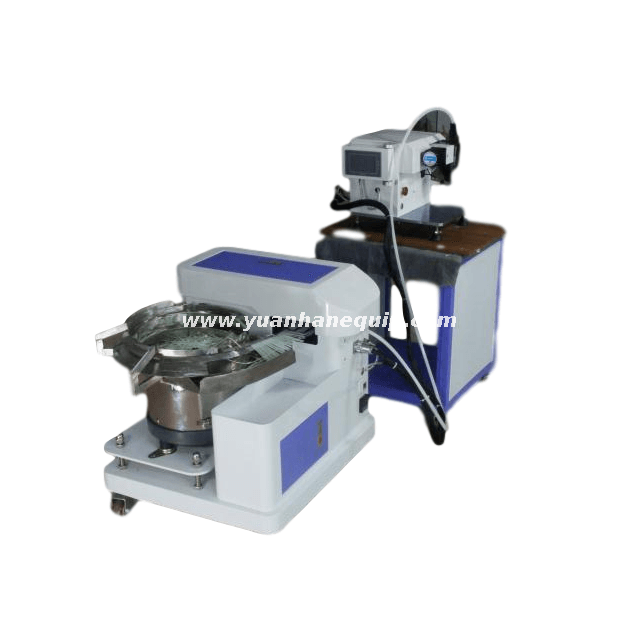

  • Put disordered bulk material ties into the vibrating plate at will, and the ties will be transfered to the gun head through the pipeline.

  • Step on the pedal to automatically complete all actions such as feeding, reeling, tightening, cutting, and discarding waste.

  • In 0.8 seconds, complete all actions such as feeding, reeling, tightening, cutting, and discarding waste, including auxiliary time. The whole cycle is about 2 seconds.

  • Waste materials are automatically collected in the waste box through a special recycling system (optional configuration).

  • The binding force or tightness can be adjusted.

  • PLC control system, touch screen display, simple and clear operation.

  • It can be used with manipulators to realize automatic cable tie in the automatic production line, or it can be fixed on the table as a desktop cable tie machine.

  • The whole machine has an automatic detection function to monitor each operation. Once an abnormality is found, the machine will immediately stop its action and give an alarm

  • Automatic detection of material blocking. If material blocking is found, the machine will immediately stop and give an alarm and a key clear function

  • To deal with different temperature differences in the area, the equipment is equipped with a temperature control system that can control the temperature of the cable tie.

ModelYH-PA25100M
Cable tie specifications2.5*100 mm (specific to the actual product)
Banding efficiency0.8 S/PCS
Applicable stator54#, 60#, 70#, etc. (subject to the actual product)
Binding rangesubject to the actual product or customized
Vibration plate feeding quantityabout 300 PCS/time
Host sizeL735*W825*H670 mm
Cable tie table sizeL365*W300*H350 mm
Applicable air pressure5~6 Kg/cm2
Applicable power supply220V 50/60HZ
Whole machine weightabout 150Kg (with casters, can be easily weighed)


×
