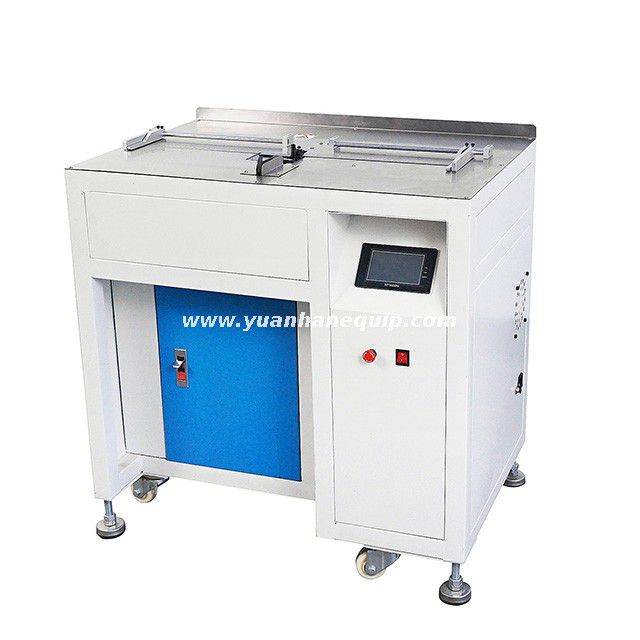

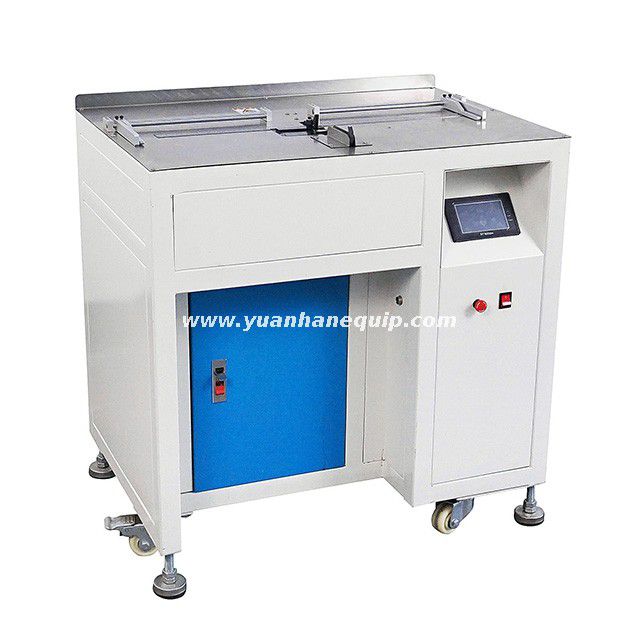

Semi-automatic Nylon Cable Tie Bundling MachineSemi-automatic Nylon Cable Tie Bundling Machine

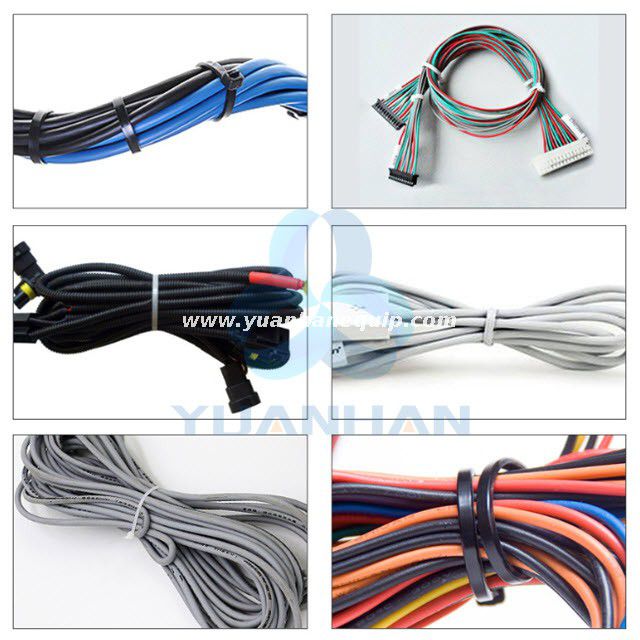

This is a semi-automatic nylon cable tie tying machine. It is widely used in automotive wire harness, appliance wire harness and other industries.

Model:
  • YH-900L
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • The operator only needs to put the wire /tube and cable tie to correct position and then press down the foot switch, the machine will finish all tying steps automatically.

  • PLC touch screen control, clear and intuitive, easy to operate.

  • The tightness and tying length can be set through program.

Model YH-900L
Applicable cable tie length 180 / 200mm
The max. tying diameter40 / 50mm
Max strapping force15N
Max. conduit diameter11mm
Productivity1200-1800pcs/hour
Power0.75kw
Air pressure0.6 Mpa
Noise level<70dBA
Electrical connectionAC 220/110V/50/60HZ 750W
Starting System Pedal
Weight125kg
Dimensions 1200*550*780mm


×
