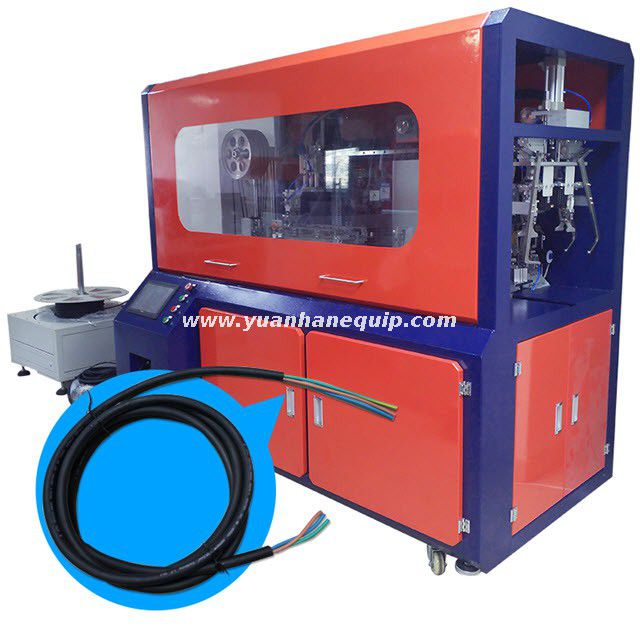

Wire Cutting Stripping and Twist Tie Machine

This is a fully automatic all-in-one wire cutting stripping and twist tie machine. The stripping length of both ends reaches 370mm, and the speed can reach 600 pcs / hour.

Model:
  • YH-CRT0
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • Function: wire cutting, stripping, coil winding and tying

  • Winding circles and tying twice, and the stripping length of both ends reaches 370mm

  • High performance, speed can reach 600 pcs / hour, saving labor

  • Automated large screen PLC touch screen control circuit, easy to operate, good work stability

  • The finished product after winding is beautiful, generous, tidy and easy to pack

  • Humanized design reduces workers' fatigue

  • Adopt a full set of imported original AirTAC cylinder

ModelYH-CRT0
Stripping length of both ends370mm
Wire Prefeeding70KG
Applicable materials

wires and cables

Speed20 seconds / pcs (2.5 sqmm 3C-8 meters wire)

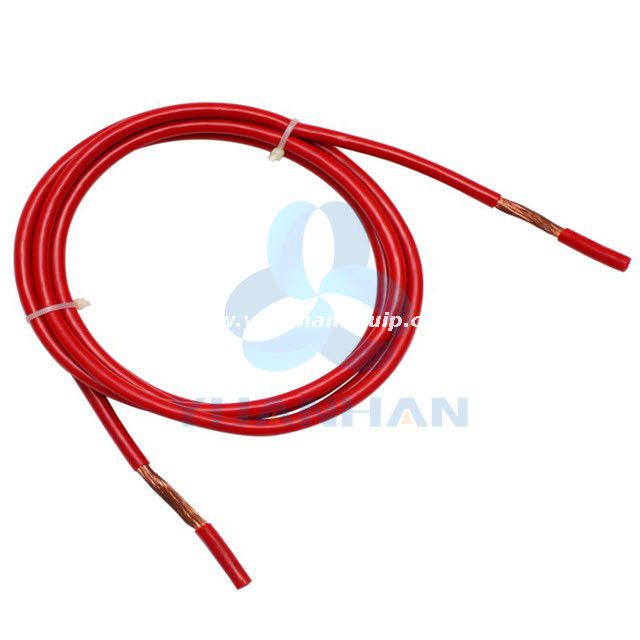

Finished appearancecircle and tying twice
Main motorservo motor and step motor
Theoretical yield600pcs/h
Voltage210-240V 5A
Inner diameter120-160mm
Power consumption12 hours 1.5 degrees
Applicable wire diameter6.0-1.2mm
Gas consumptionordinary peeling machine level
Finished wire coil diameter 45mm
Air pressure0.4-0.55mpa
Suitable cable tieencapsulated iron core, coreless
Dimensions1950*110*1800mm


×
