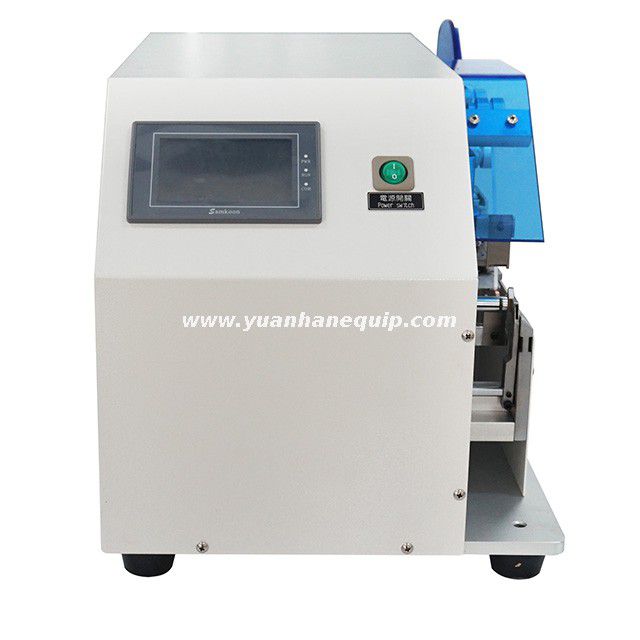

This is a copper foil tape wrapping machine for wire and cable. Applicable wire diameter: OD 2.6-5.8mm (above 8.0mm can be customized).
Model:
|
|
Brand:
|
|
This machine is suitable for automatic wrapping of copper foil, as well as automatic wrapping of tape or aluminum foil.

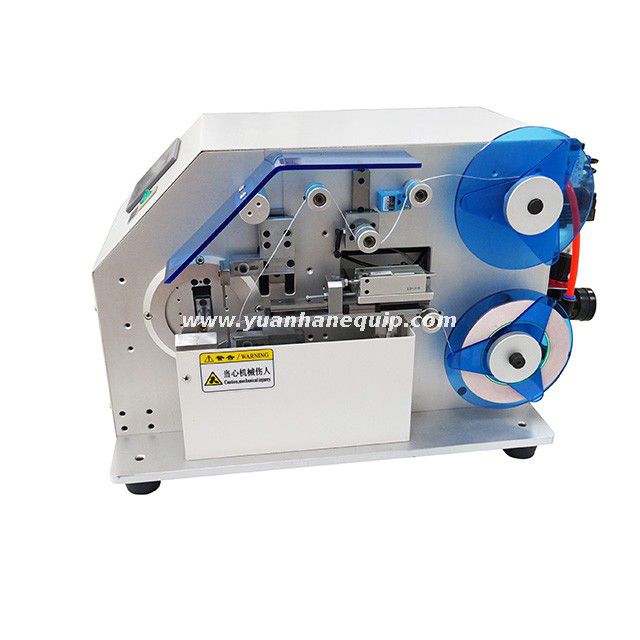

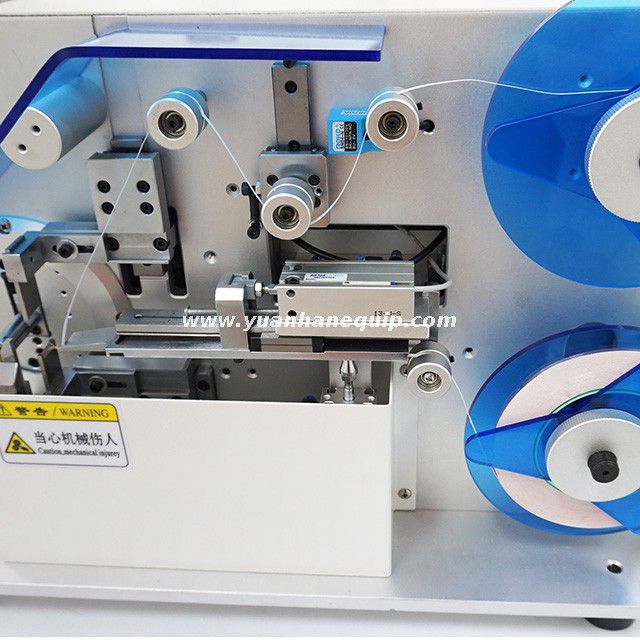

This machine automatically feeds the copper foil, cuts the copper foil, wraps the copper foil, and continuously completes the conveying of the paper. The copper foil wrapping effect is good, the efficiency is high, and the defect rate is low.
The whole machine adopts HIWIN linear guideway, high-precision stepping motor, with little wear, sensitive response and high efficiency.
The use of PLC programming controller to achieve high-precision control, industrial-grade motor high-subdivision drive mode, to ensure that the equipment runs accurately, smoothly and efficiently, and can work stably and reliably for a long time.
Model | YH-TP3 |
Wire stripping length | 10-30mm |
Applicable wire outer diameter | OD 2.6-5.8mm (above 8.0mm can be customized) |
Applicable copper foil width | 3.0-10.0mm |
Applicable copper foil length | 1-2 turns adjustable |

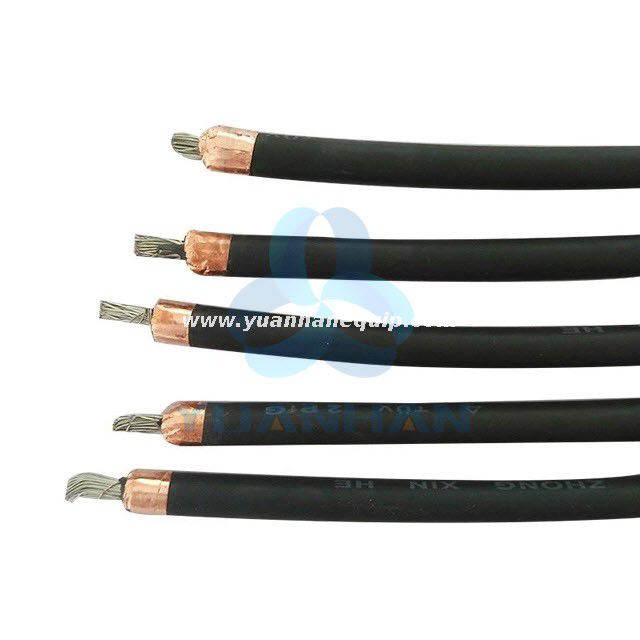

Applications | USB2.0, Type-C, HDMI, USB3.0, USB3.1, Apple data cable and other shielded wire |
Voltage | AC220V 50Hz |
Air pressure | ≥5KGf/cm2 |
Work efficiency | 1200-1500PCS/H (2.8seconds/time) |
Weight | 38KG |
Dimensions | 500*430*360mm |
