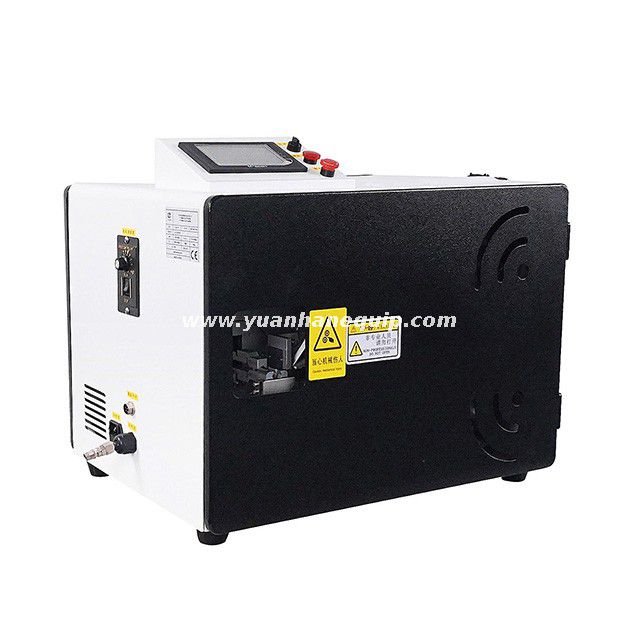

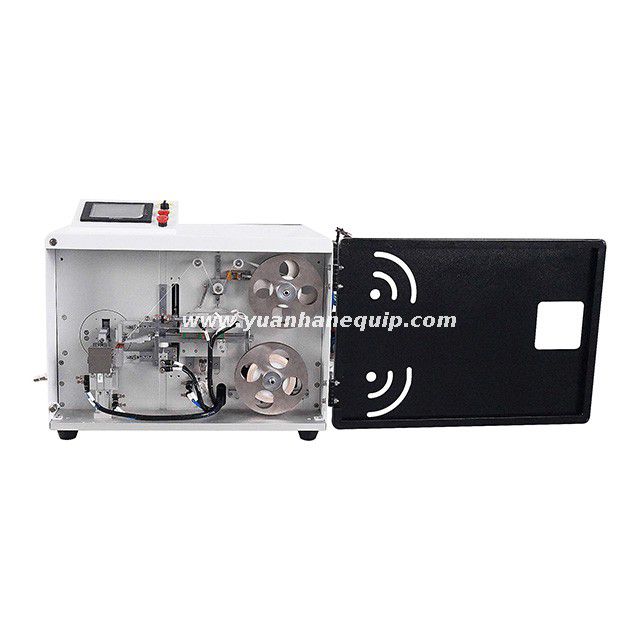

Copper Foil Tape Wrapping Machine for Wire and CableCopper Foil Tape Wrapping Machine for Wire and Cable

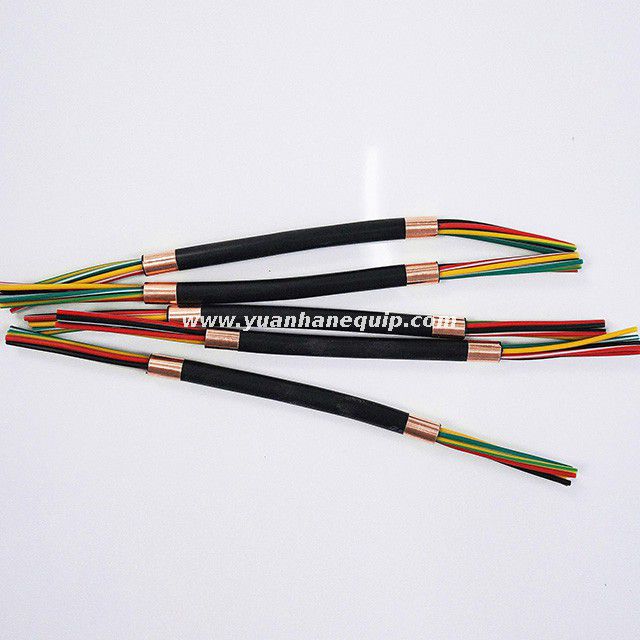

This is a copper foil tape wrapping machine for wires and cables. The enveloped diameter is up to 10 mm (only for round wires).

  • YH-TP2
  • Yuanhan
Share to:

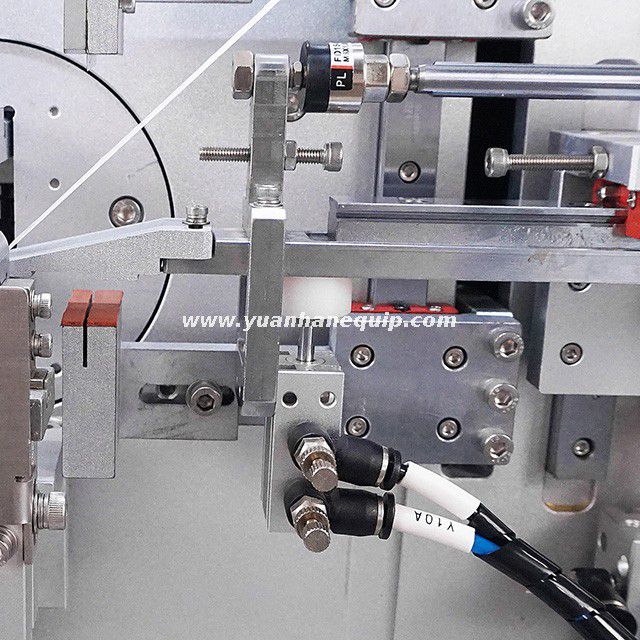

  • Silver linear slide, high-precision stepper motor, low wear, responsive, high efficiency

  • Using PLC programming controller to achieve high-precision control

  • The industrial-grade motor high subdivision drive ensures the equipment running accurate, stable, reliable and efficient

  • Friendly man-machine interface, full-featured, easy to operate, quick and clear, stable work

  • Total equipment operating cycle time: 1.2 S-2.0 S

Enveloped diameterup to 10mm (only for round wire)
Available copper foil tapethe width is up to 12mm (the copper foil tape must have two layers and one layer of copper foil is used for scrap recycling)
Efficiency1200 - 1500pcs/h
Power supply220V/50Hz 800W
Air sourceNo less than 5KGf/cm2
Dimensions550 x360x390mm
